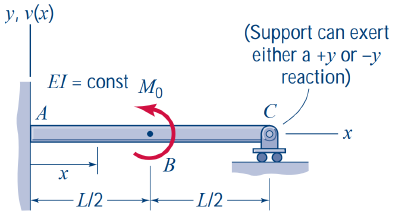

Determine the expressions for the reactions in A and C, in
addition to the expression for deflection of the elastic line
of the beam shown below.

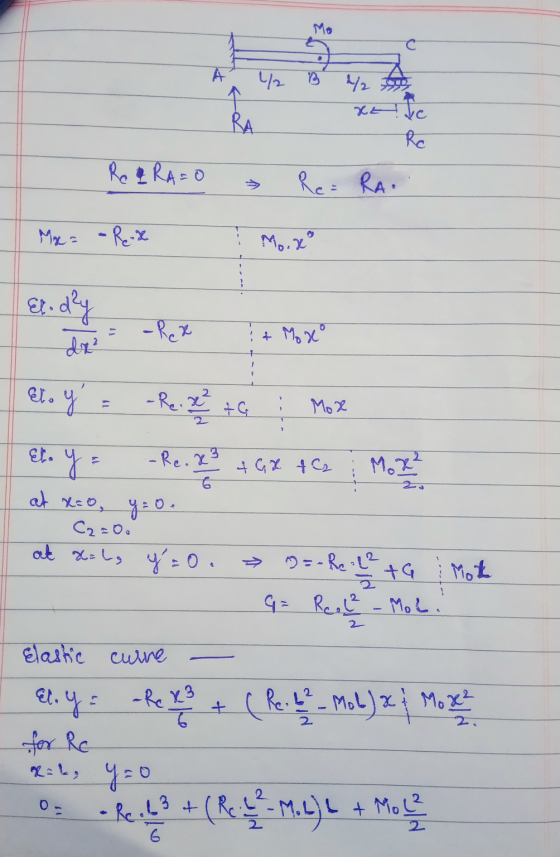

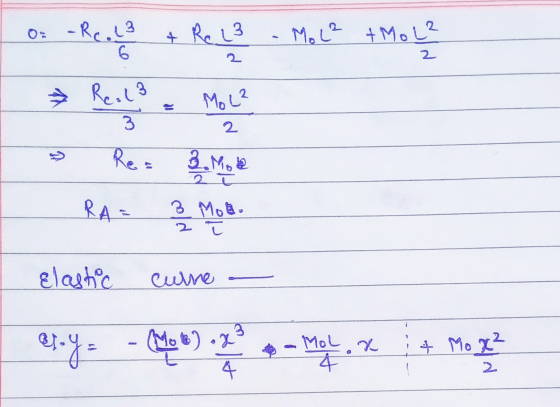

Homework Answers
Add Answer to:
Determine the expressions for the reactions in A and C, in
addition to the expression for...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LA...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
please please help! Statically Indeterminate Propped Cantilevered Beam Reaction and Deflection Derivation 1. Determine the reactions...
please please help!
Statically Indeterminate Propped Cantilevered Beam Reaction and Deflection Derivation 1. Determine the reactions R4, Rg, and M, and the elastic equation for the section of the beam between the wall and the load P. 2. Note: It will take 3 solutions to solve for the elastic equations for the entire beam: 0<x<d, d<x<s, and s SXSL 1. The derivation of the elastic equation for the section between the wall and the load (0 <x<d) is derived above....
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
Using the moment-area method determine the deflection at point C of the beam shown below
Using the moment-area method determine the deflection at point C of the beam shown below. Supports in A and B are pin and roller, respectively. Consider EI =const.
For the beam shown, EI is constant. (Figure 1) Part A Determine the horizontal reaction at...
For the beam shown, EI is constant. (Figure 1) Part A Determine the horizontal reaction at support A. Express your answer as an expression in terms of the variables a and Mo and any necessary constants. Submit Request Answer Part B Determine the vertical reaction at support A Express your answer as an expression in terms of the variables a and Mo and any necessary constants. ΑΣφ Figure < 1011 Submit Request Answer Part
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
For the beam and loading shown in the figure, integrate the load distribution to determine the...
For the beam and loading shown in the figure, integrate the load
distribution to determine the equation of the elastic curve for the
beam, and the maximum deflection for the beam. Assume that
EI is constant for the beam. Assume EI=25000 kN⋅m2, L=2.4
m, and w0=61 kN/m.
(a) Use your equation for the elastic curve to
determine the deflection at x=1.5 m. Enter a negative value if
the deflection is downward, or a positive value if it is
upward.
(b)...
For a constant EI (use EI as a constant in your answer): a. Determine the reactions...
For a constant EI (use EI as a constant in
your answer):
a. Determine the reactions RA and RC and
draw the shear force diagram (SFD) and the bending moment diagram
(BMD). See image below.
b. Determine the slope at A (θA) and the deflection
at B (ΔB) using the Moment-Area Method.
c. Determine the equation of the elastic curve, y(x), using the
Integration Method.
16 kN/m B 4 m 4 m SFD BMD
3) For the steel beam shown in figure, E = 200 GPa, 7 = 100 x...
3) For the steel beam shown in figure, E = 200 GPa, 7 = 100 x 106 mm4, L = 5 m and w = 2 kN/m. Determine (a) the reaction force and reaction moment at A and (b) the deflection at C (30 pts) w/2 K L/2— L/2– Beam and Loading Elastic Curve Maximum Deflection Slope at End Equation of Elastic Curve y=- *- 4Lx' + 613x4) For x }: PL 48ET 48E7(42 - 313) For x<a For a...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
please please help!
Statically Indeterminate Propped Cantilevered Beam Reaction and Deflection Derivation 1. Determine the reactions R4, Rg, and M, and the elastic equation for the section of the beam between the wall and the load P. 2. Note: It will take 3 solutions to solve for the elastic equations for the entire beam: 0<x<d, d<x<s, and s SXSL 1. The derivation of the elastic equation for the section between the wall and the load (0 <x<d) is derived above....
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown, EI is constant. (Figure 1) Part A Determine the horizontal reaction at support A. Express your answer as an expression in terms of the variables a and Mo and any necessary constants. Submit Request Answer Part B Determine the vertical reaction at support A Express your answer as an expression in terms of the variables a and Mo and any necessary constants. ΑΣφ Figure < 1011 Submit Request Answer Part
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
For the beam and loading shown in the figure, integrate the load
distribution to determine the equation of the elastic curve for the
beam, and the maximum deflection for the beam. Assume that
EI is constant for the beam. Assume EI=25000 kN⋅m2, L=2.4
m, and w0=61 kN/m.
(a) Use your equation for the elastic curve to
determine the deflection at x=1.5 m. Enter a negative value if
the deflection is downward, or a positive value if it is
upward.
(b)...
For a constant EI (use EI as a constant in
your answer):
a. Determine the reactions RA and RC and
draw the shear force diagram (SFD) and the bending moment diagram
(BMD). See image below.
b. Determine the slope at A (θA) and the deflection
at B (ΔB) using the Moment-Area Method.
c. Determine the equation of the elastic curve, y(x), using the
Integration Method.
16 kN/m B 4 m 4 m SFD BMD
3) For the steel beam shown in figure, E = 200 GPa, 7 = 100 x 106 mm4, L = 5 m and w = 2 kN/m. Determine (a) the reaction force and reaction moment at A and (b) the deflection at C (30 pts) w/2 K L/2— L/2– Beam and Loading Elastic Curve Maximum Deflection Slope at End Equation of Elastic Curve y=- *- 4Lx' + 613x4) For x }: PL 48ET 48E7(42 - 313) For x<a For a...
