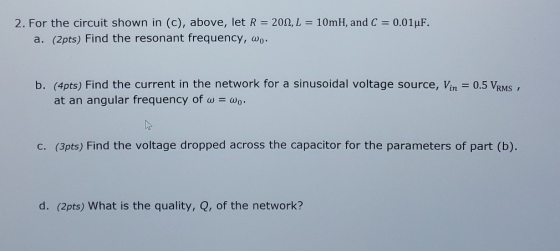

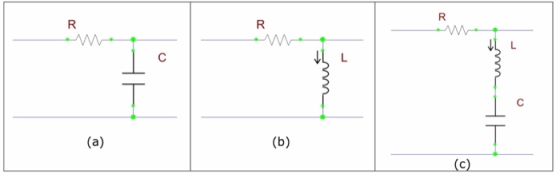

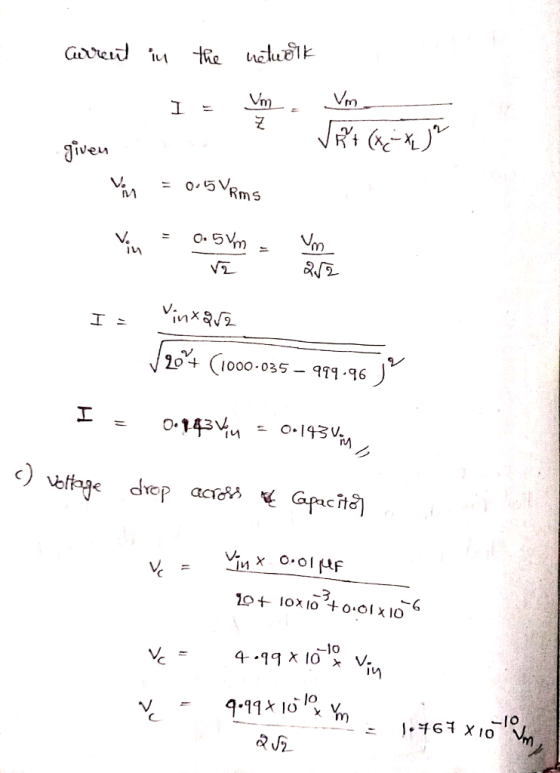

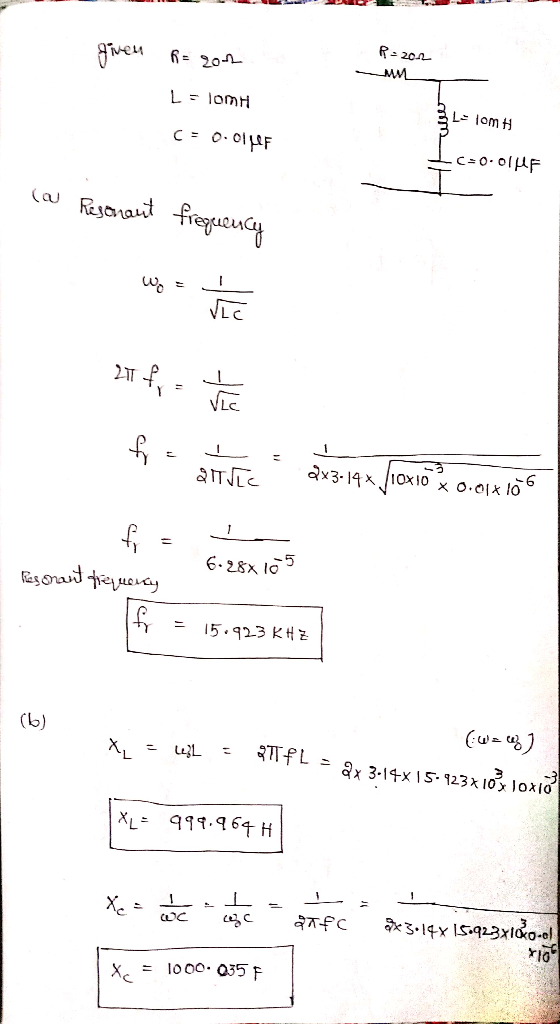

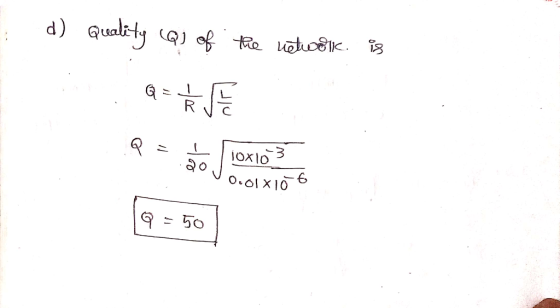

2. For the circuit shown in (c), above, let R-200, L--10mH, and C-001μF. a. (2pts) Find...
A series RLC circuit with L = 17.5 mH, C = 3 µF, and R = 15 Ω is driven by a generator with a maximum emf of 120 V and a variable angular frequency ω. Find the resonant frequency ω0. Answer in units of rad/s.
In a series R-L-C circuit, L = 0.190 H , C = 84.5 μF and the voltage amplitude of the source is 290 V . Part A What is the resonance angular frequency of the circuit? ω0 = rad/s SubmitMy AnswersGive Up Part B When the source operates at the resonance angular frequency, the current amplitude in the circuit is 0.610 A . What is the resistance R of the resistor? R = Ω SubmitMy AnswersGive Up Part C At...
For the following resonant series circuit shown in fig. 1, find : - Quality factor, Q. - Bandwidth, B. - The voltage across the capacitor. - The voltage across the inductor. - The voltage across the resistor. L = 4.7 mH C = 0.001uF S R = 470 VIN-1 V Fig. 1 Resonant series circuit
1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1 µF
is connected to an alternative voltage with maximum voltage of
Vm = 24 V and frequency of 300.0 Hz.
Find the following:
Show the formula for each question. Show your
Calculations – put result in a box with its unit. Please write your
answer under each question
a)Find the value of angular frequency ω .
b) Inductive Reactance ( XL)
c)Capacitive Reactance (...
A series L-R-C circuit is driven with AC voltage of
amplitude Vin and frequency ω. Define Vout to be the amplitude of
the voltage across the capacitor. The resistance of the resistor is
R, the capacitance of the capacitor is C, and the inductance of the
inductor is L.(Figure 1)
What is the ratio VoutVin?
Express your answer in terms of either R, ω, L, and C or R, XL
=ωL, and XC =1ωC.
Vin c+ Vout
Please help me with the exercise 2:
Consider the circuit shown where L=5 H, C=10 uF, Vo=220. The
switch is closed at t=0, determine the expression for the voltage
across the capacitor. Sketch the voltage across the capacitor,
inductor, and the diode. Sketch the current flowing through the
circuit
Thanks :)
1. For the current waveform, determine the average, rms, and peak current ratings 2. Consider the circuit shown where L-5 H, C=10 uF, Vo=220V. The switch is closed at...
Part AFind the impedance (defined by ) of the circuitusing thephasor diagram shown. Notice that in this series circuit,the current is same for all elements of the circuit:.You may find the following reminders helpful:In a series circuit, the overall voltage is the sum of theindividual voltages.In an AC circuit, the voltage across a capacitor lags behindthe current, whereas the voltage across an inductor leads thecurrent.The reactance (effective resistance) of an inductor in an ACcircuit is given by .The reactance (effective...
need to get same answer
The applied voltage to a series resonant circuit like that shown in Fig. 2.2a is I V. (a) Determine how much larger the voltages across L, C, and R are at resonance Use the values R 0. I Ω, L = 0.1 mH, and C = 0.01 μ F, and first calculate the resonance frequency. (b) Should VL and Vc be larger than 1 V, explain how this is possible. Ans: (a) VL = jl...
Determine if overdamped,underdamped, or critically damped
For the circuit shown below, Vs-200V, R-30, R.-50. C -0.125pF and L-SmH. Find (a) the initial voltage across the capacitor 20. (b) the initial current through the inductor, lu(0). (e) the damping coefficient and resonant frequency . (d) the initial condition dvede , (e) the voltage across the capacitor (t) for the initial condition diu/dt , and the current through the inductor lu(t) for p R2 Voc
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...
