need help finding , reactions ,shear force and bending moment diagram .please show steps RA Find...

Question

Question

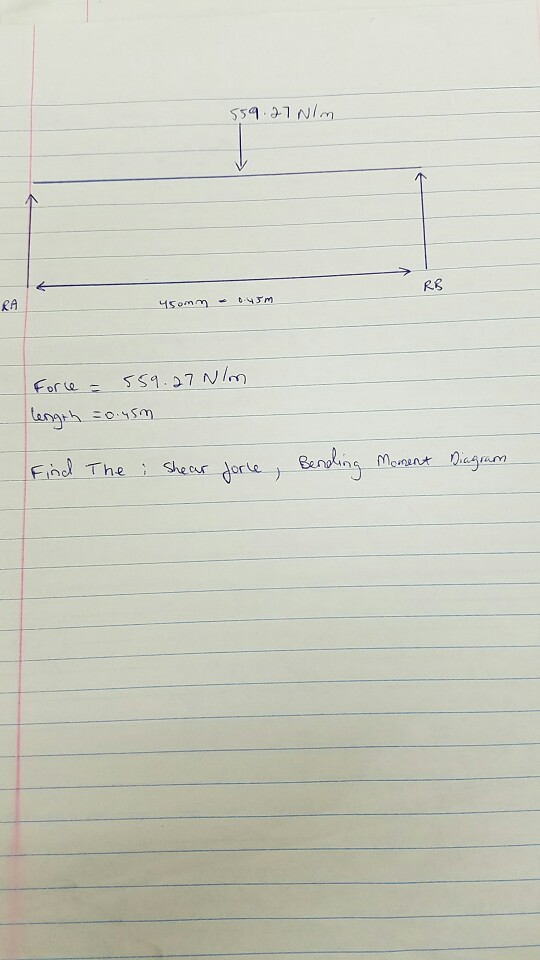

RA Find Ther oreBendlins Monant D

need help finding , reactions ,shear force and bending moment diagram .please show steps

engineering Mechanical-Engineering

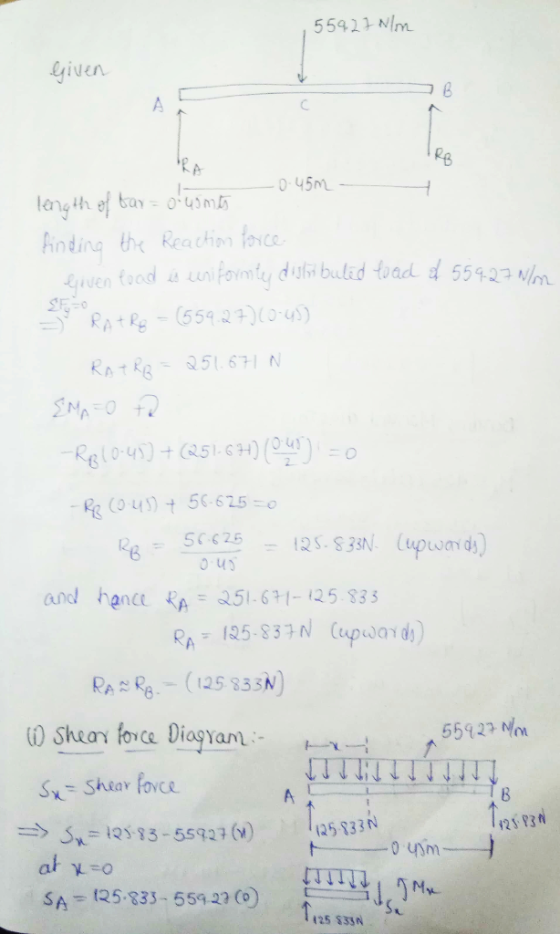

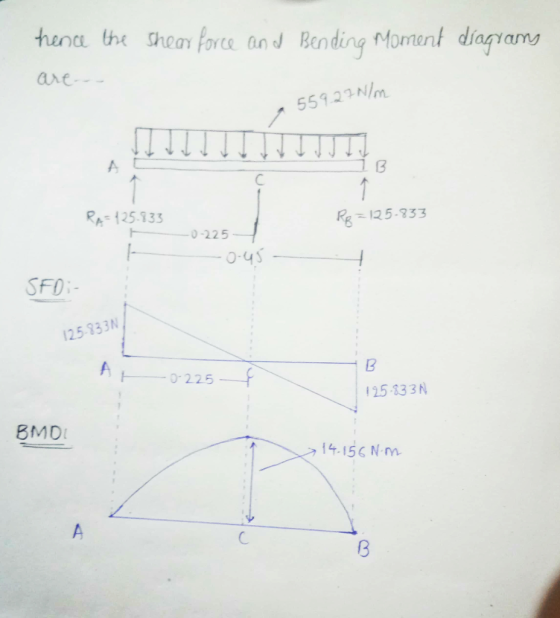

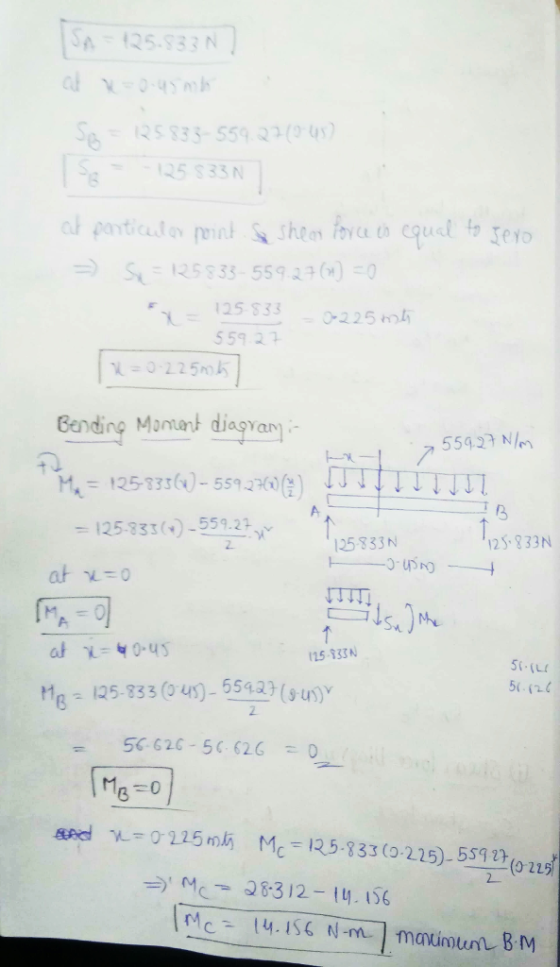

Answer 1

Answer #1

Answer 2
