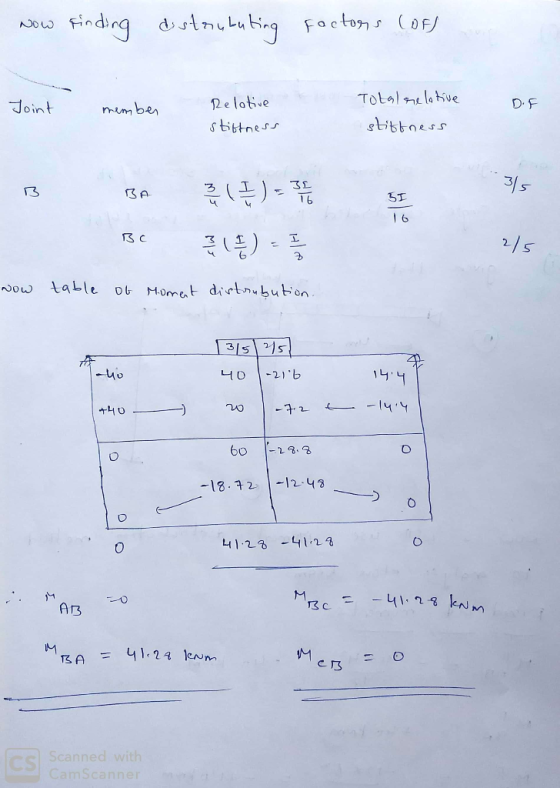

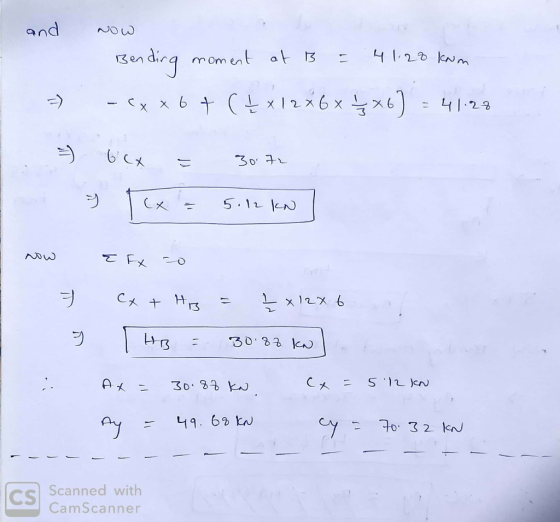

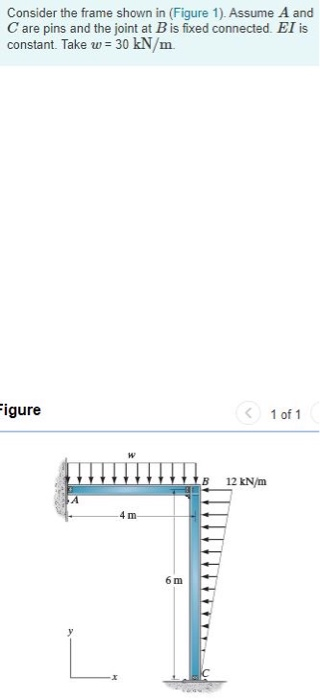

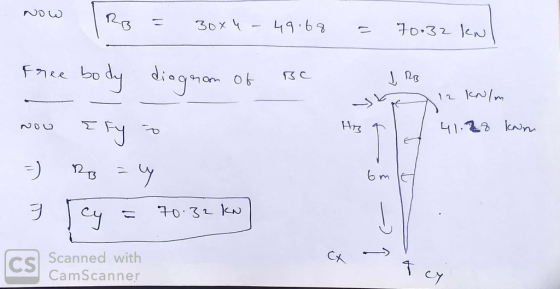

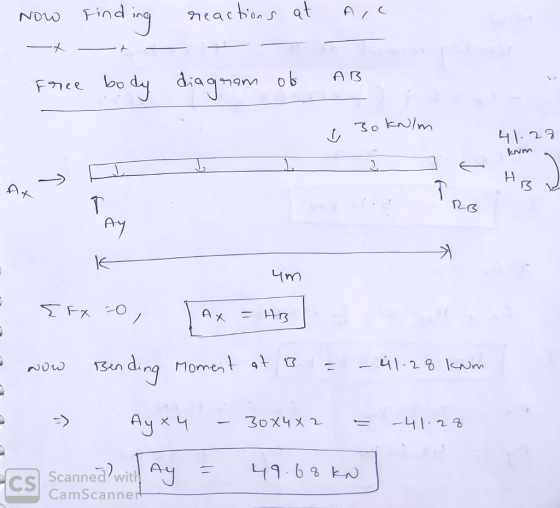

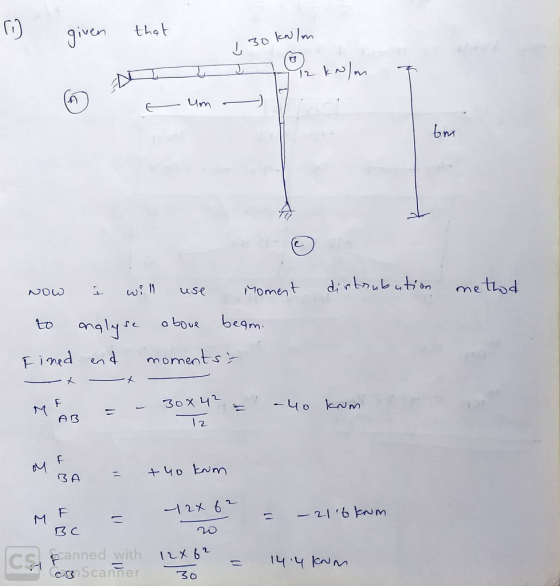

Consider the frame shown in (Figure 1). Assume A and Care pins and the joint at...
Consider the frame shown in (Figure 1). Assume A and B are pins and the joint at C is fixed connected. El is constant Part A Determine the x component of reaction at A. Express your answer to three significant figures and include the appropriate units. HA ? Value Units Submit Request Answer Part B Determine the y component of reaction at A. Express your answer to three significant figures and include the appropriate units. igure 1 of 1 НА...
Please Solve Ay and Cy
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Please find X and Y components at C and A. Thank you!
Consider the frame shown in (Figure 1). Assume A and Care pins and the joint at B is fixed connected. El is constant. Take w = 27 kN/m. Part A Determine the 2 component of reaction at C Express your answer to three significant figures and include the appropriate units. View Available Hint(s) THÅ ? Value Units Submit Part B Complete previous part(s) Part C Complete previous part(s)...
Please solve Ay and Dy
Review Consider the frame shown in (Figure 1). Assume A and D are pins EI is constant. Suppose that w 1.8 k/ft. 1 of 1 Figure 9 k 12 ft 8 ft
Review Consider the frame shown in (Figure 1). Assume A and D are pins EI is constant. Suppose that w 1.8 k/ft. 1 of 1 Figure 9 k 12 ft 8 ft
Consider the frame shown in (Figure 1). Assume A and D are pins. EI is constant. Suppose that w- 2 k/ft. 9 k 12 ft 8 ft Determine the component of reaction at D
Consider the frame shown in (Figure 1). Assume A and D are pins. EI is constant. Suppose that w- 2 k/ft.
9 k 12 ft 8 ft
Determine the component of reaction at D
All i need is graphs thank you!
Problem 9.22 Consider the frame shown in (Figure 1). Assume A and B are pins and the joint at C is fixed connected. Er is constant. Draw the moment diagram for member AC. Follow the sign convention for the internal loadings in the beam shown in the figure below. Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. Note 1...
A frame structure is shown in Figure 1, in which points A, B and C are all pins (a) Draw the shear and moment diagrams for the frame, and determine the shear and moment at points D and E [20 marks] (b) Calculate the horizontal deflection of the frame at joint F use virtual-work. EI for all members are the same and is a constant. [20 marks] 0.25 m 0.75 m C D 0.75 m 0.75 m 00 N/m 60...
QUESTION 1 [25 marks A frame loaded with a uniformly distributed load at Member AB and point load at Member BC and joint B. It has pinned supports A and C, while joint B is fixed connected, as can be seen in Figure 1. Take E-200 GPa. a) Using the slope-deflection method, calculate the moments and illustrate the bending moment diagram. [15 marks) b) Then calculate the shear forces and sketch the shear force diagram. [10 marks) 22 KN 10...
Consider the frame shown in (Figure 1). Suppose that w
= 5.5 kN/m .
A=1200mm2
Problem #4: Determine the horizontal deflection at joint C of the frame shown in the Figure including the effect of axial deformations, by the virtual work method. El- constant, E 70 GPa, l = 554(106) mmt (25 Points) 10 m 15 kN/m -75 kN- 6 m BHinge 6 m
Problem #4: Determine the horizontal deflection at joint C of the frame shown in the Figure including the effect of axial deformations, by the virtual work method. El- constant, E...
