Add Answer to:

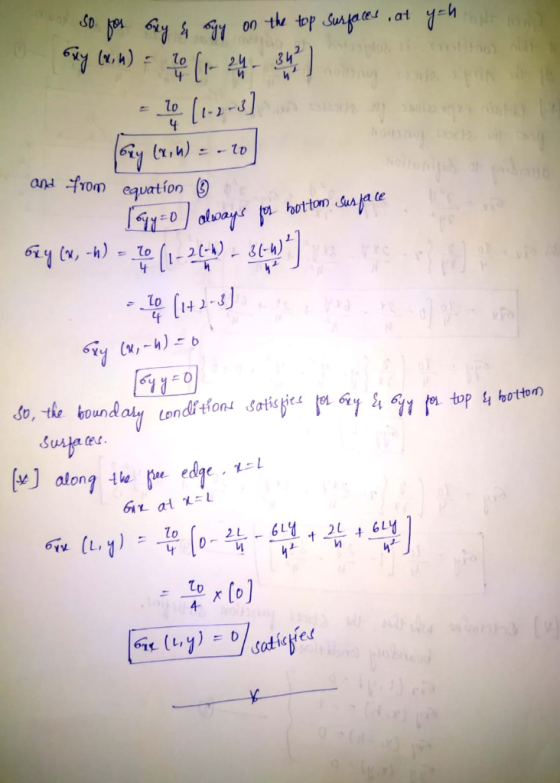

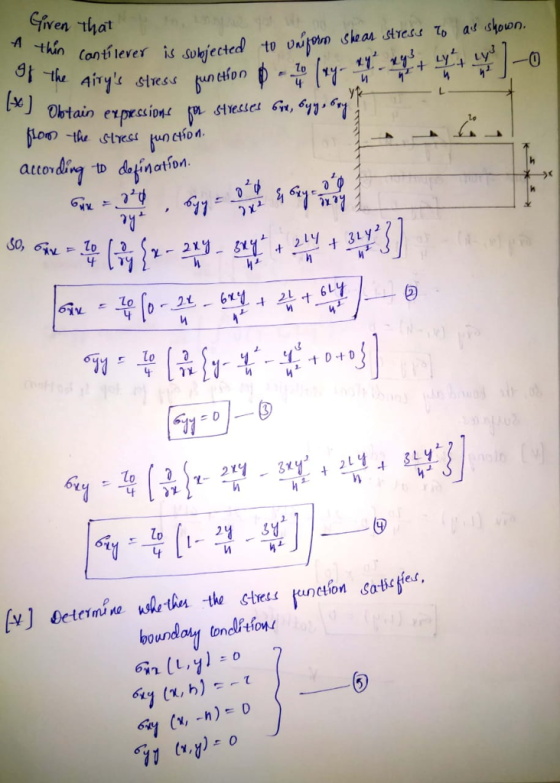

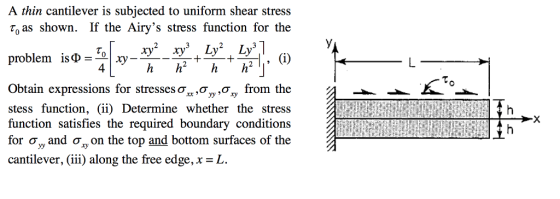

A thin cantilever is subjected to uniform shear stress to as shown. If the Airy's stress...
The cantilever beam shown in the figure is subjected to a distributed shear stress oon the upper face. The following Airy stress function is proposed for this problem Determine the constants c and fi...
The cantilever beam shown in the figure is subjected to a distributed shear stress oon the upper face. The following Airy stress function is proposed for this problem Determine the constants c and find the stress distribution in the beam. Use resultant force boundary conditions at the ends. (Answer: C1-ToC/12/, С2-Tp/201.c3- -to/24cl,...) TOXI Suggested process is as follows: (a) Write out the boundary conditions using St. Venant's principle for the semi-inverse (b) Write the stress field corresponding to the Airy...
For a cantilever beam with elastic modulus E loaded by a couple M at the free end, the following ...
For a cantilever beam with elastic modulus E loaded by a couple M at the free end, the following stress field is proposed: σ.-Dy, σ,-σ.-TE,-T.-T, CD is a constant) a. Show that this stress field satisfies the three equations of equilibrium and the six compatibility equations. b. Show that the top, bottom, front, and back surfaces are traction free for this set of stresses. c. Show that the resultant normal and shear force are zero on the free end. d....
The cantilever beam shown is subjected to a moment at A and a distributed load that...
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending moment
as a function of their positions along the beam. Finally, use these
expressions to construct shear and bending moment diagrams
Draw a free-body diagram of the beam on paper. Use your
free-body diagram to determine the reactions at...
stress analysis please answer ASAP Show that Airy's stress function D = Cre sine satisfies the...
stress analysis please answer ASAP
Show that Airy's stress function D = Cre sine satisfies the biharmonic equation. Also determine the stresses in polar co-ordinate system. 2 A 10-in. length of steel tubing (with properties of E 30 X 106 psi, v = 0.3 and a 7X10-5 F) having a cross-sectional area of 1 square in is installed with fixed ends so that it is stress- free at 80°F measurements indicate that the fixed ends separate by 0.008 in. What...
The cantilever beam shown is subjected to a moment at A and a distributed load that...
The cantilever beam shown is subjected to a moment at A and a
distributed load that acts over segment BC, and is fixed at C.
Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions along the beam. Finally, use these expressions to
construct shear and bending moment diagrams.
Part A - Reactions at support C
Draw a free-body diagram of the beam on paper. Use your...
th L and carries loading such P.2.5 The cantilever beam shown in Fig. P.2.5 is rigidly...
th L and carries loading such P.2.5 The cantilever beam shown in Fig. P.2.5 is rigidly fixed at Airy stress function relating to the problem is 40bc3 Find the loading boundary conditions. ni mattern corresponding to the function and check its validity with respeet to the stress function satisfies the biharmonic equation. The beam is a cantilever under a uniformly distributed load of intensity w/unit area with a self-equilibrating stress application given by ơ.-n(12c"y-20y3)/40bc3 at x-0. There is zero shear...
Z = 13*100mm PROBLEM: A thin-walled cantilever beam of unsymmetrical cross-section is subjected to a uniform...
Z = 13*100mm
PROBLEM: A thin-walled cantilever beam of unsymmetrical cross-section is subjected to a uniform distributed load was shown in the figure below. The wall thickness t can be assumed to be very small in comparison with hin calculating the sectional properties. Determine the stress distribution on the cross section and the position of the neutral axis. Find the deflection of the beam at the cross section. Use:w=0.8N/mm: L = 1500 mm; h = 80 mm: t= 2 mm:...
Question 33 Indicate the assumptions valid for transverse shear stress. Shear force must act along an...
Question 33 Indicate the assumptions valid for transverse shear stress. Shear force must act along an axis of symmetry for the cross section Prismatic members Linear elastic behavior Short or flat cross section Homogeneous material Question 34 Transverse shear stress is assumed to vary across the width of the cross section, perpendicular to shear force. O True False Question 35 Indicate the situations where the shear formula is not valid? Choose all that apply. Tall or thin cross section Points...
4kN 150 mm 2kN Problem 1, subjected to two concentrated forces and has a as shown in the figures The cantilever beam, (fixed at A)s 0 mm30 mm -30 mm (a) Determine the maximum shear stress on the...
4kN 150 mm 2kN Problem 1, subjected to two concentrated forces and has a as shown in the figures The cantilever beam, (fixed at A)s 0 mm30 mm -30 mm (a) Determine the maximum shear stress on the section (b) Determine the maximum bending stress in compression and in tension (c) If the allowable bending stress (for tension and compression) is ơao.-6 MPa, calculate the new minimum required section modulus.
4kN 150 mm 2kN Problem 1, subjected to two concentrated...
A very thin flat plate "airfoil" with a 1m chord is placed at an angle of attack α with respect t...
A very thin flat plate "airfoil" with a 1m chord is placed at an angle of attack α with respect to the free stream velocity Voo. The pressure distribution on the top and bottom surfaces of the "airfoil" are given by: pu -5.4x104 + 4x104(x - 1)2 (Nm2) pi- 1.7x105 + 2x104(x - 1)2 (Nm2) where X is the distance from the leadıng edge measured in meters. Neglecting shear stresses, determine the lift and drag forces per unit span. At...
The cantilever beam shown in the figure is subjected to a distributed shear stress oon the upper face. The following Airy stress function is proposed for this problem Determine the constants c and find the stress distribution in the beam. Use resultant force boundary conditions at the ends. (Answer: C1-ToC/12/, С2-Tp/201.c3- -to/24cl,...) TOXI Suggested process is as follows: (a) Write out the boundary conditions using St. Venant's principle for the semi-inverse (b) Write the stress field corresponding to the Airy...
For a cantilever beam with elastic modulus E loaded by a couple M at the free end, the following stress field is proposed: σ.-Dy, σ,-σ.-TE,-T.-T, CD is a constant) a. Show that this stress field satisfies the three equations of equilibrium and the six compatibility equations. b. Show that the top, bottom, front, and back surfaces are traction free for this set of stresses. c. Show that the resultant normal and shear force are zero on the free end. d....
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending moment
as a function of their positions along the beam. Finally, use these
expressions to construct shear and bending moment diagrams
Draw a free-body diagram of the beam on paper. Use your
free-body diagram to determine the reactions at...
stress analysis please answer ASAP
Show that Airy's stress function D = Cre sine satisfies the biharmonic equation. Also determine the stresses in polar co-ordinate system. 2 A 10-in. length of steel tubing (with properties of E 30 X 106 psi, v = 0.3 and a 7X10-5 F) having a cross-sectional area of 1 square in is installed with fixed ends so that it is stress- free at 80°F measurements indicate that the fixed ends separate by 0.008 in. What...
The cantilever beam shown is subjected to a moment at A and a
distributed load that acts over segment BC, and is fixed at C.
Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions along the beam. Finally, use these expressions to
construct shear and bending moment diagrams.
Part A - Reactions at support C
Draw a free-body diagram of the beam on paper. Use your...
th L and carries loading such P.2.5 The cantilever beam shown in Fig. P.2.5 is rigidly fixed at Airy stress function relating to the problem is 40bc3 Find the loading boundary conditions. ni mattern corresponding to the function and check its validity with respeet to the stress function satisfies the biharmonic equation. The beam is a cantilever under a uniformly distributed load of intensity w/unit area with a self-equilibrating stress application given by ơ.-n(12c"y-20y3)/40bc3 at x-0. There is zero shear...
Z = 13*100mm
PROBLEM: A thin-walled cantilever beam of unsymmetrical cross-section is subjected to a uniform distributed load was shown in the figure below. The wall thickness t can be assumed to be very small in comparison with hin calculating the sectional properties. Determine the stress distribution on the cross section and the position of the neutral axis. Find the deflection of the beam at the cross section. Use:w=0.8N/mm: L = 1500 mm; h = 80 mm: t= 2 mm:...
Question 33 Indicate the assumptions valid for transverse shear stress. Shear force must act along an axis of symmetry for the cross section Prismatic members Linear elastic behavior Short or flat cross section Homogeneous material Question 34 Transverse shear stress is assumed to vary across the width of the cross section, perpendicular to shear force. O True False Question 35 Indicate the situations where the shear formula is not valid? Choose all that apply. Tall or thin cross section Points...
4kN 150 mm 2kN Problem 1, subjected to two concentrated forces and has a as shown in the figures The cantilever beam, (fixed at A)s 0 mm30 mm -30 mm (a) Determine the maximum shear stress on the section (b) Determine the maximum bending stress in compression and in tension (c) If the allowable bending stress (for tension and compression) is ơao.-6 MPa, calculate the new minimum required section modulus.
4kN 150 mm 2kN Problem 1, subjected to two concentrated...
A very thin flat plate "airfoil" with a 1m chord is placed at an angle of attack α with respect to the free stream velocity Voo. The pressure distribution on the top and bottom surfaces of the "airfoil" are given by: pu -5.4x104 + 4x104(x - 1)2 (Nm2) pi- 1.7x105 + 2x104(x - 1)2 (Nm2) where X is the distance from the leadıng edge measured in meters. Neglecting shear stresses, determine the lift and drag forces per unit span. At...
