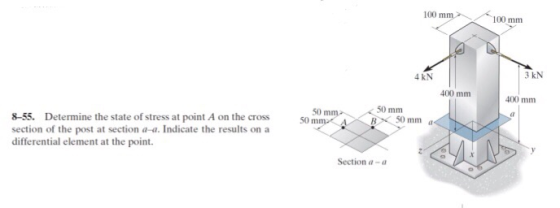

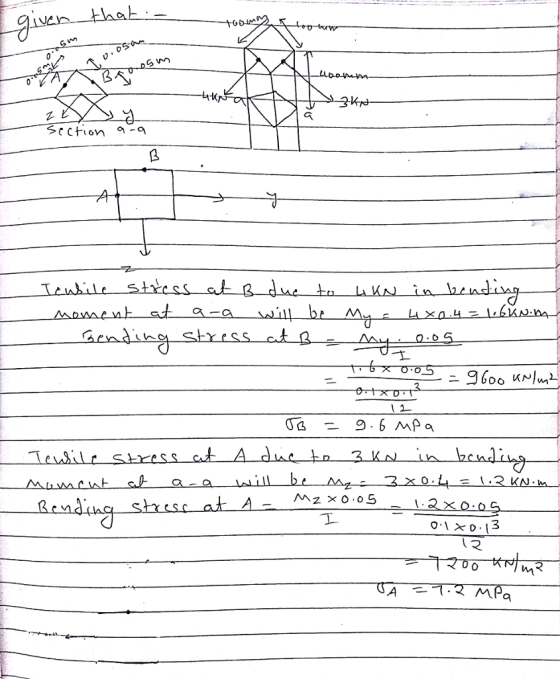

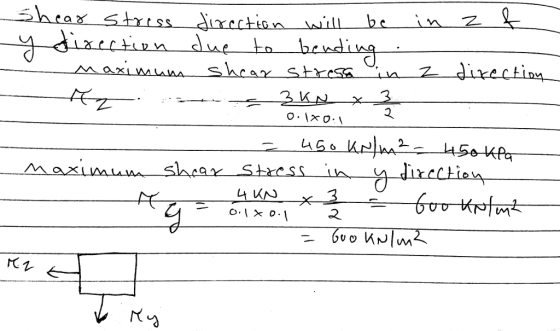

What is the direction of the shear stress? 100 m 100 mm 4 kN 3 kN...
SO mm 50 mm - 100 mm Problem 4 - Shear Stress (25 pts) The wood beam has an allowable shear stress of Tallow = 8 MPa. Determine the maximum shear force V that can be applied to the cross section. 50 mm 200 mm SO mm
PROBLEM 2: 40% A 6 kN force is exerted on the frame which has the T cross sectio analyze the states of stress at a section taken at 800 mm from the point of n shown below. It is required to 1. For the given T cross section, find the centroid and the area moment of inertia I,. 2. Draw the free body diagram of the free end of the frame and determine the interna loadings at the centroid of...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
Two forces 3 kN and 2.5 kN are applied to the machine component ABD as shown in Figure 3. Given that the cross section containing the point H is a rectangle of dimensions 20mm x 10mm, determine the following a. Draw the free body diagram at H, and indicate the reaction forces/moments. b. Indicate the state of stress at Point H and the components of stress in the proper directions on a stress block or stress element (as indicated in...
Part A Review Given that P 4.8 kN,V = 3.4 kN (Figure 1) Determine the normal stress at point A on the cross section of the post at section a Express your answer using three significant figures and include the appropriate units. Enter negative value the case of compression and positive in the case of tension Value Units OA Figure 1 of 1 Request Answer Submit 100 mm 100 mm Part B Determine the shear stress component (Ty)] at point...
6 kN/m 15 kN 100 mm E NA - B D 100 mm 0.8 m For the truss system shown, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts)Determine the magnitude of the absolute maximum moment (Mmax) and its location c. (Z pts) Find the maximum bending stress in the member (max) d. (Z pts)Compute the Bending Stress at a point on the section B that is 25 mm below the...
20 KN 3 kN/m 3 2 KN- y, 2 kN-m 12.5 mm 200 mm? Z B 150 mm 121.43 mm 1.5 m 1.5 m 2.2 m 12.5 mm Part [1] (a.) Construct shear and bending moment diagrams. Show all work. Label completely. (b.) Determine the maximum value of the transverse shear force (in magnitude) and where it occurs. 'Box' answers. (c.) Determine the maximum values of the bending moment (both positive and negative) and where each occurs. 'Box' answers. Part...
15 kN 6 kN/m 100 mm AC E NA - B D 100 mm 0.8 m 2. (30pts.) For the truss system shown, a. (10 pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. (6 pts )Determine the magnitude of the absolute maximum moment (Mmax) and its location c. (7 pts) Find the maximum bending stress in the member (max) d. (7 pts)Compute the Bending Stress at a point on the section B that is...
The beam has the loading and the shear diagram as shown. Consider a cross section between C and D, determine: • the maximum shearing stress in that cross section, • the shearing stress at point Hon the web of the beam at the same cross section. 15 kN 8 KN 9 KN 12 KN -180 mm 40 mm А B C D E F H 3 m + 2m +2 m-42 m 4 m T 180 mm 12 KN 9...
