What is the value of by bearing reaction in the beam below? P = 6 kN...

Question

Question

What is the value of by bearing reaction in the beam below?

P = 6 kN q=2 kN / m a = 1 m b=3 m

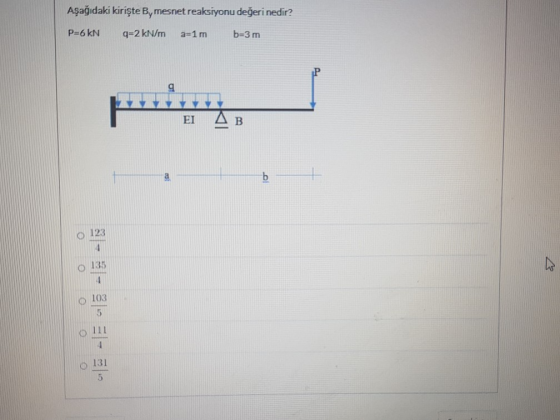

Aşağıdaki kirişte B, mesnet reaksiyonu değeri nedir? P=6 KN q=2 kN/m a=1 m b=3 m 9 EI B a b 123 135 103 5 6 111 6131 5

engineering Civil-Engineering

Answer 1

Answer #1

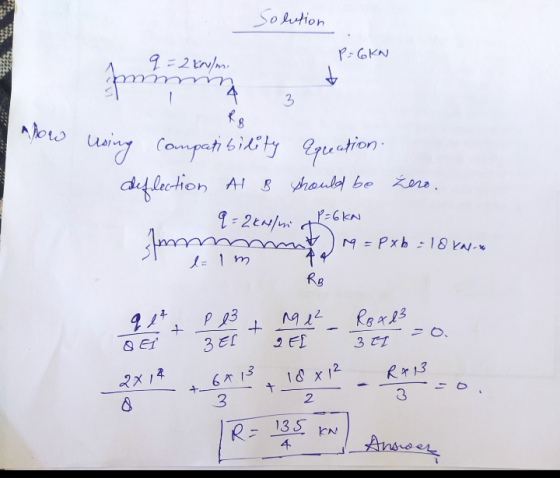

Solution P-6KN 4. 3 B How q=2 kN/m pom min using compatibility aquation. deflection Al B should be žero. q=2kn/mi som P=6kN M

Answer 2

Similar Homework Help Questions

For the beam below, let the uniform distributed load (w) be 15 kN/m and the beam...

For the beam below, let the uniform distributed load (w) be 15 kN/m and the beam spans length (L) be 5 m, and El=1000.0 kN/m . Taking redundant Rgt, use the force method to solve: w В + L L (1) 48 (m) for the primary beam; (2) 888 (m) for the primary beam with redundant Rg= 1 kN; (3) The vertical reaction Rg (kN); (4) The vertical reaction RA (kN); (5) The vertical reaction Rc (kN); < (6) The...
NO WEIGHT on the beam. What is the vertical reaction at the roller (Kn) What is the...

NO WEIGHT on the beam. What is the vertical reaction at the roller (Kn) What is the vertical reaction at the pin (Kn) What is the horizontal reaction at the roller (Kn) What is the largest (largest positive or negative) shear value (Kn) What is the location for the largest (largest positive or negative) shear value ... with X=0 starting on the left end of the beam. What is the largest (largest positive or negative) Internal Bending Moment (KN-M ) What is...
Using the moment distribution method to solve the beam shown below. Take w = 15.8 kN/m...

Using the moment distribution method to solve the beam shown below. Take w = 15.8 kN/m and L 4.9 m ΒΣ 2EI EI 2L Part 3 Calculate the moment at B Мв kN m Part 4 Calculate the reaction force at C Cy kN

For the following Beam: w (kN/m) P (kN) You А B 10 m 4 m 4...

For the following Beam: w (kN/m) P (kN) You А B 10 m 4 m 4 m E200 GPa 1 = 6,000 cm w=20 kN/m P-6.25'w (kN); For instance if w-2kN/m; then P-6.25*2-12.5 kN What is the value for the reaction at the support B (kN)? Remember Forces to the right and up are entered as positive, left and down are entered as negative. Counterclockwise moments are entered as positive, clockwise moments are entered as negative
The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and S 200 KN acting at th...

The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and S 200 KN acting at the free end of the cantilever beam. Determine (a) the maximum tensile and compressive stress of the bar if the depth, d of the rectangular bar is 70 mm, and the maximum torsional stress 200 Kw b-40 mm a 20 mm 20 mm The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and...
A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown...

A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown below. Assume the force and the couple acts in the same plane. Determine the vertical reaction at B (in kN). Sign: Upward positive P B M 4 m 3 m

The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and...

The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and S 200 KN acting at the free end of the cantilever beam. Determine (a) the maximum tensile and compressive stress of the bar if the depth, d of the rectangular bar is 70 mm, and the maximum torsional stress 200 Kw b-40 mm a 20 mm 20 mm
A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown...

A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown below. Assume the force and the couple acts in the same plane. Determine the vertical reaction at A (in kN). Sign: Upward positive P B M 4m 3 m
deflection using superposition and integration For the beam below determine the following a). Deflection at point...

deflection using superposition and integration For the beam below determine the following a). Deflection at point C superposition b). Check your answer in (a) at point C using integration Note: E = 210 x 103 N/mm2 , lxx = 940 x 106 mm" dZy M 2 EI = 20 kN 1 m 8 kN/m Ci 爿 3 m

For the beam and loading shown below, 3 kN 3 KN 1.8 kN/m SO mm B...

For the beam and loading shown below, 3 kN 3 KN 1.8 kN/m SO mm B 300 mm D 1 - -1.5 m 1,5 m - 1.5 m Q2-PART@) Determine the reaction force at A = ? (in kN) Q2-PART(b) Determine the moment inertia along the horizontal neutral axis for the cross section of the beam = ? (in 106 mm) Q2-PARI(C) Determine the maximum normal stress due to bending on a transverse section at C = ? (in MPa)
