Homework Answers
Add Answer to:

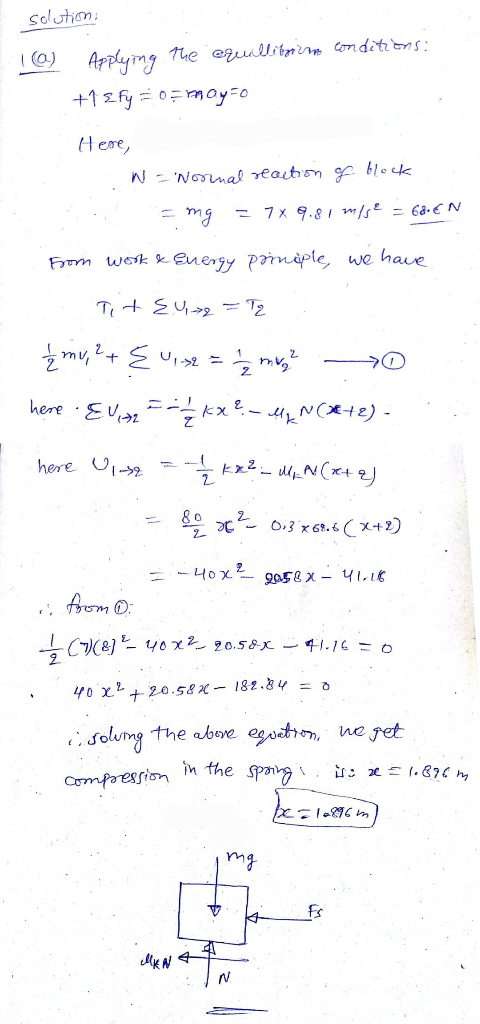

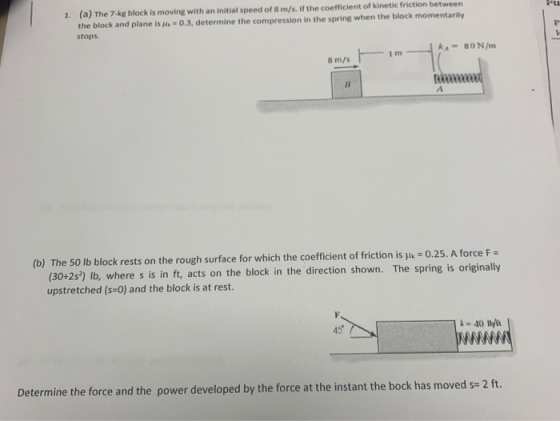

1. (a) The 7-kg block is moving with an initial speed of 8 m/s. If the...
The 50-10 block rests on the rough surface for which the coefficient of kinetic friction is...

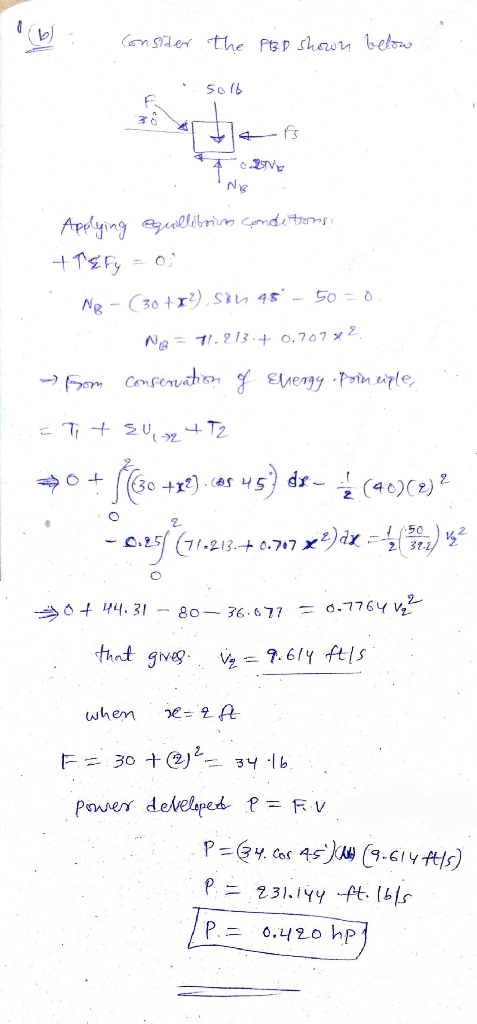

The 50-10 block rests on the rough surface for which the coefficient of kinetic friction is 0.2. A force F = (40 + s2) lb, where s is in ft, acts on the block in the direction shown. If the spring is originally unstretched (s = 0) and the block is at rest, determine the power developed by the force the instant the block has moved s = 1.5 ft. F. 30° k = 20 lb/ft
The 52-lb block rests on the rough surface for which the coefficient of kinetic friction is...
The 52-lb block rests on the rough surface for which the coefficient of kinetic friction is mu_k = 0.2. A force F = (40 + s^2) lb, where s is in ft, acts on the block in the direction shown. The spring is originally unstretched (s = 0) and the block is at rest. (Figure 1) Part A Determine the power developed by the force the instant the block has moved s = 1.5 ft.
Problem 3: The 50-1b block rests on the rough surface for which the coefficient of kinetic...
Problem 3: The 50-1b block rests on the rough surface for which the coefficient of kinetic friction is 0.2. A force F = (40 + s2) lb, where s is in ft, acts on the block in the direction shown. If the spring is originally unstretched (s = 0) and the block is at rest, determine the power developed by the force the instant the block has moved s = 1.5 ft. F 30° k = 20 lb/ft
3.0 - 6.00 m ASSO 13.0-kg block is released from point A with initial speed of...
3.0 - 6.00 m ASSO 13.0-kg block is released from point A with initial speed of -2.0 m/s ( block is given a push up or down the ramp). The track is frictionless except for the portion between points B and C which has a length of 6.00 m. The block travels down the track, hits a spring of force constant 2,000 N/m, and compresses the spring 0.20 m from its equilibrium position before coming to rest momentarily. Determine the...
A 2.1.0-kg block is accelerated from rest by a compressed spring (ks = 545 N/m). The...
A 2.1.0-kg block is accelerated from rest by a compressed spring (ks = 545 N/m). The block leaves the spring at the spring’s relaxed length. The block then travels along a rough horizontal with a coefficient of kinetic friction μk = 0.240 a distance of x = 6.90 m before frictional force stops the block. What was the original compression distance of the spring?
A block having a mass of 0.800 kg is given an initial velocity vA= 1.25 m/s...
A block having a mass of 0.800 kg is given an initial velocity vA= 1.25 m/s to the right. It collides head-on with a horizontal spring of negligible mass and force constant k = 50 N/m, resting on the table. (a)Assuming the surface to be frictionless, calculate the maximum compression of the spring after the collision. Assume that the block gets stuck to the spring. (b)Suppose a constant force of kinetic friction acts between the block and the surface, with...
A block of mass ?=3.65 kg slides along a horizontal table with speed ?0=6.50 m/s. At...
A block of mass ?=3.65 kg slides along a horizontal table with speed ?0=6.50 m/s. At ?=0, it hits a spring with spring constant ?=67.00 N/m, and it also begins to experience a friction force. The coefficient of friction is given by ?=0.200. How far has the spring compressed by the time the block first momentarily comes to rest?
A3 g bullet is fired horizontally into the 0.5 kg block which rests on the rough...
A3 g bullet is fired horizontally into the 0.5 kg block which rests on the rough surface coefficient of friction 01. Alter the bullet becomes embedded into the book, the block moves to the night 03 m before momentarily coming to rest Determine the speed (b) of the bullet. The spring has a stress 200-Num and is ongly un stretched [m/s] k = 200 N/m WWWWW
A 250 g block is moving along the “x” axis and at some point a force...
A 250 g block is moving along the “x” axis and at some point a
force in the positive direction of the axis acts on it.
The graph shows the magnitude of the force versus the position
“x” of the particle. The curve is given by F=a/x^2, with a=9.0 N.m2
. Find the work done on the block by the force as the block moves
from x=1.0 m to x=3.0 m by:
a.) Estimating the work from the graph.
b.)...
A block of mass m = 2.75 kg slides along a horizontal table with speed v0...
A block of mass m = 2.75 kg slides along a horizontal table with speed v0 = 1.00 m/s. At x = 0 it hits a spring with spring constant k = 82.00 N/m and it also begins to experience a friction force. The coefficient of friction is given by μ = 0.100. How far has the spring compressed by the time the block first momentarily comes to rest?
The 50-10 block rests on the rough surface for which the coefficient of kinetic friction is 0.2. A force F = (40 + s2) lb, where s is in ft, acts on the block in the direction shown. If the spring is originally unstretched (s = 0) and the block is at rest, determine the power developed by the force the instant the block has moved s = 1.5 ft. F. 30° k = 20 lb/ft
The 52-lb block rests on the rough surface for which the coefficient of kinetic friction is mu_k = 0.2. A force F = (40 + s^2) lb, where s is in ft, acts on the block in the direction shown. The spring is originally unstretched (s = 0) and the block is at rest. (Figure 1) Part A Determine the power developed by the force the instant the block has moved s = 1.5 ft.
Problem 3: The 50-1b block rests on the rough surface for which the coefficient of kinetic friction is 0.2. A force F = (40 + s2) lb, where s is in ft, acts on the block in the direction shown. If the spring is originally unstretched (s = 0) and the block is at rest, determine the power developed by the force the instant the block has moved s = 1.5 ft. F 30° k = 20 lb/ft
3.0 - 6.00 m ASSO 13.0-kg block is released from point A with initial speed of -2.0 m/s ( block is given a push up or down the ramp). The track is frictionless except for the portion between points B and C which has a length of 6.00 m. The block travels down the track, hits a spring of force constant 2,000 N/m, and compresses the spring 0.20 m from its equilibrium position before coming to rest momentarily. Determine the...
A3 g bullet is fired horizontally into the 0.5 kg block which rests on the rough surface coefficient of friction 01. Alter the bullet becomes embedded into the book, the block moves to the night 03 m before momentarily coming to rest Determine the speed (b) of the bullet. The spring has a stress 200-Num and is ongly un stretched [m/s] k = 200 N/m WWWWW
A 250 g block is moving along the “x” axis and at some point a
force in the positive direction of the axis acts on it.
The graph shows the magnitude of the force versus the position
“x” of the particle. The curve is given by F=a/x^2, with a=9.0 N.m2
. Find the work done on the block by the force as the block moves
from x=1.0 m to x=3.0 m by:
a.) Estimating the work from the graph.
b.)...
