You need to design an industrial turntable that is 68.0 cm in diameter and has a...
You need to design an industrial turntable that is 68.0 cm in diameter and has a kinetic energy of 0.270 J when turning at 48.0 rpm (rev/min).
Part A
What must be the moment of inertia of the turntable about the rotation axis?
Part B
If your workshop makes this turntable in the shape of a uniform solid disk, what must be its mass?

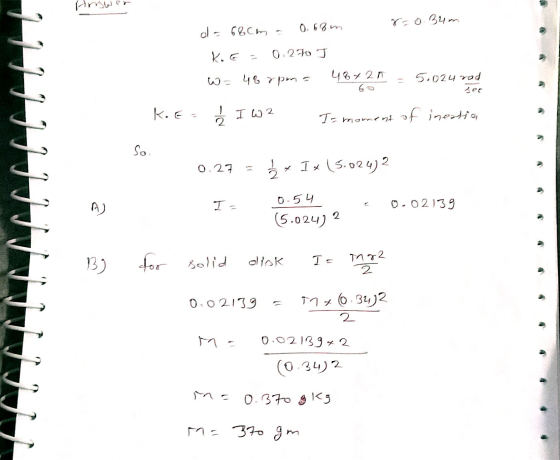

Homework Answers
Add Answer to:
You need to design an industrial turntable that is 68.0 cm in
diameter and has a...
You need to design an industrial turntable that is 48.0 cm in diameter and has a...
You need to design an industrial turntable that is 48.0 cm in diameter and has a kinetic energy of 0.210 J when turning at 45.0 rpm (rev/min). a. What must be the moment of inertia of the turntable about the rotation axis? b. If your workshop makes this turntable in the shape of a uniform solid disk, what must be its mass?
You need to design an industrial turntable that is 45.0 cm in diameter and has a...
You need to design an industrial turntable that is 45.0 cm in diameter and has a kinetic energy of 0.220 J when turning at 35.0 rpm (rev/min). A) What must be the moment of inertia of the turntable about the rotation axis? (in kg*m^2) B) If your workshop makes this turntable in the shape of a uniform solid disk, what must be its mass? (in kg)
You need to design an industrial turntable that is 68.0 cm in diameter and has a...
You need to design an industrial turntable that is 68.0 cm in diameter and has a kinetic energy of 0.290 J when turning at 35.0 rpm (rev/min). Part B If your workshop makes this turntable in the shape of a uniform solid disk, what must be its mass? Express your answer in kilograms. EVO AE ? m = kg Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining
You need to design an industrial turntable that is 58.0 cm in diameter and has a kinetic energy of 0.280 J when turning...
You need to design an industrial turntable that is 58.0 cm in diameter and has a kinetic energy of 0.280 J when turning at 47.0 rpm (rev/min).
Design of a fairground attraction A fairground attraction consists of a flat turntable of 12m diameter...
Design of a fairground attraction
A fairground attraction consists of a flat turntable of 12m diameter on which 4 gondolas are attached. The turntable is at an angle of 7.5 °. The disc rotates at an average speed of 8 rpm, the gondolas in the opposite direction around their own axis at 22 rpm. Each gondola can accommodate 4 people. Design the turntable drive. Approach the disk as a solid round plate with a mass of 26 tons, the gondolas...
A large wooden turntable in the shape of a flat uniform disk has a radius of...
A large wooden turntable in the shape of a flat uniform disk has a radius of 2.05 m and a total mass of 130 kg. The turntable is initially rotating at 3.40 rad/s about a vertical axis through its center. Suddenly, a 72.5-kg parachutist makes a soft landing on the turntable at a point near the outer edge. (a) Find the angular speed of the turntable after the parachutist lands. (Assume that you can treat the parachutist as a particle.)...
A large wooden turntable in the shape of a flat uniform disk has a radius of...
A large wooden turntable in the shape of a flat uniform disk has a radius of 2.00 m and a total mass of 120 kg. The turntable is initially rotating at 2.00 rad/s about a vertical axis through its center. Suddenly, a 75.0-kg parachutist makes a soft landing on the turntable at a point near the outer edge. Part A: Find the angular speed of the turntable after the parachutist lands. (Assume that you can treat the parachutist as a...
A large wooden turntable in the shape of a flat uniform disk has a radius of...
A large wooden turntable in the shape of a flat uniform disk has a radius of 2.00 in and a total mass of 1.40 x 102 kg. The turntable is initially rotating at 3.10 rad/s about a vertical axis through its center. Suddenly, a 70.0 kg parachutist makes a soft landing on the turntable at a point near the outer edge. Part A Find the angular speed of the turntable after the parachutist lands. (Assume that you can treat the...
positive direction) Multiple Choice 15% each! 1. A solid uniform sphere of mass 1.85 kg and...
positive direction) Multiple Choice 15% each! 1. A solid uniform sphere of mass 1.85 kg and diameter 45.0 cm spins about an axle through its center. Starting with an angular velocity of 2.40 revisit stops after turning through 18.2 rev with uniform acceleration. The net torque acting on this sphere as it is slowing down is dosest to (A) 0.0466 Nm (B) 0.00593 Nm (C) 0.0620 Nm (D) 0.149 Nm (E) 0.0372 Nm 2. If the torque on an object...
Constants Part A A solid, uniform cylinder with mass 8.30 kg and diameter 19.0 cm is...
Constants Part A A solid, uniform cylinder with mass 8.30 kg and diameter 19.0 cm is spinning with angular velocity 205 rpm on a thin, frictionless axle that passes along the cylinder axis. You design a simple friction- brake to stop the cylinder by pressing the brake against the outer rim with a normal force. The coefficient of kinetic friction between the brake and rim is 0.345. What must the applied normal force be to bring the cylinder to rest...
You need to design an industrial turntable that is 68.0 cm in diameter and has a kinetic energy of 0.290 J when turning at 35.0 rpm (rev/min). Part B If your workshop makes this turntable in the shape of a uniform solid disk, what must be its mass? Express your answer in kilograms. EVO AE ? m = kg Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining
Design of a fairground attraction
A fairground attraction consists of a flat turntable of 12m diameter on which 4 gondolas are attached. The turntable is at an angle of 7.5 °. The disc rotates at an average speed of 8 rpm, the gondolas in the opposite direction around their own axis at 22 rpm. Each gondola can accommodate 4 people. Design the turntable drive. Approach the disk as a solid round plate with a mass of 26 tons, the gondolas...
A large wooden turntable in the shape of a flat uniform disk has a radius of 2.00 in and a total mass of 1.40 x 102 kg. The turntable is initially rotating at 3.10 rad/s about a vertical axis through its center. Suddenly, a 70.0 kg parachutist makes a soft landing on the turntable at a point near the outer edge. Part A Find the angular speed of the turntable after the parachutist lands. (Assume that you can treat the...
positive direction) Multiple Choice 15% each! 1. A solid uniform sphere of mass 1.85 kg and diameter 45.0 cm spins about an axle through its center. Starting with an angular velocity of 2.40 revisit stops after turning through 18.2 rev with uniform acceleration. The net torque acting on this sphere as it is slowing down is dosest to (A) 0.0466 Nm (B) 0.00593 Nm (C) 0.0620 Nm (D) 0.149 Nm (E) 0.0372 Nm 2. If the torque on an object...
Constants Part A A solid, uniform cylinder with mass 8.30 kg and diameter 19.0 cm is spinning with angular velocity 205 rpm on a thin, frictionless axle that passes along the cylinder axis. You design a simple friction- brake to stop the cylinder by pressing the brake against the outer rim with a normal force. The coefficient of kinetic friction between the brake and rim is 0.345. What must the applied normal force be to bring the cylinder to rest...
