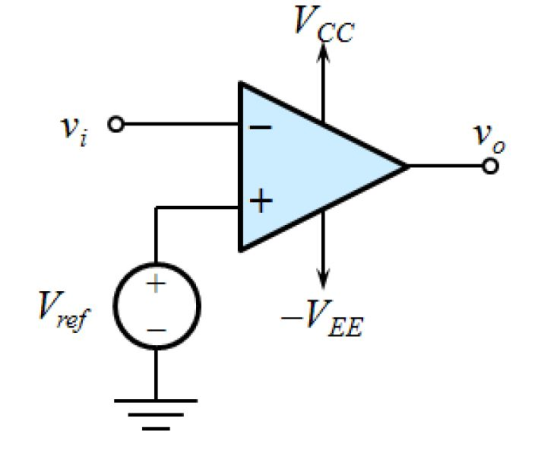

Assume the op-amp below is used as a comparator circuit and that
the op-amp is powered by a bipolar
+/- 15 V power supply. If the reference voltage Vref = -9 V and the
input voltage is VI = 12 V,
determine the output voltage, VO, of the op-amp. Assume the
open-loop gain, A, is very large and
consider saturation effects. Include units in your answer.
Homework Answers
Since the op-amp acts as a comparator as there is no feedback connection. Output will be either (+Vcc or -Vee) depending on the input.
If input at positive terminal is greater than input at negative terminal, output will be +Vcc else -Vee.
Here input at negative terminal= 12v
at positive terminal = -9v
Since voltage at negative terminal is higher
Output Vo = -15v
Add Answer to:
Assume the op-amp below is used as a comparator circuit and that
the op-amp is powered...
Need part 2. 3. In following circuit, (1) Assume the Op Amp is ideal, Ri= 10...
Need part 2.
3. In following circuit, (1) Assume the Op Amp is ideal, Ri= 10 k 2, R2 = 20 k 2, R;= 10 k 2 and R = 30 k12, find the voltage gain Vo/Vi and input resistance R. (8 pts) (2) Assume the Op Amp is not ideal, and the open-loop gain is As, R = 10 k 2, R2 = 20 k 2, R;= 10 ks2 and Ri= 30 ks2, find the voltage gain Vo/Vi and...
ECE 202- Experiment 3-PreLab Homework NTROD TION TOTHE INTEG IRO T OP AMP VOLTAGE COMPARATOR 1....
ECE 202- Experiment 3-PreLab Homework NTROD TION TOTHE INTEG IRO T OP AMP VOLTAGE COMPARATOR 1. Op Amp functions in two different modes, depending on the way it is connected in the circuit a) If there is no return loop, t is used to compare values of two input terminals (or as Explain how vo changes depending on the values of vi and v Vo . what are max and/or min values for v and vo? 2·The circuit shown below...
Q 1. An op amp with an open-loop gain of 6 x 105 and Vcc =...
Q 1. An op amp with an open-loop gain of 6 x 105 and Vcc = 10V has an output voltage of 3 V. If the voltage at the inverting input is -luV, what is the magnitude of the noninverting-input voltage? (5 points) Q2. The supply voltage of the op amp in the circuit of Figure 1 is 16 V. If R = 3kN, assign a resistance value to Rf so that the circuit would deliver 75 mW of power...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are:...
Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are: +V-15V and -Va-15V Use the node voltage method to find the following quantities: a) a b) Va c) Vo (you should get Vo -6.5 V) 50k Ω 30k Ω 10k Ω 10k Ω 0.5 v
1. Use supply voltage +/- 15V and design a comparator op-amp circuit where the output becomes...
1. Use supply voltage +/- 15V and design a comparator op-amp circuit where the output becomes maximum positive when the input is higher then 5V. 2. Sketch the output voltage relative to the input voltage of the circuit. 3. How can we get maximum negative output voltage when the input voltage is bigger then 5V?
An op-amp is to be selected for an inverting amplifier to be used at dc and...
An op-amp is to be selected for an inverting amplifier to be
used at dc and very low frequencies. A closed-loop nominal gain 0f
-100 is desired. Specifications indicate the minimum value of dc
open-loop gain cannot exceed 0.1dB. Assume in the design of problem
with the following additional specifications given:
dc output due to input offset voltage
100mV
dc output due to input offset voltage
5mV
Determine the maximum value of input offset voltage allowed for
the op-amp. If...
rer ab sa power originale! 2.59 An op-amp voltage follower is powered by £10-V power supplies....
rer ab sa power originale! 2.59 An op-amp voltage follower is powered by £10-V power supplies. The input is driven by a 5-V dc voltage source and the output feeds a 200-12 resistive load R. With R disconnected, the current Ip flowing from the positive supply into the op-amp equals the current In flowing from the op-amp into negative supply. (a) What is the difference between Ip and In with the load connected? (b) Compute the total power drawn from...
For the driven-right-leg system below along with its equivalent circuit, assume 4. R,-5M0(non-ideal input impedance of op-amp) db Rx Auxiliary op amp RL db R1 Vcm_ Vi R5 2 RF R4 Rx o v RG 0 7 RA Aux...
For the driven-right-leg system below along with its equivalent circuit, assume 4. R,-5M0(non-ideal input impedance of op-amp) db Rx Auxiliary op amp RL db R1 Vcm_ Vi R5 2 RF R4 Rx o v RG 0 7 RA Auxiliary Amplifier O VREF 2 R2 What are the benefits of using the driven-right-leg circuit? What is the value of the common-mode voltage if resistor RRL is tied to ground instead of the auxiliary amplifier? e.
For the driven-right-leg system below along...
What happens when vp>> vn? When vn>>vp? Consider the Op-Amp circuit in the open loop configuration....
What happens when vp>> vn? When vn>>vp?
Consider the Op-Amp circuit in the open loop configuration. The general curve for is shown to the right. Typically Op-Amps have very high open loop gain so their linear region is pretty small. This can make them very useful for detecting when vo > Vn and vice versa. (Hmmm I wonder if this could be helpful for the night light circuit design). Positive saturation region + | ooo Negative saturation region +-- Linear...
Need part 2.
3. In following circuit, (1) Assume the Op Amp is ideal, Ri= 10 k 2, R2 = 20 k 2, R;= 10 k 2 and R = 30 k12, find the voltage gain Vo/Vi and input resistance R. (8 pts) (2) Assume the Op Amp is not ideal, and the open-loop gain is As, R = 10 k 2, R2 = 20 k 2, R;= 10 ks2 and Ri= 30 ks2, find the voltage gain Vo/Vi and...
ECE 202- Experiment 3-PreLab Homework NTROD TION TOTHE INTEG IRO T OP AMP VOLTAGE COMPARATOR 1. Op Amp functions in two different modes, depending on the way it is connected in the circuit a) If there is no return loop, t is used to compare values of two input terminals (or as Explain how vo changes depending on the values of vi and v Vo . what are max and/or min values for v and vo? 2·The circuit shown below...
Q 1. An op amp with an open-loop gain of 6 x 105 and Vcc = 10V has an output voltage of 3 V. If the voltage at the inverting input is -luV, what is the magnitude of the noninverting-input voltage? (5 points) Q2. The supply voltage of the op amp in the circuit of Figure 1 is 16 V. If R = 3kN, assign a resistance value to Rf so that the circuit would deliver 75 mW of power...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are: +V-15V and -Va-15V Use the node voltage method to find the following quantities: a) a b) Va c) Vo (you should get Vo -6.5 V) 50k Ω 30k Ω 10k Ω 10k Ω 0.5 v
An op-amp is to be selected for an inverting amplifier to be
used at dc and very low frequencies. A closed-loop nominal gain 0f
-100 is desired. Specifications indicate the minimum value of dc
open-loop gain cannot exceed 0.1dB. Assume in the design of problem
with the following additional specifications given:
dc output due to input offset voltage
100mV
dc output due to input offset voltage
5mV
Determine the maximum value of input offset voltage allowed for
the op-amp. If...
rer ab sa power originale! 2.59 An op-amp voltage follower is powered by £10-V power supplies. The input is driven by a 5-V dc voltage source and the output feeds a 200-12 resistive load R. With R disconnected, the current Ip flowing from the positive supply into the op-amp equals the current In flowing from the op-amp into negative supply. (a) What is the difference between Ip and In with the load connected? (b) Compute the total power drawn from...
For the driven-right-leg system below along with its equivalent circuit, assume 4. R,-5M0(non-ideal input impedance of op-amp) db Rx Auxiliary op amp RL db R1 Vcm_ Vi R5 2 RF R4 Rx o v RG 0 7 RA Auxiliary Amplifier O VREF 2 R2 What are the benefits of using the driven-right-leg circuit? What is the value of the common-mode voltage if resistor RRL is tied to ground instead of the auxiliary amplifier? e.
For the driven-right-leg system below along...
What happens when vp>> vn? When vn>>vp?
Consider the Op-Amp circuit in the open loop configuration. The general curve for is shown to the right. Typically Op-Amps have very high open loop gain so their linear region is pretty small. This can make them very useful for detecting when vo > Vn and vice versa. (Hmmm I wonder if this could be helpful for the night light circuit design). Positive saturation region + | ooo Negative saturation region +-- Linear...
