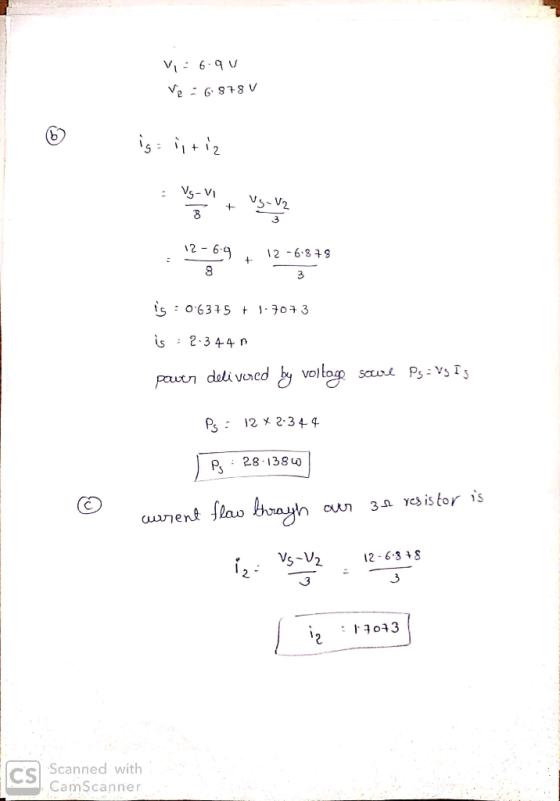

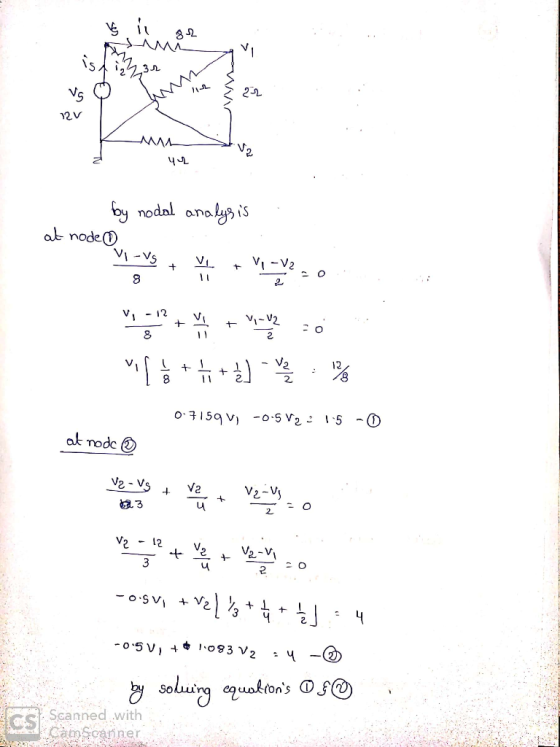

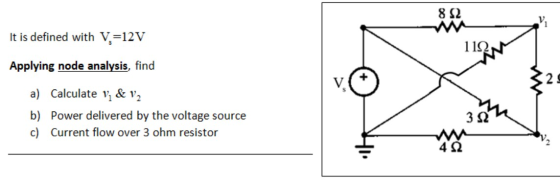

892 It is defined with Vi=12V 1192 Applying node analysis, find 29 a) Calculate v; &...
Question #1 C1 R1 L1 mm 0.1H V2 100 120Vrms 60Hz 0° v1 125UF = 12V...
Question #1 C1 R1 L1 mm 0.1H V2 100 120Vrms 60Hz 0° v1 125UF = 12V For the circuit shown in the above figure: 1) Calculate the current in the voltage source Vi. 2) Calculate the power dissipated in the resistor R1. 3) What is the voltage at the node between R1 and L1? Write the instantaneouse voltage at this node. 4) The current in C1 is Zero Ampere. Is this a true statement? If yes, explain why the current...
Please show any equation manipulation. Vi = 8 (V) Problem 1 R1 = 8 (1) V2...
Please show any equation manipulation.
Vi = 8 (V) Problem 1 R1 = 8 (1) V2 = 26 (V) HH V4 = 28 (V) Using Kirchhoff's rules in the circuit of image, A- Calculate the current in the circuit. B- Show the direction current in the circuit. C- Calculate the voltage across resistor R. D- Calculate the power delivered to R2 E- After 15 minutes of working of circuit, how much energy is delivered to resistor Rı? V3 = 20...
Use measured resistance values and node analysis to calculate the node voltages. Use measured resistance values...
Use measured resistance values and node analysis to calculate
the node voltages.
Use measured resistance values and mesh analysis to calculate
the mesh currents.
Show that the calculated values agree with the measured values
and explain any discrepancies between measured and calculated
values.
Introduction: In this pre-lab we will look at node voltages, mesh currents and bridge circuits. Bridge Circuits are used to make precision measurements, and in this lab -- -0 V2 will look at a DC Bridge Circuit...
4.22 a) Use the node-voltage method to find v, and a the power delivered by the...
4.22 a) Use the node-voltage method to find v, and a the power delivered by the 2 A current source sintax in the circuit in Fig. P4.22. Use node a as the reference node. b) Repeat part (a), but use node b as the refer- ence node. c) Compare the choice of reference node in (a) and (b). Which is better, and why? Figure P4.22 25 V 20Ω に! 2 A 150Ω 55Ω
Problem 2. Find the unknown node voltages of the network using nodal analysis. 2a). (25 points)...
Problem 2. Find the unknown node voltages of the network using nodal analysis. 2a). (25 points) Hint: convert the voltage source 15V to the current source points) Hint: convert the voltage source 15V to thec Answer: 612 612 Vi= Rs R 5 12 15 V 3A 7
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage...
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
PART A) Parameters Vi = 40 mV Ra = 15 kOhms Rb = 47 kOhms Rc...
PART A) Parameters
Vi = 40 mV
Ra = 15 kOhms
Rb = 47 kOhms
Rc = 68 kOhms
Rd = 3.3 kOhms
RL = 27 kOhms
-----------------------------------------------------------------------------------------------------------------------------------------
PART B) Parameters
Ix = 20 uA
Vy = 7 V
Ra = 39 kOhms
Rb = 220 kOhms
Rf = 68 kOhms
RL = 33 kOhms
Rc Ro WW kwt Rd Ra ww +1 OV. Vi + w4 RL Do: Find P, V, i,, P., and the voltage gain of the...
v=IXR w Tiny ! 23s 3300 4. By using mesh-current analysis. v = 12 V 4...
v=IXR w Tiny ! 23s 3300 4. By using mesh-current analysis. v = 12 V 4 100} ( a) Determine the value of i1, 12, and is b) Determine the value of vi and v2 c) Determine the power delivered by the source in the circuit KUL - mesh 1 Find the measure of the arc or central angle indicated. Assume that lines which appear to be diameters are actual diameters. 7) mHI
HighK_InvOA Rb Rc M Do: Find P, V., i,, P., and the voltage gain of the...
HighK_InvOA Rb Rc M Do: Find P, V., i,, P., and the voltage gain of the circuit, i.e. 4. = V. | (Volt) where P, is the power supplied by the input voltage source, V, and P is the power supplied by the output of the opamp. Note that P. is NOT the power absorbed by the load resistor, R. Hints: 1. To calculate P you will need the current supplied by the input voltage source. 2. The power supplied...
6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100...
6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100 , and R2 50 . Ry VR R.y 7. What is the output voltage (Vo) of the summing op-amp below? 1000 kn 200 k2 50 k2 +5 V 100 k2 -5 V V. out 8. For the operational amplifier circuit depicted below: a. Determine Vout in terms of the resistors: Ri, R2, R3, R4 and I R1 qut R- (current source) for the operational...
Question #1 C1 R1 L1 mm 0.1H V2 100 120Vrms 60Hz 0° v1 125UF = 12V For the circuit shown in the above figure: 1) Calculate the current in the voltage source Vi. 2) Calculate the power dissipated in the resistor R1. 3) What is the voltage at the node between R1 and L1? Write the instantaneouse voltage at this node. 4) The current in C1 is Zero Ampere. Is this a true statement? If yes, explain why the current...
Please show any equation manipulation.
Vi = 8 (V) Problem 1 R1 = 8 (1) V2 = 26 (V) HH V4 = 28 (V) Using Kirchhoff's rules in the circuit of image, A- Calculate the current in the circuit. B- Show the direction current in the circuit. C- Calculate the voltage across resistor R. D- Calculate the power delivered to R2 E- After 15 minutes of working of circuit, how much energy is delivered to resistor Rı? V3 = 20...
Use measured resistance values and node analysis to calculate
the node voltages.
Use measured resistance values and mesh analysis to calculate
the mesh currents.
Show that the calculated values agree with the measured values
and explain any discrepancies between measured and calculated
values.
Introduction: In this pre-lab we will look at node voltages, mesh currents and bridge circuits. Bridge Circuits are used to make precision measurements, and in this lab -- -0 V2 will look at a DC Bridge Circuit...
4.22 a) Use the node-voltage method to find v, and a the power delivered by the 2 A current source sintax in the circuit in Fig. P4.22. Use node a as the reference node. b) Repeat part (a), but use node b as the refer- ence node. c) Compare the choice of reference node in (a) and (b). Which is better, and why? Figure P4.22 25 V 20Ω に! 2 A 150Ω 55Ω
Problem 2. Find the unknown node voltages of the network using nodal analysis. 2a). (25 points) Hint: convert the voltage source 15V to the current source points) Hint: convert the voltage source 15V to thec Answer: 612 612 Vi= Rs R 5 12 15 V 3A 7
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
PART A) Parameters
Vi = 40 mV
Ra = 15 kOhms
Rb = 47 kOhms
Rc = 68 kOhms
Rd = 3.3 kOhms
RL = 27 kOhms
-----------------------------------------------------------------------------------------------------------------------------------------
PART B) Parameters
Ix = 20 uA
Vy = 7 V
Ra = 39 kOhms
Rb = 220 kOhms
Rf = 68 kOhms
RL = 33 kOhms
Rc Ro WW kwt Rd Ra ww +1 OV. Vi + w4 RL Do: Find P, V, i,, P., and the voltage gain of the...
v=IXR w Tiny ! 23s 3300 4. By using mesh-current analysis. v = 12 V 4 100} ( a) Determine the value of i1, 12, and is b) Determine the value of vi and v2 c) Determine the power delivered by the source in the circuit KUL - mesh 1 Find the measure of the arc or central angle indicated. Assume that lines which appear to be diameters are actual diameters. 7) mHI
HighK_InvOA Rb Rc M Do: Find P, V., i,, P., and the voltage gain of the circuit, i.e. 4. = V. | (Volt) where P, is the power supplied by the input voltage source, V, and P is the power supplied by the output of the opamp. Note that P. is NOT the power absorbed by the load resistor, R. Hints: 1. To calculate P you will need the current supplied by the input voltage source. 2. The power supplied...
6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100 , and R2 50 . Ry VR R.y 7. What is the output voltage (Vo) of the summing op-amp below? 1000 kn 200 k2 50 k2 +5 V 100 k2 -5 V V. out 8. For the operational amplifier circuit depicted below: a. Determine Vout in terms of the resistors: Ri, R2, R3, R4 and I R1 qut R- (current source) for the operational...
