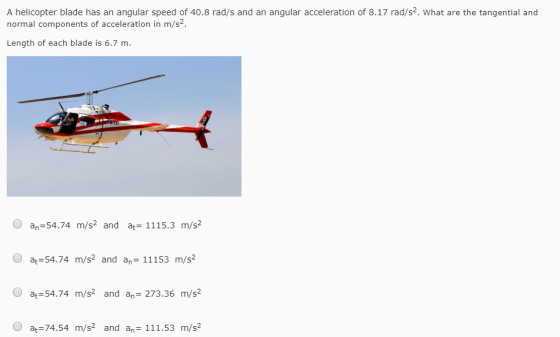

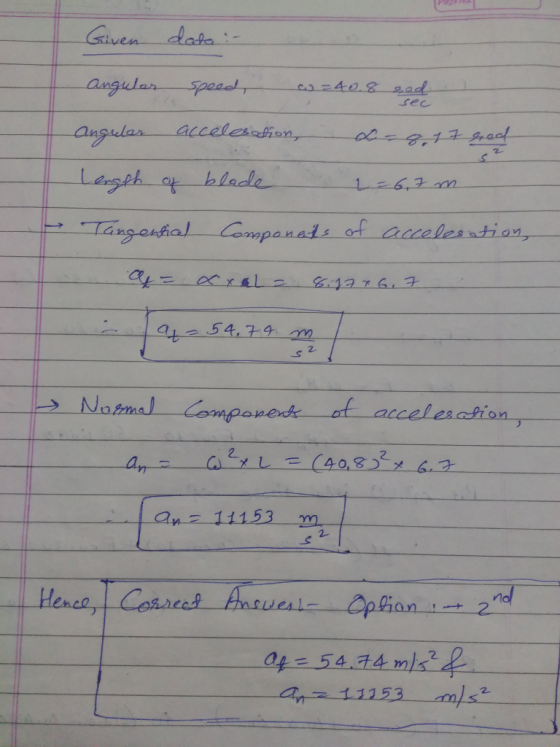

A helicopter blade has an angular speed of 40.8 rad/s and an angular acceleration of 8.17...
3. (12 pts.) A helicopter blade has an angular speed of o = 260 rev/min and has an angular acceleration of a=6.22 rad/s". For points 1 and 2 on the blade in the figure find the magnitudes of (a) the tangential speeds and (b) the tangential accelerations. 2 3.00 m 6.70 m
A helicopter propeller blade starts from rest and experiences a constant angular acceleration of 22.0 rad/s2. Find the speed of a point on the blade 2.30 m from the axis of rotation when the blade has completed 15 revolutions
A helicopter propeller blade starts from rest and experiences a constant angular acceleration of 16.5 rad/s2. Find the speed of a point on the blade 2.80 m from the axis of rotation when the blade has completed 17 revolutions.
a) The rotor of a helicopter is gaining angular speed with constant angular acceleration. At t = 0 it is rotating at 1.25 rad/s. From t = 0 to t = 2.00 s, the rotor rotates through 8.00 rad. What is the angular acceleration of the rotor? b) Through what angle (in radians) does the rotor rotate from t = 0 to t = 4.00 s? in radians c) Shortly after a vinyl record (radius 0.152 m) starts rotating on...
a cd has a initial velocity of 1 rad/s and is given an angular acceleration of =30 (rad/s2), where theta is is in rad. What is the magnitudes of the tangential and normal components of acceleration at point P that is on the edge of the CD after the CD completes one rotation. The radius is 0.4m
a cd has a initial velocity of 1 rad/s and is given an angular acceleration of \alpha=30 (rad/s2), where theta is is in rad. What is the magnitudes of the tangential and normal components of acceleration at point P that is on the edge of the CD after the CD completes one rotation. The radius is 0.4m
A fan blade is rotating with a constant angular acceleration of +8.5 rad/s2. At what point on the blade, as measured from the axis of rotation, does the magnitude of the tangential acceleration equal that of the acceleration due to gravity?
A platform is rotating with an angular speed of 3.00 rad/s and an angular acceleration of 11.0 rad/s2. At a point on the platform that is 1.96 m from the axis of rotation, what is the magnitude of the total acceleration a?
Helicopter blades withstand tremendous
stresses. In addition to supporting the weight of the helicopter,
they are spun at rapid rates and experience large centripetal
accelerations, especially at the tip. (a) Calculate the centripetal
acceleration, in m/s2, at the tip of a 4.30-meter-long helicopter
blade that rotates at 315 rev/min. 4679 Correct: Your answer is
correct. m/s2 (b) Compare the tangential speed of the tip with the
speed of sound (taken to be 340 m/s on this day).
Helicopter blades withstand...
A fan blade, initially at rest, rotates with a constant acceleration of 0.025 rad/s2. Whatis its angular speed at the instant it goes through an angular displacement of 4.2 revs?1.1 rad/s is the correct answer.
