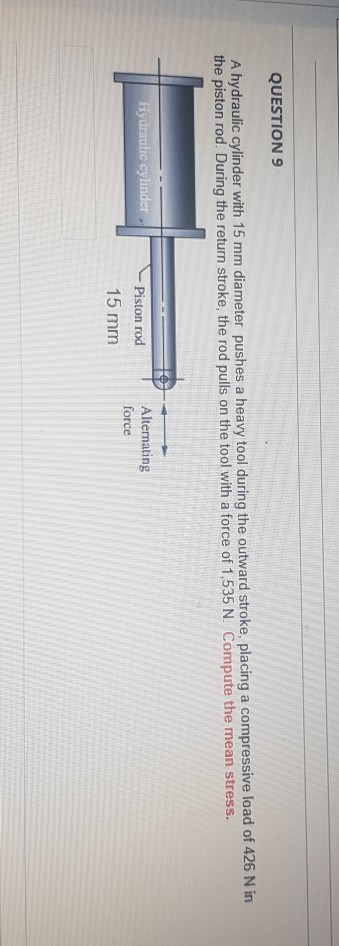

QUESTION 9 A hydraulic cylinder with 15 mm diameter pushes a heavy tool during the outward...
QUESTIONS A hydraulic cylinder with 15 mm diameter pushes a heavy tool during the outward stroke,...
QUESTIONS A hydraulic cylinder with 15 mm diameter pushes a heavy tool during the outward stroke, placing a compressive load of 402 N in the piston rod. During the return stroke, the rod pulls on the tool with a force of 1,513 N. Compute the mean stress. Hydraulic cylinder Piston rod 15 mm Alemating force

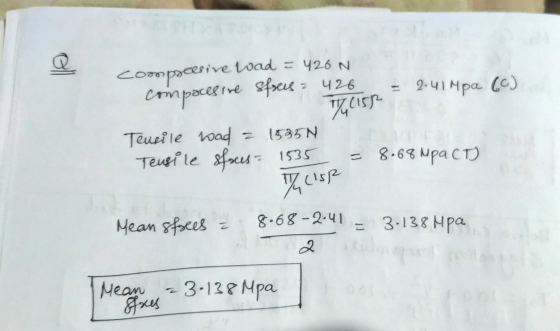

cylinder with 15 mm // copressive load 402 N // force 113 N QUESTION 2 A...
cylinder with 15 mm // copressive load 402 N // force 113
N
QUESTION 2 A hydraulic cylinder with 15 mm diame pushes a heavy tool during the the rod puts on the tool with a force of 1,513N Compute the meant word stroke, placing a compressive load o n the piston rod. During the return roke, - 15 mm QUESTION 2 A hydraulic cylinder with 15 mm diameter pushes a heavy tool during the outward stroke, placing a compressive...
A hydraulic cylinder pushes a heavy tool during the outward stroke, placing a compressive load of...
A hydraulic cylinder pushes a heavy tool during the outward stroke, placing a compressive load of 400lb in the piston rod. During the return stroke, the rod pulls on the tool with a force of 1500lb. Calculate the resulting design factor for the 0.6 in-diameter rod when subjected to this pattern of forces for many cycles. Discuss your result and justify if the design factor is appropriate, too low or too high. The material is SAE 4130 WQT 1300 steel....
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0...
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0 mm. Design the shaft to carry the given load if it is steady and the shaft is stationary. Make the dimension a as large as possible while keeping the stress safe. Determine the required diameter in the middle portion. The maximum fillet permissible is 2.0 mm. Use SAE 1137 cold-drawn steel. Use a design factor of 3 The material properties are as follows:- Q-1...
A cylinder is required to life a load of 120 kN in a system. Fluid pressure...
A cylinder is required to life a load of 120 kN in a system. Fluid pressure available is 15 Mpa. What cylinder size is required? A pump supplies oil at 0.0016 m3/s to a 40 mm diameter double acting hydraulic cylinder. If the load is 5000 N (extending and retracting) and the rod diameter is 20 mm, find the; (i) hydraulic pressure during the extending stroke; (ii) piston velocity during the extending stroke; (iii) cylinder kW power during the extending...
Following data refer to a four-stroke double-acting diesel engine having cylinder diameter 200 mm and piston...
Following data refer to a four-stroke double-acting diesel engine having cylinder diameter 200 mm and piston stroke 350 mm. m.e.p. on cover side -6.5 bar m.e.p. on crank side = 7 bar Speed = 420 r.p.m. Diameter of piston rod = 20 mm Dead load on the brake = 1370 N Spring balance reading = 145 N Brake wheel diameter = 1.2 m Brake rope diameter = 20 mm Calculate the mechanical efficiency of the engine.
Question 1 The stepped flat bar has a constant thickness of 8.0 mm. It carries three concentrated loads as shown...
Question 1 The stepped flat bar has a constant thickness of 8.0 mm. It carries three concentrated loads as shown. Let P 200 N, L 180 mm, L, = 80 mm, and Ls 40 mm. Compute the maximum stress due to bending and state where it occurs. Note: The bar is braced against lateral bending and twisting. 100 mm 140 mm 1CX) mm 140 mm 2P Flat plate r3 mm t8 mm typical 12 m 24 mm-36 mm 48 mm...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl space-saver range, as can be found in their Star2.pdf catalogue, www.starcyl.com. Some pneumatic cylinders can have a push/pull rod (item I in Figure 1) protruding from either head (item A in Figure 1), but this cylinder clearly has only one, making it a “single rod end” type of cylinder. This cylinder is however “double acting”, which means it can be pressurised on either side...
You purchase a rectangular piece of metal that has dimensions 10.0 mm × 10.0 mm ×...
You purchase a rectangular piece of metal that has dimensions 10.0 mm × 10.0 mm × 25.0 mm and mass 1.92×10−2 kg . The seller tells you that the metal is gold. To check this, you compute the average density of the piece. What value do you get? Were you cheated? yes or no 6 of 15 Constants You are designing a hydraulic lift for an automobile garage. It will consist of two oil-filled cylindrical pipes of different diameters. A...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm and yield strength of 240 N/mm², the following machining data were used: Rake angle = 12°C Spindle speed = 950 rev/min Chip thickness ratio = 0.25 mm Depth of cut = 0.8 mm Width of cut = 5.0 mm Horizontal component of the cutting force = 1000 N The vertical component of the cutting force = 1400 N Calculate the following: (a) Shear plane...
QUESTIONS A hydraulic cylinder with 15 mm diameter pushes a heavy tool during the outward stroke, placing a compressive load of 402 N in the piston rod. During the return stroke, the rod pulls on the tool with a force of 1,513 N. Compute the mean stress. Hydraulic cylinder Piston rod 15 mm Alemating force
cylinder with 15 mm // copressive load 402 N // force 113
N
QUESTION 2 A hydraulic cylinder with 15 mm diame pushes a heavy tool during the the rod puts on the tool with a force of 1,513N Compute the meant word stroke, placing a compressive load o n the piston rod. During the return roke, - 15 mm QUESTION 2 A hydraulic cylinder with 15 mm diameter pushes a heavy tool during the outward stroke, placing a compressive...
A hydraulic cylinder pushes a heavy tool during the outward stroke, placing a compressive load of 400lb in the piston rod. During the return stroke, the rod pulls on the tool with a force of 1500lb. Calculate the resulting design factor for the 0.6 in-diameter rod when subjected to this pattern of forces for many cycles. Discuss your result and justify if the design factor is appropriate, too low or too high. The material is SAE 4130 WQT 1300 steel....
The shaft shown in Figure is supported by bearings cach end, which have bores of 20.0 mm. Design the shaft to carry the given load if it is steady and the shaft is stationary. Make the dimension a as large as possible while keeping the stress safe. Determine the required diameter in the middle portion. The maximum fillet permissible is 2.0 mm. Use SAE 1137 cold-drawn steel. Use a design factor of 3 The material properties are as follows:- Q-1...
Following data refer to a four-stroke double-acting diesel engine having cylinder diameter 200 mm and piston stroke 350 mm. m.e.p. on cover side -6.5 bar m.e.p. on crank side = 7 bar Speed = 420 r.p.m. Diameter of piston rod = 20 mm Dead load on the brake = 1370 N Spring balance reading = 145 N Brake wheel diameter = 1.2 m Brake rope diameter = 20 mm Calculate the mechanical efficiency of the engine.
Question 1 The stepped flat bar has a constant thickness of 8.0 mm. It carries three concentrated loads as shown. Let P 200 N, L 180 mm, L, = 80 mm, and Ls 40 mm. Compute the maximum stress due to bending and state where it occurs. Note: The bar is braced against lateral bending and twisting. 100 mm 140 mm 1CX) mm 140 mm 2P Flat plate r3 mm t8 mm typical 12 m 24 mm-36 mm 48 mm...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm and yield strength of 240 N/mm², the following machining data were used: Rake angle = 12°C Spindle speed = 950 rev/min Chip thickness ratio = 0.25 mm Depth of cut = 0.8 mm Width of cut = 5.0 mm Horizontal component of the cutting force = 1000 N The vertical component of the cutting force = 1400 N Calculate the following: (a) Shear plane...
