Homework Answers
We have 40 g of tin and 10 g of lead, wich makes 50 g of material.
%Pb=10 g/50 g *100
%Pb=20%
Add Answer to:

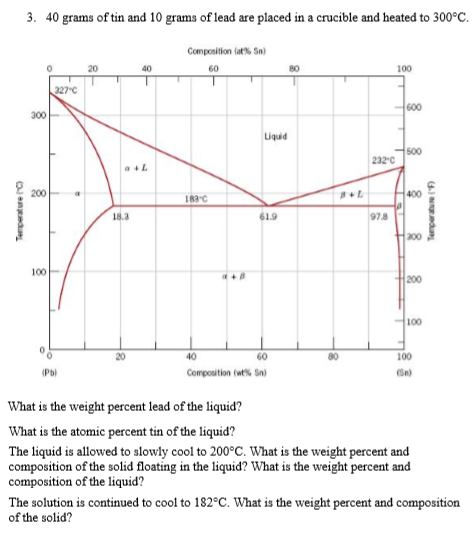

3. 40 grams of tin and 10 grams of lead are placed in a crucible and...
A lead-tin alloy of composition 30 wt% Sn-70 wt% Pb is slowly heated from a temperature...
A lead-tin alloy of composition 30 wt% Sn-70 wt% Pb is slowly heated from a temperature of 150°C (300°F) (a) At what temperature does the first liquid phase form? (b) What is the composition of this liquid phase? (c) At what temperature does complete melting of the alloy occur? (d) What is the composition of the last solid remaining prior to complete melting? Composition (at% Sn) 40 100 327C 300 500 232 C 400 183°C 18.3 61.9 97.8 300 100...
14. Use the lead-tin phase diagram (below). A Sn-Pb alloy is heated to a temperature within...
14. Use the lead-tin phase diagram (below). A Sn-Pb alloy is heated to a temperature within the a liquid phase region. If the composition of the a phase is 10 wt% Sn, determine: a. The temperature of the alloy b. The composition of the liquid phase c. What is the maximum solubility of Sn in a and Pb in B? d. What is the eutectic composition for the Pb-Sn system? Composition (at% Sn) 0 20 40 60 80 100 327°C...
14. Use the lead-tin phase diagram (below). A Sn-Pb alloy is heated to a temperature within...
14. Use the lead-tin phase diagram (below). A Sn-Pb alloy is heated to a temperature within the a+ liquid phase region. If the composition of the a phase is 10 wt% Sn, determine: The temperature of the alloy 275°C b. The composition of the liquid phase a. c. What is the maximum solubility of Sn in a and Pb in B? Sna = 18.3% Pog: 2.2 % d. What is the eutectic composition for the Pb-Sn system? Sn = 61.9%...
structure and properties of materials Question 2: (12 points: 4 pts each) For a Lead-Tin (Pb-Sn)...
structure and properties of materials
Question 2: (12 points: 4 pts each) For a Lead-Tin (Pb-Sn) alloy of composition 20 wt% Sn - 80 wt% Pb and at 182 °C determine the followings: Show your calculation details in your answer and draw lines on the phase diagram to label the phases and compositions. a) Determine the mass fractions of a and B phases. b) Determine the mass fractions of primary a and eutectic microconstituents. c) Determine the mass fraction of...
(12 Question 2: points: 4 pts each) For a Lead-Tin (Pb-Sn) alloy of composition 85 wt%...
(12 Question 2: points: 4 pts each) For a Lead-Tin (Pb-Sn) alloy of composition 85 wt% Sn - 15 wt % Pb and at 182 °C determine the followings: Show your calculation details in your answer and draw lines on the phase diagram to label the phases and compositions. a) Determine the mass fractions of a and B phases. b) Determine the mass fractions of primary B and eutectic microconstituents. c) Determine the mass fraction of eutectic B. Composition (at%...
For a lead-tin alloy of composition 40 wt% Sn–60 wt% Pb with a total mass of...
For a lead-tin alloy of composition 40 wt% Sn–60 wt% Pb with a total mass of 2.8 kg at 180°C (355°F): (a) Determine the mass of the a and ß phases. (b) What is the primary phase present for this alloy? (c) Determine the mass of the primary phase and the eutectic microconstituents. (d) Determine the mass of eutectic a. Composition (at% Sn) 40 60 80 100 o 20 327°C 600 300 Liquid 500 232°C a + L 200 a...
- 20 40 Composition (at"% Sn) 60 327°C Liquid 500 232°C 183°C Temperature (°C) Temperature (°F)...
- 20 40 Composition (at"% Sn) 60 327°C Liquid 500 232°C 183°C Temperature (°C) Temperature (°F) 19.3 61.9 20 60 80 100 (Sn) Composition (wt% Sn) A lead-tin alloy of composition Pb-30%Sn is slowly cooled from a temperature of 300°C. Use the phase diagram given to determine... 1. Is the alloy hypo- or hyper-eutectic? 2. What is the composition of the first solid phase to form during freezing? 3. What is the composition of each phase present at 100 °C?...
Problem 1 (Chapter 10). For a lead-tin alloy of composition 45 wt% Sn - 55 wt%...
Problem 1 (Chapter 10). For a lead-tin alloy of composition 45 wt% Sn - 55 wt% Pb at 180°C, do the following (except (e)); (a) Determine the mass fractions of the a and 3 phases. (b) Determine the mass fractions of primary (pro-eutectic) a and eutectic micro-constituents. (c) Determine the mass fraction of eutectic a. (d) For a photomicrograph of the alloy shown below, please label all micro-constituents and indicate their approximate compositions. (e) Draw the sketch of a photomicrograph...
l . A lead-tin alloy of composition 30 wt'% Sn-70 wt% Pb is slowly heated from...
l . A lead-tin alloy of composition 30 wt'% Sn-70 wt% Pb is slowly heated from a temperature of 150 °C (300 °F) (a) At what temperature does the first liquid phase form? (b) What is the composition of this liquid phase? (c) At what temperature does complete melting of the alloy occur? (d) What is the composition of the last solid remaining prior to complete melting? Composition sn) 40 60 80 100 327 C Last solid 3w1% in) -600...
For a lead-tin alloy of composition Pb-30 wt.% Sn are heated to 300°C and slowly cooling...
For a lead-tin alloy of composition Pb-30 wt.% Sn are heated to 300°C and slowly cooling down to room temperature. A Eutectic phase diagram of lead-tin alloy is shown in figure 3. What are the expected phases at 250°C, 150°C and at room temperature and estimate approximate phase fractions at these temperatures. Schematically draw the microstructures that would form at 250°C, 150°C and at room temperature. For a lead-tin alloy of composition Pb-30 wt.% Sn are heated to 300°C and...
A lead-tin alloy of composition 30 wt% Sn-70 wt% Pb is slowly heated from a temperature of 150°C (300°F) (a) At what temperature does the first liquid phase form? (b) What is the composition of this liquid phase? (c) At what temperature does complete melting of the alloy occur? (d) What is the composition of the last solid remaining prior to complete melting? Composition (at% Sn) 40 100 327C 300 500 232 C 400 183°C 18.3 61.9 97.8 300 100...
14. Use the lead-tin phase diagram (below). A Sn-Pb alloy is heated to a temperature within the a liquid phase region. If the composition of the a phase is 10 wt% Sn, determine: a. The temperature of the alloy b. The composition of the liquid phase c. What is the maximum solubility of Sn in a and Pb in B? d. What is the eutectic composition for the Pb-Sn system? Composition (at% Sn) 0 20 40 60 80 100 327°C...
14. Use the lead-tin phase diagram (below). A Sn-Pb alloy is heated to a temperature within the a+ liquid phase region. If the composition of the a phase is 10 wt% Sn, determine: The temperature of the alloy 275°C b. The composition of the liquid phase a. c. What is the maximum solubility of Sn in a and Pb in B? Sna = 18.3% Pog: 2.2 % d. What is the eutectic composition for the Pb-Sn system? Sn = 61.9%...
structure and properties of materials
Question 2: (12 points: 4 pts each) For a Lead-Tin (Pb-Sn) alloy of composition 20 wt% Sn - 80 wt% Pb and at 182 °C determine the followings: Show your calculation details in your answer and draw lines on the phase diagram to label the phases and compositions. a) Determine the mass fractions of a and B phases. b) Determine the mass fractions of primary a and eutectic microconstituents. c) Determine the mass fraction of...
(12 Question 2: points: 4 pts each) For a Lead-Tin (Pb-Sn) alloy of composition 85 wt% Sn - 15 wt % Pb and at 182 °C determine the followings: Show your calculation details in your answer and draw lines on the phase diagram to label the phases and compositions. a) Determine the mass fractions of a and B phases. b) Determine the mass fractions of primary B and eutectic microconstituents. c) Determine the mass fraction of eutectic B. Composition (at%...
For a lead-tin alloy of composition 40 wt% Sn–60 wt% Pb with a total mass of 2.8 kg at 180°C (355°F): (a) Determine the mass of the a and ß phases. (b) What is the primary phase present for this alloy? (c) Determine the mass of the primary phase and the eutectic microconstituents. (d) Determine the mass of eutectic a. Composition (at% Sn) 40 60 80 100 o 20 327°C 600 300 Liquid 500 232°C a + L 200 a...
- 20 40 Composition (at"% Sn) 60 327°C Liquid 500 232°C 183°C Temperature (°C) Temperature (°F) 19.3 61.9 20 60 80 100 (Sn) Composition (wt% Sn) A lead-tin alloy of composition Pb-30%Sn is slowly cooled from a temperature of 300°C. Use the phase diagram given to determine... 1. Is the alloy hypo- or hyper-eutectic? 2. What is the composition of the first solid phase to form during freezing? 3. What is the composition of each phase present at 100 °C?...
Problem 1 (Chapter 10). For a lead-tin alloy of composition 45 wt% Sn - 55 wt% Pb at 180°C, do the following (except (e)); (a) Determine the mass fractions of the a and 3 phases. (b) Determine the mass fractions of primary (pro-eutectic) a and eutectic micro-constituents. (c) Determine the mass fraction of eutectic a. (d) For a photomicrograph of the alloy shown below, please label all micro-constituents and indicate their approximate compositions. (e) Draw the sketch of a photomicrograph...
l . A lead-tin alloy of composition 30 wt'% Sn-70 wt% Pb is slowly heated from a temperature of 150 °C (300 °F) (a) At what temperature does the first liquid phase form? (b) What is the composition of this liquid phase? (c) At what temperature does complete melting of the alloy occur? (d) What is the composition of the last solid remaining prior to complete melting? Composition sn) 40 60 80 100 327 C Last solid 3w1% in) -600...
For a lead-tin alloy of composition Pb-30 wt.% Sn are heated to 300°C and slowly cooling down to room temperature. A Eutectic phase diagram of lead-tin alloy is shown in figure 3. What are the expected phases at 250°C, 150°C and at room temperature and estimate approximate phase fractions at these temperatures. Schematically draw the microstructures that would form at 250°C, 150°C and at room temperature. For a lead-tin alloy of composition Pb-30 wt.% Sn are heated to 300°C and...
