1. If you want to build an RLC circuit exhibiting critical damping behavior with a capacitor that has a capacitance of 25 μF
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

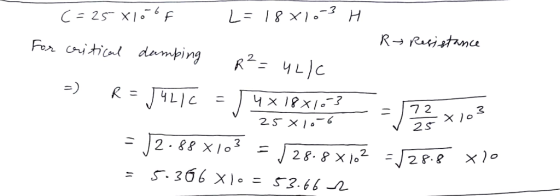

Answer #1

-3 2 2 S

0 0
Add a comment
Know the answer?
Add Answer to:
1. If you want to build an RLC circuit exhibiting critical damping behavior with a capacitor...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A series RLC circuit has a capacitor with a capacitance of 31.0 μF , an inductor...

    A series RLC circuit has a capacitor with a capacitance of 31.0 μF , an inductor with an inductance of 0.600 H and a resistor with a resistance of 88.0 Ω. The circuit has a rms current of 9.00 A when the frequency is 71.0 Hz. What is εrms?

  • A series RLC circuit has a capacitor with a capacitance of 19.0 μF , an inductor...

    A series RLC circuit has a capacitor with a capacitance of 19.0 μF , an inductor with an inductance of 1.40 H and a resistor with a resistance of 58.0 Ω. The circuit has a rms current of 5.60 A when the frequency is 95.0 Hz. What is the phase angle?

  • A series RLC circuit has a capacitor with a capacitance of 48.0 μF , an inductor...

    A series RLC circuit has a capacitor with a capacitance of 48.0 μF , an inductor with an inductance of 0.800 H and a resistor with a resistance of 140. Ω. The circuit has a rms current of 6.90 A when the frequency is 56.0 Hz. What is the phase angle?

  • A series RLC circuit has a capacitor with a capacitance of 36.0 μF , an inductor...

    A series RLC circuit has a capacitor with a capacitance of 36.0 μF , an inductor with an inductance of 0.700 H and a resistor with a resistance of 143 Ω. The circuit is attached to a source that has a rms voltage of 65.0 V and a frequency of 91.0 Hz. What is the peak current?

  • Consider a mixed RLC circuit where an ideal capacitor of capacitance C = 73.0 ?F and...

    Consider a mixed RLC circuit where an ideal capacitor of capacitance C = 73.0 ?F and an ideal inductor of inductance L = 455.0 mH are connected in parallel, and their combination is in series with a resistor of resistance R = 222.0 ?.What is the angular resonance frequency ? of this mixed RLC circuit

  • A series RLC circuit has a capacitor with a capacitance of 25.0 pF, an inductor with...

    A series RLC circuit has a capacitor with a capacitance of 25.0 pF, an inductor with an inductance of 1.10 H and a resistor with a resistance of 68.0 2. The circuit is attached to a source that has a rms voltage of 58.0 V and a frequency of 75.0 Hz. What is the phase angle?

  • We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...

    We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...

  • Function Generatr Inductor Model Ra R, Figure 1 Series RLC Circuit Preliminary This laboratory wi...

    Function Generatr Inductor Model Ra R, Figure 1 Series RLC Circuit Preliminary This laboratory will demonstrate how varying resistance changes the natural response of a series RLC circuit (Fig. 1). The function generator is modeled as an ideal voltage source v(t) 5 u() V in series with source resistance Rs-50Q. After measurements using an LCR meter, the inductor is modeled as an ideal L 90 mH inductor in series with resistance RL-20Q. The capacitance is C-0.22 μF. 1) Calculate the...

  • Please Give Me the ANS only Choose the correct answer. 1. An RLC circuit with output...

    Please Give Me the ANS only Choose the correct answer. 1. An RLC circuit with output on the capacitor is a... a) low pass filter b) high pass filter c) band pass filter d) band stop filter 2. To build a RLC low pass circuit the output has to be taken on... a) the resistor b) the inductor c) the capacitor d) capacitor & inductor 3. In an RLC circuit if R-20092, L=0.9mH and C-40uF what is the value of...

  • A series RLC circuit is driven by an alternating source at a frequency of 296 Hz...

    A series RLC circuit is driven by an alternating source at a frequency of 296 Hz and an emf amplitude of 78.2 V. The resistance is 27.1 Ω, the capacitance is 10.5 µF, and the inductance is 25.5 mH. What is the rms potential difference across (a) the resistor, (b) the capacitor, and (c) the inductor? (d) What is the average rate at which energy is dissipated?
