Question

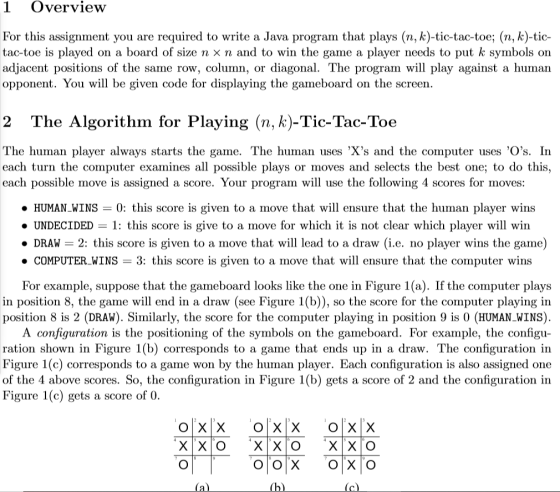

1 Overview For this assignment you are required to write a Java program that plays (n, k)-tic-tac-toe; (n, k)-tic- tac-toe is played on a board of size n x n and to win the game a player needs to put k symbols on adjacent positions of the same row, column, or diagonal. The program will play against a human opponent. You will be given code for displaying the gameboard on the screen. 2 The Algorithm for Playing (n, k)-Tic-Tac-Toe The human player always starts the game. The human uses 'X's and the computer uses 'O's. In each turn the computer examines all possible plays or moves and selects the best one; to do this, each possible move is assigned a score. Your program will use the following 4 scores for moves: • HUMAN_WINS = 0: this score is given to a move that will ensure that the human player wins • UNDECIDED = 1: this score is give to a move for which it is not clear which player will win • DRAW = 2: this score is given to a move that will lead to a draw (i.e. no player wins the game) • COMPUTER_WINS = 3: this score is given to a move that will ensure that the computer wins For example, suppose that the gameboard looks like the one in Figure 1(a). If the computer plays in position 8, the game will end in a draw (see Figure 1(b)), so the score for the computer playing in position 8 is 2 (DRAW). Similarly, the score for the computer playing in position 9 is 0 (HUMAN_WINS). A configuration is the positioning of the symbols on the gameboard. For example, the configu- ration shown in Figure 1(b) corresponds to a game that ends up in a draw. The configuration in Figure 1(c) corresponds to a game won by the human player. Each configuration is also assigned one of the 4 above scores. So, the configuration in Figure 1(b) gets a score of 2 and the configuration in Figure 1(c) gets a score of 0. 'olx'x 'x'x O 07 o'xlx 'X 'x'o olx olxlx 'X'X 'O olxlo (a). (1) (c)

Answer 1

The code consists of a total of 9 .java classes which includes the 3 basic classes as per the question(with all the required functionalities).

To run the code:

$ java Play <board size> <inline to win> <depth> <blocked spots ...>

Example, for basic 3*3 tic tac toe board:

$ java Play 3 3 3

All the codes with the file names are given below.

Filename: nk_TicTacToe.java

public class nk_TicTacToe {

private char[][] gameBoard; // GameBoard
private int inLine; // Required number of squares in a row to win
public nk_TicTacToe (int board_size, int inline, int max_levels) {

// Create a new Game Board of size board_size
gameBoard = new char[board_size][board_size];

// Fill board with empty characters
for (int i = 0; i < board_size; i++) {
for (int j = 0; j < board_size; j++) {
gameBoard[i][j] = ' ';
}
}

inLine = inline;
}
public Dictionary createDictionary() {
Dictionary dictionary = new Dictionary(4599);
return dictionary;
}
public int repeatedConfig(Dictionary configurations) {
String board = getGBString();

if(configurations.get(board) != null){
return configurations.get(board).getScore();

} else {
return -1;

}
}
public void insertConfig(Dictionary configurations, int score, int level){
String board = getGBString();

try {
configurations.put(new Record(board, score, level));
} catch (DuplicatedKeyException e) {
System.err.println(e.getMessage());
}
}
public void storePlay (int row, int col, char symbol) {
gameBoard[row][col] = symbol;
}
public boolean squareIsEmpty (int row, int col){

try {
return gameBoard[row][col] == ' ';
} catch (Exception e) {
return false;
}
}
public boolean wins (char symbol) {

int inlineCount = 0; // Records the number in a row

// Checks each Row for a win
for (int i = 0; i < gameBoard.length; i++) {

// Reset the counter for the row
inlineCount = 0;

for (int j = 0; j < gameBoard.length; j++) {
if (gameBoard[i][j] == symbol) {
inlineCount = inlineCount + 1; // Add one onto count

} else {
inlineCount = 0; // Reset count
}

if (inlineCount == getInLine()) { // Check if count is enough to win
return true;
}
}
}

// Checks each Column for a win
for (int k = 0; k < gameBoard.length; k++) {

// Reset the counter for the row
inlineCount = 0;

for (int l = 0; l < gameBoard.length; l++) {
if (gameBoard[l][k] == symbol) {
inlineCount = inlineCount + 1; // Add one onto count

} else {
inlineCount = 0; // Reset count
}

if (inlineCount == getInLine()) { // Check if count is enough to win
return true;
}
}
}

// Check Left Diagonal (top half - Along rows - Descending)
for (int m = 0; m < gameBoard.length; m++) {
inlineCount = 0;
if((gameBoard.length - m) >= inLine){
for (int n = 0; n < gameBoard.length; n++) {

if ( (m + n) < gameBoard.length) { // Keep index in array bounds
if (gameBoard[n][n + m] == symbol) {
inlineCount = inlineCount + 1; // Add one onto count

} else {
inlineCount = 0; // Reset count
}

if (inlineCount == getInLine()) { // Check if count is enough to win
return true;
}
} else {
inlineCount = 0;
}
}
}
}

// Check Left Diagonal (bottom half - Along Columns - Descending)
for (int m = 0; m < gameBoard.length; m++) {
inlineCount = 0;
if((gameBoard.length - m) >= inLine){
for (int n = 0; n < gameBoard.length; n++) {

if ( (m + n) < gameBoard.length) { // Keep index in array bounds
if (gameBoard[n + m][n] == symbol) {
inlineCount = inlineCount + 1; // Add one onto count

} else {
inlineCount = 0; // Reset count
}

if (inlineCount == getInLine()) { // Check if count is enough to win
return true;
}
} else {
inlineCount = 0;
}
}
}
}
// Check Left Diagonal (top half - Along Rows - Ascending)
for (int q = 0; q < gameBoard.length; q++) {
inlineCount = 0;
if((gameBoard.length - q) >= getInLine()){
for (int r = gameBoard.length - 1; r >= 0; r--) {

if ( (r - q) >= 0) { // Keep index in array bounds
if (gameBoard[gameBoard.length-r-1][r - q] == symbol) {
inlineCount = inlineCount + 1; // Add one onto count

} else {
inlineCount = 0; // Reset count
}

if (inlineCount == getInLine()) { // Check if count is enough to win
return true;
}

}

}
}
}

// Check Left Diagonal (top half - Along Columns - Ascending)
for (int q = 0; q < gameBoard.length; q++) {
inlineCount = 0;
if((gameBoard.length - q) >= getInLine()){
for (int r = gameBoard.length - 1; r >= 0; r--){

if ( (r - q) >= 0 && gameBoard.length-r < gameBoard.length) { // Keep index in array bounds
if (gameBoard[r-q][gameBoard.length-r] == symbol) {
inlineCount = inlineCount + 1; // Add one onto count

} else {
inlineCount = 0; // Reset count
}

if (inlineCount == getInLine()) { // Check if count is enough to win
return true;
}

}

}
}
}

return false;
}

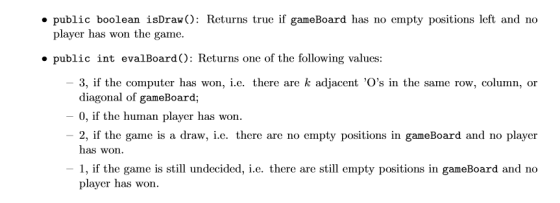

public boolean isDraw(){

// Check for empty spots
for (int i = 0; i < gameBoard.length; i++) {
for (int j = 0; j < gameBoard.length; j++) {
if (getTileType(i,j) == ' '){
return false;

}
}
}

// Check if player or computer has won the game
if (wins('o') || wins('x')) {
return false;
}

// Otherwise, return it's a draw
return true;
}
public int evalBoard(){

if (wins('o')){
return 3;

} else if (wins('x')) {
return 0;

} else if (isDraw()) {
return 1;

} else {
return 2;
}

}
private String getGBString(){
String board = "";

// Iterate through board double array
for (int i = 0; i < gameBoard.length; i++){
for (int j = 0; j < gameBoard.length; j++){
// Add onto board string
board = board + gameBoard[i][j];
}
}

return board;
}
private int getTileType(int row, int col){
try {
// Attempt to look up tile type and return it
return gameBoard[row][col];
} catch (IndexOutOfBoundsException e) {
// If out of bounds, return blocked (since this cannot be played)
return 'b';
}
}
private int getInLine(){
return inLine;
}
}

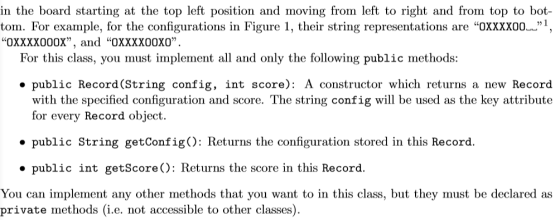

Filename: Record.java

public class Record {

private String config;
private int score;
private int level;
public Record(String config, int score, int level){
this.config = config;
this.score = score;
this.level = level;

}
public String getConfiguration(){
return config;
}
public int getScore() {
return score;
}
public int getLevel() {
return level;
}

}

Filename: DictionaryADT.java

public interface DictionaryADT {
public int put (Record record) throws DuplicatedKeyException;

public void remove (String config) throws InexistentKeyException;

public Record get (String config);

public int numElements();
}

Filename: Dictionary.java

public class Dictionary implements DictionaryADT {

private Node[] table;
private int tableSize;
private int elements;

public Dictionary(int tableSize) {
this.tableSize = tableSize;
table = new Node[tableSize];
}
private int hashFunction(String config) {

int hashKey = 0;

for (int i = 0; i < config.length(); i++) {
hashKey = (hashKey * 43 ) % tableSize;
hashKey += (int) config.charAt(i);
}

return hashKey % tableSize;
}
public int put(Record record) throws DuplicatedKeyException {

int hashKey = hashFunction(record.getConfiguration());

// Check if config is already in the table
if(get(record.getConfiguration()) != null) {
throw new DuplicatedKeyException("config is already in the table");
}

// Key is empty, create a new node
if (table[hashKey] == null){
table[hashKey] = new Node(record);
return 0;
} else {

// Get the Front of the Linked List
Node currentRecord = table[hashKey];
while (currentRecord.getNext() != null) {

// Iterate until end
currentRecord = currentRecord.getNext();
}

currentRecord.setNext(new Node(record));
this.elements = numElements() + 1;
}

return 1;
}
public void remove(String config) throws InexistentKeyException {

int hashKey = hashFunction(config);

Node currentNode = table[hashKey];

if (currentNode == null) {
throw new InexistentKeyException("config not found in the table");
}
while (currentNode != null) {
if (currentNode.getRecord().getConfiguration().equals(config)) {
table[hashKey] = currentNode.getNext();
break;
} else {
currentNode = currentNode.getNext();
}
}
}
public Record get(String config) {

int hashKey = hashFunction(config);

Node currentNode = table[hashKey];

while (currentNode != null) {
if (currentNode.getRecord().getConfiguration().equals(config)) {
return currentNode.getRecord();

} else {
currentNode = currentNode.getNext();
}
}

return null;
}
public int numElements() {
return elements;
}
}

Filename: DuplicatedKeyException.java

public class DuplicatedKeyException extends Exception {

public DuplicatedKeyException (String message) {
super(message);
}
}

Filename: InexistentKeyException.java

public class InexistentKeyException extends Exception {
public InexistentKeyException (String message) {
super(message);
}
}

Filename: Node.java

public class Node {

private Record record; // Info (TTTRecord) to store in the Node
private Node nextNode; // the next connected node

public Node(Record record){
this.record = record;
this.nextNode = null;
}
public Node getNext() {
return nextNode;
}
public void setNext(Node next){
this.nextNode = next;
}
public Record getRecord() {
return record;
}
public void setRecord(Record newRecord) {
this.record = newRecord;
}
}

Filename: Play.java

import java.awt.Container;
import java.awt.GridLayout;
import java.awt.event.*;
import javax.swing.Icon;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import java.util.*;
import java.io.*;

public class Play extends JFrame {
static final long UID = 0;

// Characters
private final char COMP = 'o';
private final char HUMAN = 'x';
private final char BLOCKED = 'b';

// Timers
private final int MIN_DELAY = 300; // Delay before computer shows move
private final int MAX_COMP_MOVES = 10000; // Number of move tries before computer gives up

// GUI
private JButton[][] gameDisplay; // Game Board
private nk_TicTacToe TTT; // Tic Tac Toe Class

private int maxLevel; // Max level of tree
private Dictionary configurations;
private int numBlockedPos; // Number of positions to block

private int blockedPos []; // Blocked Positions

private ClickHandler handler;

private int numCalls = 0;
private boolean thinking = false;

public Play (int size, int toWin, int depth, int num, int[] blocked) {
Container c = getContentPane();
c.setLayout(new GridLayout(size, size));
gameDisplay = new JButton[size][size];
Icon emptySquare = new ImageIcon("empty.gif");
handler = new ClickHandler(size);

       /* Board is represented as a grid of clickable buttons */
for (int i = 0; i < size; i++)
for (int j = 0; j < size; j++) {
gameDisplay[i][j] = new JButton("", emptySquare);
gameDisplay[i][j].setEnabled(true);
add(gameDisplay[i][j]);
gameDisplay[i][j].addActionListener(handler);
}

// board_size = size;
maxLevel = depth;
numBlockedPos = num;
blockedPos = blocked;
TTT = new nk_TicTacToe(size, toWin, depth); /* User code needed to play */

for (int i = 0; i < numBlockedPos; ++i) {
int row = blockedPos[i] / size;
int col = blockedPos[i] % size;
gameDisplay[row][col].setIcon(new ImageIcon("blocked.gif"));
gameDisplay[row][col].paint(gameDisplay[row][col].getGraphics());

TTT.storePlay(row, col, BLOCKED);
}

}

public static void main(String[] args) {
int size = 0;
int toWin = 0;
int depth = 0;

       // Check if correct params provided
if (args.length < 3) {
System.out.println("Usage: java Play <board-size> <to win> <depth> <blocked positions ...>");
System.exit(0);
}

// Attempt to assign initial game values
try {
           /* Size of the game board */
size = Integer.parseInt(args[0]);
toWin = Integer.parseInt(args[1]);
depth = Integer.parseInt(args[2]);
} catch (NumberFormatException e) {
System.out.println("Invalid program argument");
System.exit(0);
}

       // Block all BLOCKED positions
int numOfBlocked = args.length - 3;

int[] blocked = new int[numOfBlocked];

for (int i = 0; i < numOfBlocked; ++i) {
blocked[i] = Integer.parseInt(args[3 + i]) - 1;
if ((blocked[i] < 0) || (blocked[i] >= size * size)) {
System.out.println("Invalid board position " + blocked[i]);
System.exit(0);
}
}

       // Create a GameBoard and Start the Game
JFrame gameWindow = new Play(size, toWin, depth, numOfBlocked, blocked);

// Set screen size
gameWindow.setSize(size * 90, size * 100);
gameWindow.setVisible(true);

// Listen for closing events
gameWindow.addWindowListener(new WindowAdapter() {
public void windowClosing(WindowEvent event) {
System.exit(0);
}
});

// Randomly choose who goes first
if (Math.random() > 0.5)
((Play)gameWindow).handler.displayComputerPlay();
}

private class ClickHandler implements ActionListener {
private int board_size;
private boolean game_ended = false;

/* Constructor. Save board size in instance variable */
public ClickHandler(int size) {
board_size = size;
}
public void actionPerformed(ActionEvent event) {
if (event.getSource() instanceof JButton) { /*
                                                       * Some position of the
                                                       * board was selected
                                                       */
int row = -1, col = -1;

if (game_ended)
System.exit(0);
               /* Find out which position was selected by the player */
for (int i = 0; i < board_size; i++) {
for (int j = 0; j < board_size; j++)
if (event.getSource() == gameDisplay[i][j]) {
row = i;
col = j;
break;
}
if (row != -1)
break;
}

if (TTT.squareIsEmpty(row, col)) {
                   /* Valid play, mark it on the board */
gameDisplay[row][col].setIcon(new ImageIcon("human.gif"));
gameDisplay[row][col].paint(gameDisplay[row][col].getGraphics());

TTT.storePlay(row, col, HUMAN);
if (TTT.wins(HUMAN))
endGame("Human wins");
else {
if (TTT.isDraw())
endGame("Game is a draw");
else
displayComputerPlay();
}
} else
System.out.println("Invalid play");

}
}

private void displayComputerPlay() {
PossiblePlay pos;

Date d = new Date();
long start = d.getTime();
numCalls = 0;
thinking = false;

pos = computerPlay(COMP, -1, 4, 0);

if (thinking) System.out.println("");
long end = d.getTime();
try {
if (end-start < MIN_DELAY)
Thread.sleep(MIN_DELAY-end+start);
}
catch (Exception e) {
System.out.println("Something is wrong with timer");
}

TTT.storePlay(pos.getRow(), pos.getCol(), COMP);
gameDisplay[pos.getRow()][pos.getCol()].setIcon(new ImageIcon("computer.gif"));
if (TTT.wins(COMP))
endGame("Computer wins");
else if (TTT.isDraw())
endGame("Game is a draw");
}

/* Explore the game tree and choose the best move for the computer */
private PossiblePlay computerPlay(char symbol, int highest_score, int lowest_score, int level) {

char opponent; // Opponent's symbol
PossiblePlay reply; // Opponent's best reply

int bestRow = -1;
int bestColumn = -1; // Position of best play

int value;
int lookupVal;

if (level == 0) /* Create new hash table */
configurations = TTT.createDictionary();

if (symbol == COMP) {
opponent = HUMAN;
value = -1;
} else {
opponent = COMP;
value = 4;
}

if (++numCalls == MAX_COMP_MOVES) {
System.out.print("Please wait ..");
thinking = true;
}
else if ((numCalls % MAX_COMP_MOVES) == 0) System.out.print(".");

// Scan entries of the game board in random order
int row, column;
row = (int)(Math.random() * board_size);

for (int r = 0; r < board_size; r++) {
column = (int)(Math.random() * board_size);
for (int c = 0; c < board_size; c++) {
if (TTT.squareIsEmpty(row, column)) { // Empty position
TTT.storePlay(row, column, symbol); // Store next play
if (TTT.wins(symbol) || TTT.isDraw() || (level >= maxLevel))
// Game ending situation or max number of levels
// reached
reply = new PossiblePlay(TTT.evalBoard(), row, column);
else {
lookupVal = TTT.repeatedConfig(configurations);
if (lookupVal != -1)
reply = new PossiblePlay(lookupVal, row, column);
else {
reply = computerPlay(opponent, highest_score, lowest_score, level + 1);
if (TTT.repeatedConfig(configurations) == -1)
TTT.insertConfig(configurations, reply.getScore(), 0);
}
}
TTT.storePlay(row, column, ' ');

if ((symbol == COMP && reply.getScore() > value)
|| (symbol == HUMAN && reply.getScore() < value)) {
bestRow = row;
bestColumn = column;
value = reply.getScore();

                           /* Alpha/beta cut */
if (symbol == COMP && value > highest_score)
highest_score = value;
else if (symbol == HUMAN && value < lowest_score)
lowest_score = value;

if (highest_score >= lowest_score)
return new PossiblePlay(value, bestRow, bestColumn);
}

}
column = (column + 1) % board_size;
}
row = (row + 1) % board_size;
}
return new PossiblePlay(value, bestRow, bestColumn);
}

/* Prompt the user for a key to terminate the game */
private void endGame(String mssg) {
System.out.println(mssg);
System.out.println("");
System.out.println("Click on board to terminate game");
game_ended = true;
}

}
}

Filename: PossiblePlay.java

public class PossiblePlay {
private int row, col; /* Row and column of the play */
private int score; /* play's score */

public PossiblePlay(int v, int r, int c) {
row = r;
col = c;
score = v;
}

public int getRow() {
return row;
}

public int getCol() {
return col;
}

public int getScore() {
return score;
}
}

Thank you!

If you have any queries regarding the solution please ask.
