Homework Answers

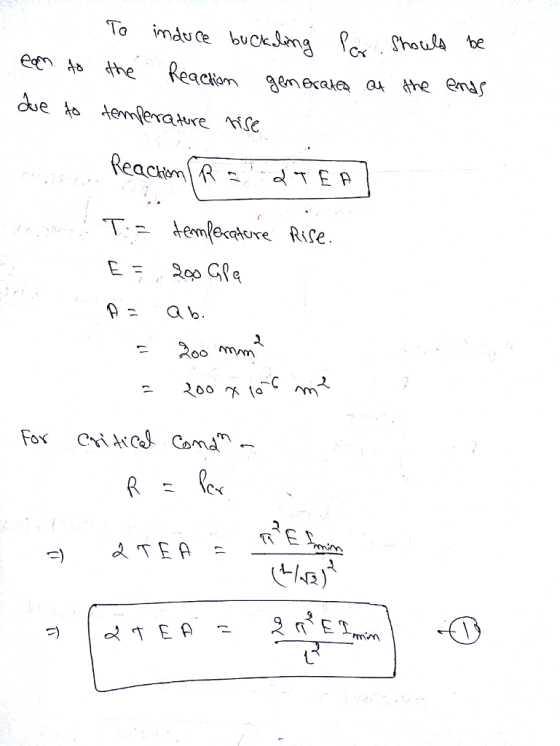

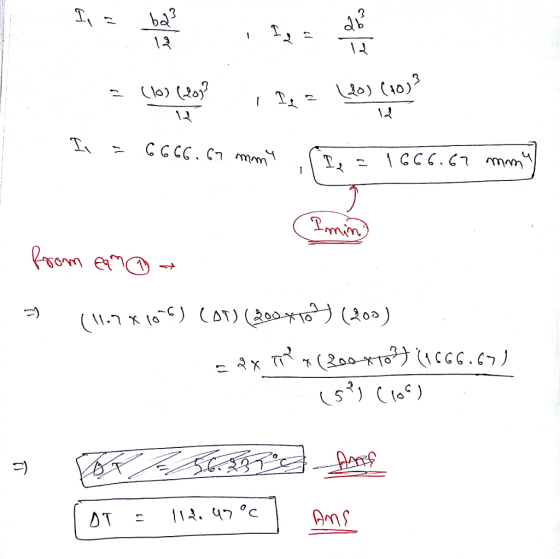

feel free to ask any doubt in
comments.Add Answer to:

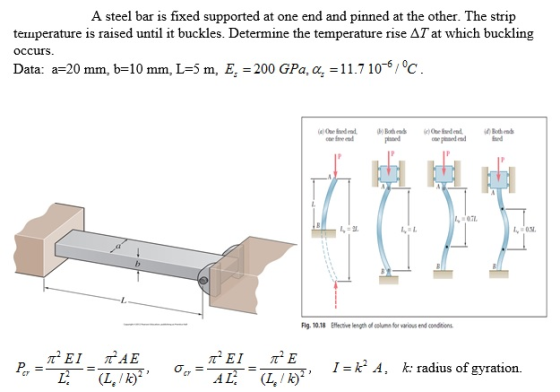

A steel bar is fixed supported at one end and pinned at the other. The strip...
