Homework Answers
Add Answer to:

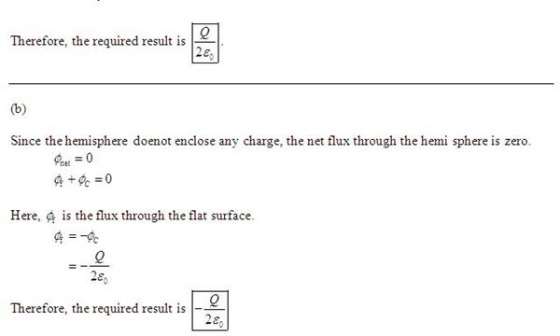

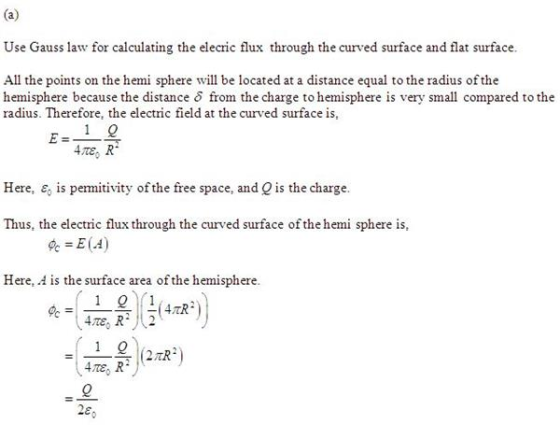

A particle with charge Q is located immediately above the center of the flat face of...
3. A particle with charge Q = 5.00 µC is located at the center of a...
3. A particle with charge Q = 5.00 µC is located at the center of a cube of edge L = 0.100 m. In addition, six other identical charged particles having q = -1.00 µC are positioned symmetrically around Q as shown in the figure below. Determine the electric flux through one face of the cube.
A sphere of radius R surrounds a particle with charge Q located at its center as...
A sphere of radius R surrounds a particle with charge Q located at its center as shown in figure below. Find the electric flux through a circlular cap of half-angle θ. ) (1-2cos0) 2Eo 2e) (1-2cos θ) COS 2cos θ 2u2 (1 - cos 0) (1-sin θ) 2)
A particle with charge 4.70 AuC is located at the center of a cube of edge...
A particle with charge 4.70 AuC is located at the center of a cube of edge L = 0.100 m. In addition, six other identical charged particles having q --1.5 Â C are positioned symmetrically around Q as shown in the figure below. Determine the electric flux through one face of the cube. kN m2/C 2 19
19. A particle with charge Q = 5.00 μC is located at the center ube of...
19. A particle with charge Q = 5.00 μC is located at the center ube of edge L 0.100 m. In addition, six other iden- tical charged particles having q -1.00 μC are positioned of a c symmetrically around Q as shown in Figure P23.19. Deter- mine the electric flux through one face of the cube. 4% Figure P23.19 Problems 19 and 20 19a) What is the net charge inside the cube?1 b) What is the flux through the whole...
A positive point charge Q is located in free-space at the center of a spherical conducting...
A positive point charge Q is located in free-space at the center of a spherical conducting shell The conducting shell consists of two concentric spheres, with inner radius a and an outer radius b (b> a), shaded region as shown in figure below. a) (15 points) Determine electric flux density everywhere. b) (5 points) Determine electric potential at the inner radius of the conducting shell c) (5 points) What is the total charge at the inner surface at r=a? justify...
A point charge q is located a distance r from the center of a conducting shell...
A point charge q is located a distance r from the center of a
conducting shell with inner radius R1 and outer radius R2.
What is the electric potential at the center of the shell, assuming
r <R1?
Question 7 A point charge q is located a distance r from the center of a conducting shell with inner radius R1 and outer radius R2. What is the electric potential at the center of the shell, assuming r< R1? Select the...
A particle with charge q is located at the origin, and a particle with charge 3q...
A particle with charge q is located at the origin, and a particle with charge 3q is on the positive x axis, a distance d from the origin. The particles are not free to move. In terms of q and d, at what coordinates should a third particle with charge q be placed so that it experiences no net electrostatic force? (Assume r is the location of the third particle away from the origin, along the positive x axis.) r=
24.3 Please give numerical answers that are in the correct units! A particle with charge Q...
24.3 Please give numerical answers that are
in the correct units!
A particle with charge Q = 5.50 mu C is located at the center of a cube of edge L = 0.180 m. In addition, six other Identical charged particles having q = -0.5 mu C are positioned symmetrically around Q as shown in the figure below. Determine the electric flux through one face of the cube. KN.M^2/c please give numerical answer that are in the correct units!
2. Figure shows a ring of radius R 4m and a point particle located at the...
2. Figure shows a ring of radius R 4m and a point particle located at the center of the ring. Point P is on the central z axis, at distance z 3 m above the ring. The ring is charged with the uniform linear charge density of 1 10 C/m. What is the charge of the point particle, Q, if the net electrical field at point P is zero? -3 m R-4 m
A point charge q is located at the center of a spherical shell of radius a...
A point charge q is located at the center of a spherical shell of radius a that has a charge -q uniformly distributed on its surface. Find the electric field for the following points: (a) for all points outside the spherical shell E = kq/r2 E = kq2/r2 E = q/4pr2 none of these E = 0 (b) for a point inside the shell a distance r from the center E = q/4pr2 E = kq2/r2 E = kq/r2 E...
A sphere of radius R surrounds a particle with charge Q located at its center as shown in figure below. Find the electric flux through a circlular cap of half-angle θ. ) (1-2cos0) 2Eo 2e) (1-2cos θ) COS 2cos θ 2u2 (1 - cos 0) (1-sin θ) 2)
A particle with charge 4.70 AuC is located at the center of a cube of edge L = 0.100 m. In addition, six other identical charged particles having q --1.5 Â C are positioned symmetrically around Q as shown in the figure below. Determine the electric flux through one face of the cube. kN m2/C 2 19
19. A particle with charge Q = 5.00 μC is located at the center ube of edge L 0.100 m. In addition, six other iden- tical charged particles having q -1.00 μC are positioned of a c symmetrically around Q as shown in Figure P23.19. Deter- mine the electric flux through one face of the cube. 4% Figure P23.19 Problems 19 and 20 19a) What is the net charge inside the cube?1 b) What is the flux through the whole...
A positive point charge Q is located in free-space at the center of a spherical conducting shell The conducting shell consists of two concentric spheres, with inner radius a and an outer radius b (b> a), shaded region as shown in figure below. a) (15 points) Determine electric flux density everywhere. b) (5 points) Determine electric potential at the inner radius of the conducting shell c) (5 points) What is the total charge at the inner surface at r=a? justify...
A point charge q is located a distance r from the center of a
conducting shell with inner radius R1 and outer radius R2.
What is the electric potential at the center of the shell, assuming
r <R1?
Question 7 A point charge q is located a distance r from the center of a conducting shell with inner radius R1 and outer radius R2. What is the electric potential at the center of the shell, assuming r< R1? Select the...
24.3 Please give numerical answers that are
in the correct units!
A particle with charge Q = 5.50 mu C is located at the center of a cube of edge L = 0.180 m. In addition, six other Identical charged particles having q = -0.5 mu C are positioned symmetrically around Q as shown in the figure below. Determine the electric flux through one face of the cube. KN.M^2/c please give numerical answer that are in the correct units!
2. Figure shows a ring of radius R 4m and a point particle located at the center of the ring. Point P is on the central z axis, at distance z 3 m above the ring. The ring is charged with the uniform linear charge density of 1 10 C/m. What is the charge of the point particle, Q, if the net electrical field at point P is zero? -3 m R-4 m
