The shown vertical steel column is used to support a structure

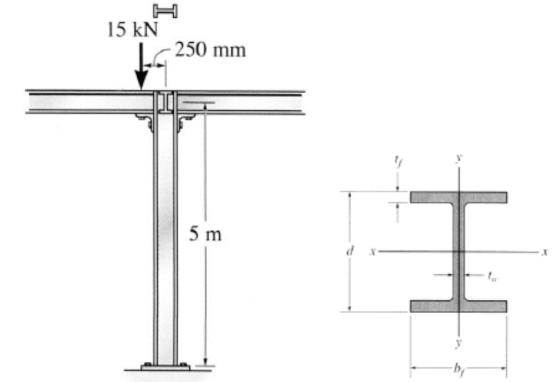

The shown vertical steel column is used to support a structure. Assume the column to be fixed at its top and pinned at its bottom. A 15 kN load is applied at an eccentric distance of 250 mm as shown. determine the maximum stress in the column.
E=210 GPa, Yield stress =250 MPa. A=4960 mm2 d=363 mm Ixx=102(106) mm4
Homework Answers

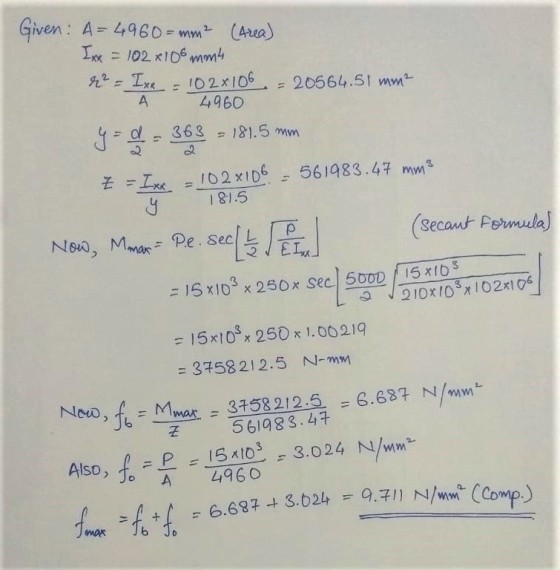

In the given question, Secant Formula
Hence, the maximum stress in the column is 9.711 N/mm2 (Comp).
A steel column has a length of 15 m and is pinned at its top and...
A steel column has a length of 15 m and is pinned at its top and bottom. If the cross-sectional area has the dimensions shown, 200 mm 10 mm 10 mm 150 mm 10 mm Est-200 GPa, oy 250 MPa. Est = 200 GPa, oy = 250 MPa. Part A Determine the critical load. Express your answer to three significant figures and include appropriate units. ? НА Per = Value Units Submit Request Answer
Question 2 20 points Save Answer A T shaped steel beam is used to support the...
Question 2 20 points Save Answer A T shaped steel beam is used to support the loads shown below. The dimensions from the top and bottom of the shape to the centroid axis are shown on the sketch of the cross section and 1 x 106 mm4. Determine the magnitude of the maximum bending stress in MPa 15 KN 20 kN/m 60.7 mm OkNm 64.3 mm WT230-26
A steel pipe column has a length L=4.25 m and has tubular cross section with inside...
A steel pipe column has a length L=4.25 m and has tubular cross section with inside diameter dy=64 mm and outside diameter d2=90 mm. The column is fixed at the base and pinned at the top. The modulus of elasticity of steel is E=210 GPa. The theoretical Euler buckling load of the column is most nearly: dy dz A. 720 KN B. 560 kN C. 303 kN D. 690 KN The steel post has a length L=4 m and carries...
In order to reinforce the steel beam, an oak board is placed between its flanges as...
In order to reinforce the steel beam, an oak board is placed between its flanges as shown in Fig. 6-41a. If the allowable normal stress for the steel is (Onllow)st-168 MPa, and for the wood (Onllow)W-21 MPa determine the maximum bending moment the beam can support, with and without the wood reinforcement. Est-200 GPa, Ew-12 GPa. The moment of inertia of the steel beam is Iz-7.93 × 106 mm4 and its cross-sectional area is A 5493.75 mm2. 100 m 5...
Question 4 Not yet answered Marked out of 6 P Flag question The column section shown...
Question 4 Not yet answered Marked out of 6 P Flag question The column section shown in plan has a second moment of area of Ixx = 43.67×10 mm. An eccentric point load of 1038 kN is applied vertically (i.e. acting into the screen) at point P as indicated. Establish an expression for the stress induced through the depth of the section due to the combined effects of axial and bending stress and use it to calculate the stress at...
Answers: IXX = 92.11×106 mm4 wmax = 15.53 kN/m 1/R = 0.0085 m-1 6. Calculate lxx for the steel I-section shown in Fig....
Answers:
IXX = 92.11×106 mm4
wmax = 15.53 kN/m
1/R = 0.0085 m-1
6. Calculate lxx for the steel I-section shown in Fig. Q6a. This section is to span a distance of 9 m and is loaded as shown in Fig. Q6b. Calculate the magnitude of the maximum UDL that can be sustained by the beam if the design stress of the steel is 239 N/mm2. Calculate the curvature of the beam at midspan under that maximum UDL, taking Estel...
10.21 A steel compression member of 2.75-m effective length supports an eccentric load as shown. Using...
10.21 A steel compression member of 2.75-m effective length supports an eccentric load as shown. Using the allowable-stress method and assuming e 40 mm, determine the load P. Use ơr 250 MPa and E 200 GPa. with that 40 mm S130 x 15 Fig. P10.21 60 mm. 10.22 Solve Prob. 10.89 using e
The A992 steel rod is subjected to the loading shown. If the cross-sectional area of the...
The A992 steel rod is
subjected to the loading shown. If the cross-sectional area of the
rod is 100 mm2. Neglect the size of the couplings at B and C. The
elastic modulus and yield stress of A992 steel is 200 GPa and 345
MPa respectively. Determine the displacement of B and A with
respect to point D. (Preserve 2 significant digits after the
decimal point.)
QUESTION 1 The 1992 steel rod is subjected to the loading shown. If the...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The an...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
Find the minimum required thickness tmin for a steel pipe column of length L-3.6 m and [25 pts.] Q-3 outer diameter d=1...
Find the minimum required thickness tmin for a steel pipe column of length L-3.6 m and [25 pts.] Q-3 outer diameter d=160 mm supporting an axial load P-240 kN (See Fig. below). The column is fixed at the base and free at the top. (Use E 200 GPa and Sy-250 MPa.) -The critical 1loading is calculated from Euler's formula, L 2EI Per er (Le/r Le equivalent length ka/
Find the minimum required thickness tmin for a steel pipe column of...
A steel column has a length of 15 m and is pinned at its top and bottom. If the cross-sectional area has the dimensions shown, 200 mm 10 mm 10 mm 150 mm 10 mm Est-200 GPa, oy 250 MPa. Est = 200 GPa, oy = 250 MPa. Part A Determine the critical load. Express your answer to three significant figures and include appropriate units. ? НА Per = Value Units Submit Request Answer
Question 2 20 points Save Answer A T shaped steel beam is used to support the loads shown below. The dimensions from the top and bottom of the shape to the centroid axis are shown on the sketch of the cross section and 1 x 106 mm4. Determine the magnitude of the maximum bending stress in MPa 15 KN 20 kN/m 60.7 mm OkNm 64.3 mm WT230-26
A steel pipe column has a length L=4.25 m and has tubular cross section with inside diameter dy=64 mm and outside diameter d2=90 mm. The column is fixed at the base and pinned at the top. The modulus of elasticity of steel is E=210 GPa. The theoretical Euler buckling load of the column is most nearly: dy dz A. 720 KN B. 560 kN C. 303 kN D. 690 KN The steel post has a length L=4 m and carries...
In order to reinforce the steel beam, an oak board is placed between its flanges as shown in Fig. 6-41a. If the allowable normal stress for the steel is (Onllow)st-168 MPa, and for the wood (Onllow)W-21 MPa determine the maximum bending moment the beam can support, with and without the wood reinforcement. Est-200 GPa, Ew-12 GPa. The moment of inertia of the steel beam is Iz-7.93 × 106 mm4 and its cross-sectional area is A 5493.75 mm2. 100 m 5...
Question 4 Not yet answered Marked out of 6 P Flag question The column section shown in plan has a second moment of area of Ixx = 43.67×10 mm. An eccentric point load of 1038 kN is applied vertically (i.e. acting into the screen) at point P as indicated. Establish an expression for the stress induced through the depth of the section due to the combined effects of axial and bending stress and use it to calculate the stress at...
Answers:
IXX = 92.11×106 mm4
wmax = 15.53 kN/m
1/R = 0.0085 m-1
6. Calculate lxx for the steel I-section shown in Fig. Q6a. This section is to span a distance of 9 m and is loaded as shown in Fig. Q6b. Calculate the magnitude of the maximum UDL that can be sustained by the beam if the design stress of the steel is 239 N/mm2. Calculate the curvature of the beam at midspan under that maximum UDL, taking Estel...
10.21 A steel compression member of 2.75-m effective length supports an eccentric load as shown. Using the allowable-stress method and assuming e 40 mm, determine the load P. Use ơr 250 MPa and E 200 GPa. with that 40 mm S130 x 15 Fig. P10.21 60 mm. 10.22 Solve Prob. 10.89 using e
The A992 steel rod is
subjected to the loading shown. If the cross-sectional area of the
rod is 100 mm2. Neglect the size of the couplings at B and C. The
elastic modulus and yield stress of A992 steel is 200 GPa and 345
MPa respectively. Determine the displacement of B and A with
respect to point D. (Preserve 2 significant digits after the
decimal point.)
QUESTION 1 The 1992 steel rod is subjected to the loading shown. If the...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
Find the minimum required thickness tmin for a steel pipe column of length L-3.6 m and [25 pts.] Q-3 outer diameter d=160 mm supporting an axial load P-240 kN (See Fig. below). The column is fixed at the base and free at the top. (Use E 200 GPa and Sy-250 MPa.) -The critical 1loading is calculated from Euler's formula, L 2EI Per er (Le/r Le equivalent length ka/
Find the minimum required thickness tmin for a steel pipe column of...
