Question

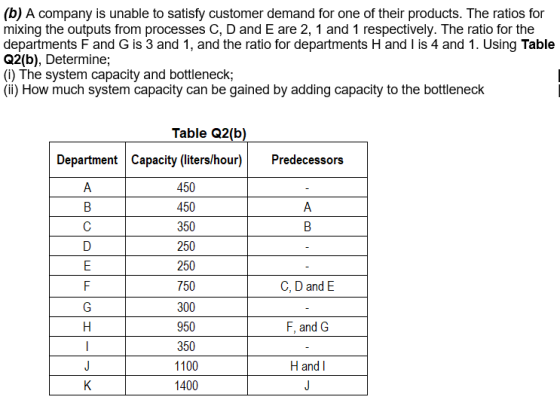

(b) A company is unable to satisfy customer demand for one of their products. The ratios for mixing the outputs from processes C, D and E are 2, 1 and 1 respectively. The ratio for the departments F and G is 3 and 1, and the ratio for departments Hand I is 4 and 1. Using Table Q2(b), Determine; (i) The system capacity and bottleneck; (ii) How much system capacity can be gained by adding capacity to the bottleneck Table Q2(b) Department Capacity (liters/hour) Predecessors A B A B с D E F 450 450 350 250 250 750 C, D and E G H F, and G 300 950 350 1100 1400 J H and I K J

Please answer step by step.

Thank you.

Answer 1

i) Bottleneck resource is the one that limits the overall process capacity or output.

We shall analyze how many liters of output from each resource is required for an input of 1 unit to the subsequent department.

Units of output per hour = Capacity/units required

For example,

For Department C,

Capacity = 350 liters/hour

units required = 2

Units of output per hour = 350/2 = 175 liters/hour of output

Department	Capacity (liters/hour)	Predecessors	units required	Units of output per hour
A	450	-	1	450
B	450	A	1	450
C	350	B	2	175
D	250	-	1	250
E	250	-	1	250
F	750	C, D, E	3	250
G	300	-	1	300
H	950	F, G	4	237.5
I	350	-	1	350
J	1100	H, I	1	1100
K	1400	J	1	1400

Because the output per hour for department C is the least i.e. 175 liters, Department C is the bottleneck.

For process capacity:

We know C is the bottleneck and can contribute to making 175 liters of input for Department F.

Now, the 3 units of F are required to make 1 unit of H.

Hence, input for H = 175 / 3 = 58.33 Liters/hour

Now, the 4 units of H are required to make 1 unit of J.

Hence, input for J = 58.33 / 4 = 14.58 Liters/hour

Hence, process capacity = 14.58 Liters/Hour

ii) Now, we can add capacity to the existing bottleneck resource until the bottleneck gets shifted to the next limiting capacity of the resource.

Here, C is the existing bottleneck, and D and E are the next limiting resources.

So, we can add capacity to C till it matches the output from D and E.

C currently generates 175 liters of output per hour for which it requires a capacity of 350 liters.

We can increase C's output to 250 liters per hour, for which it will require 250 * 2 = 500 liters per hour of capacity.

Hence, additional capacity requirement = 500 - 350 = 150 liters/hour

Now,

the revised input to F will be 250 liters/hour

Now, the 3 units of F are required to make 1 unit of H.

Hence, input for H = 250 / 3 = 83.33 Liters/hour

Now, the 4 units of H are required to make 1 unit of J.

Hence, input for J = 83.33 / 4 = 20.83 Liters/hour

Hence, revised process capacity = 16.67 Liters/Hour

The gain in process capacity = 20.83 - 14.58

The gain in process capacity = 6.25 liters/hour

Kindly up-vote this answer if it was helpful to you. This will help me in maintaining the quality of my answers. Do reach out to me in case of any queries. Thank you.

Happy Learning!
