a single-acting air cylinder with a 2 1/2-in-diameter piston and 12-in stroke operates at 100 psig...
a single-acting air cylinder with a 2 1/2-in-diameter piston and 12-in stroke operates at 100 psig and reciprocates at 30 cycles per min. Compute the air consumption in scfm of air.

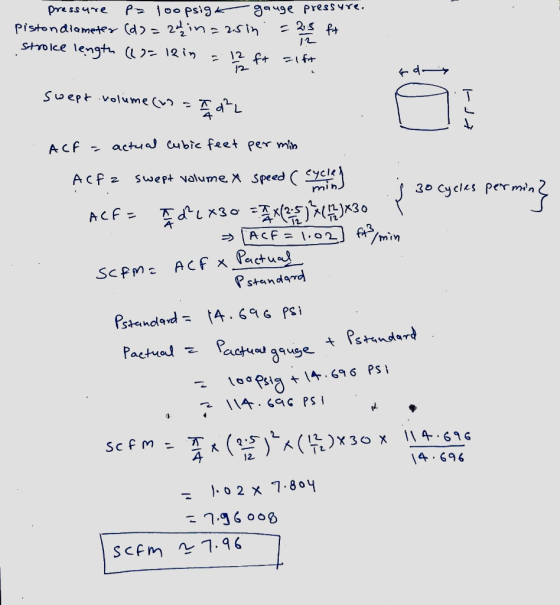

The answer should come out to being 7.96 scfm- need help getting here.
Homework Answers
Add Answer to:
a single-acting air cylinder with a 2 1/2-in-diameter piston and
12-in stroke operates at 100 psig...
2. A 4.8 L, SI, four-stroke, V-8 stationary engine operates at 2000 RPM using gasoline with...
2. A 4.8 L, SI, four-stroke, V-8 stationary engine operates at 2000 RPM using gasoline with air/fuel ratio of 14.7. The engine has a volumetric efficiency of 90%, with a bore (B) and stroke (S) related as B:S=1.1:1. You can assume the density of fresh air is 1.16 kg/mº. Please calculate: (30 Points) a) Displacement of each cylinder, and length of stroke; b) Average velocity of piston; (This is a very simple question. You need find the distance piston moved...
Problem 1 (65 pts): The cylinder of a Diesel engine is initially filled with air at 100 kPa and 2...
Problem 1 (65 pts): The cylinder of a Diesel engine is initially filled with air at 100 kPa and 298 K (piston is at BDC). The air is then compressed isentropically with a compression ratio of 20. Fuel, n-dodecane, is then introduced and combusted with the air, which produces work output (i.e. pushes the piston back to BDC). At the end of the power stroke, the temperature of the combustion products is 1020 K. The amount of heat lost to...
A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder...
A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (V min) of the engine is 420 cm? At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: a) Brake power (2 mark) b) The brake mean effective pressure, (1...
A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder...
A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (V min) of the engine is 420 cm? At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: a) Brake power (2 mark) b) The brake mean effective pressure, (1...
1. A 12-cylinder, 4-stroke automobile engine is being designed. What type of cylinder arrangement would you...
1. A 12-cylinder, 4-stroke automobile engine is being designed. What type of cylinder arrangement would you recommend? (a) In-Line (b) V-Type (c) W-Type (d) Rotary. 2. The expression "cylinder cut-out" means : (a) Half of cylinder volumes is used. (b) Half of cylinder numbers is used. (c) Half of cylinder masses is used. (d) None of the above. 3. Adding lubrication oil to the inlet fuel- air mixture in 2-st engines will increase: (a) HC emissions. (b) CO emissions (c)...
Please answer all PROBLEM 1 A three-litre four-stroke diesel engine develops 12 kW per m3 of...
Please answer all PROBLEM 1 A three-litre four-stroke diesel engine develops 12 kW per m3 of free air inducted per minute. The volumetric efficiency is 82 % at 3600 rpm referred to atmospheric condition of 1 bar and 27 oC. A rotary compressor which is mechanically coupled to the engine is used to supercharge the engine. The pressure ratio and the isentropic efficiency of the compressor are 1.6 and 75 % respectively. Calculate the percentage increase in brake power due...
Q5. An efficiency consultant is studying the power stroke of a four-stroke engine and determines the following: As the...
Q5. An efficiency consultant is studying the power stroke of a
four-stroke engine and determines the following:
As the piston is forced down, the mixture of combustion
products and air undergoes an adiabatic expansion.
The engine is running at 3,100 cycles/min.
The gauge pressure immediately before the expansion is 25.0
atm.
The volumes of the mixture immediately before and after the
expansion are 50.0 cm3 and 400 cm3,
respectively (figure below).
The time interval for the expansion is one-fourth the...
(20%) Q2. A piston-cylinder assembly initially has 100 kPa pressure and 2 liters of air at...
(20%) Q2. A piston-cylinder assembly initially has 100 kPa pressure and 2 liters of air at 25°C. The air is then compressed to 600 kPa pressure and 150°C temperature. Useful work input for compression is 1.2 kJ. Assuming that the ambient pressure and temperature are 100 kPa and 25°C respectively, calculate a) the exergy of the air in the first and last states, b) the minimum work required for the compression process, c) the second law efficiency of the state...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl space-saver range, as can be found in their Star2.pdf catalogue, www.starcyl.com. Some pneumatic cylinders can have a push/pull rod (item I in Figure 1) protruding from either head (item A in Figure 1), but this cylinder clearly has only one, making it a “single rod end” type of cylinder. This cylinder is however “double acting”, which means it can be pressurised on either side...
L2 r. cunhinning moncones the spood of piston at the hepinning of the stonke in the...
L2 r. cunhinning moncones the spood of piston at the hepinning of the stonke in the cylinder cushimin decrees the speed of piston ot the beginning of the role in the und 2) Which Type of bydraulic finder has one piston connected to piston rud extended on both the a female clevis 1. Circular fans c. Trunnion all of the above Which of the following is used for mounting purpose in luydraulic cylinders? sides of the cylinder! 3. telescopic cylinder...
2. A 4.8 L, SI, four-stroke, V-8 stationary engine operates at 2000 RPM using gasoline with air/fuel ratio of 14.7. The engine has a volumetric efficiency of 90%, with a bore (B) and stroke (S) related as B:S=1.1:1. You can assume the density of fresh air is 1.16 kg/mº. Please calculate: (30 Points) a) Displacement of each cylinder, and length of stroke; b) Average velocity of piston; (This is a very simple question. You need find the distance piston moved...
Problem 1 (65 pts): The cylinder of a Diesel engine is initially filled with air at 100 kPa and 298 K (piston is at BDC). The air is then compressed isentropically with a compression ratio of 20. Fuel, n-dodecane, is then introduced and combusted with the air, which produces work output (i.e. pushes the piston back to BDC). At the end of the power stroke, the temperature of the combustion products is 1020 K. The amount of heat lost to...
A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (V min) of the engine is 420 cm? At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: a) Brake power (2 mark) b) The brake mean effective pressure, (1...
A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (V min) of the engine is 420 cm? At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: a) Brake power (2 mark) b) The brake mean effective pressure, (1...
1. A 12-cylinder, 4-stroke automobile engine is being designed. What type of cylinder arrangement would you recommend? (a) In-Line (b) V-Type (c) W-Type (d) Rotary. 2. The expression "cylinder cut-out" means : (a) Half of cylinder volumes is used. (b) Half of cylinder numbers is used. (c) Half of cylinder masses is used. (d) None of the above. 3. Adding lubrication oil to the inlet fuel- air mixture in 2-st engines will increase: (a) HC emissions. (b) CO emissions (c)...
Q5. An efficiency consultant is studying the power stroke of a
four-stroke engine and determines the following:
As the piston is forced down, the mixture of combustion
products and air undergoes an adiabatic expansion.
The engine is running at 3,100 cycles/min.
The gauge pressure immediately before the expansion is 25.0
atm.
The volumes of the mixture immediately before and after the
expansion are 50.0 cm3 and 400 cm3,
respectively (figure below).
The time interval for the expansion is one-fourth the...
(20%) Q2. A piston-cylinder assembly initially has 100 kPa pressure and 2 liters of air at 25°C. The air is then compressed to 600 kPa pressure and 150°C temperature. Useful work input for compression is 1.2 kJ. Assuming that the ambient pressure and temperature are 100 kPa and 25°C respectively, calculate a) the exergy of the air in the first and last states, b) the minimum work required for the compression process, c) the second law efficiency of the state...
L2 r. cunhinning moncones the spood of piston at the hepinning of the stonke in the cylinder cushimin decrees the speed of piston ot the beginning of the role in the und 2) Which Type of bydraulic finder has one piston connected to piston rud extended on both the a female clevis 1. Circular fans c. Trunnion all of the above Which of the following is used for mounting purpose in luydraulic cylinders? sides of the cylinder! 3. telescopic cylinder...
