The 1000 kg mass is supported by a plate which is sitting on a column composed of two bars. The outer tube is bar 1, with E1 90 GPa and A1 200 mm2. The solid inner core is bar 2, with A2 = 100 m2m2 a) Find the average normal stress in each bar and determine the deflection of point A, if bar 2 is made from Red Brass C83600. Find the average normal stress in each bar and determine the deflection of point A, if bar 2 is made from Red Brass C23000. b) m = 1000 kg Section B-B support plate 0.8 m column inner core outer tube ground

Answer 1

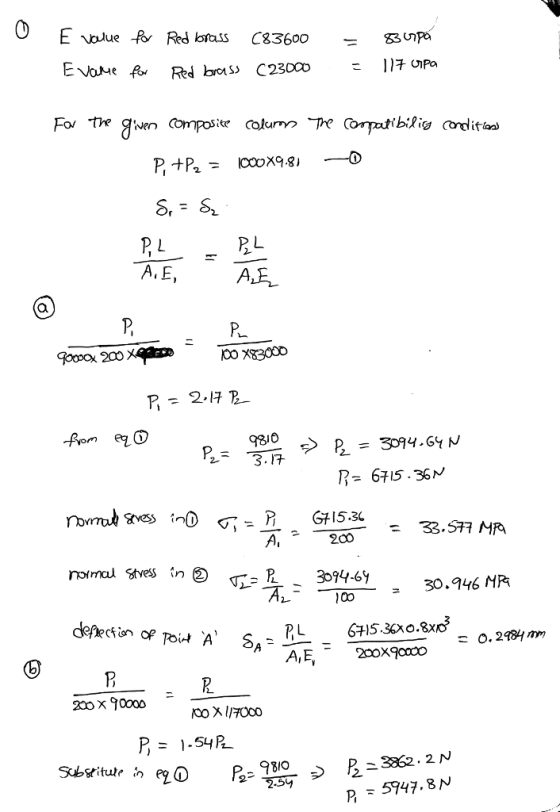

E、blue-R, Red bass C83600 PL 2- 回 P. g8io R- 6715 36N A, 2CO 30.946 MP A AE, Substitute 3862. 2N P5747.8N

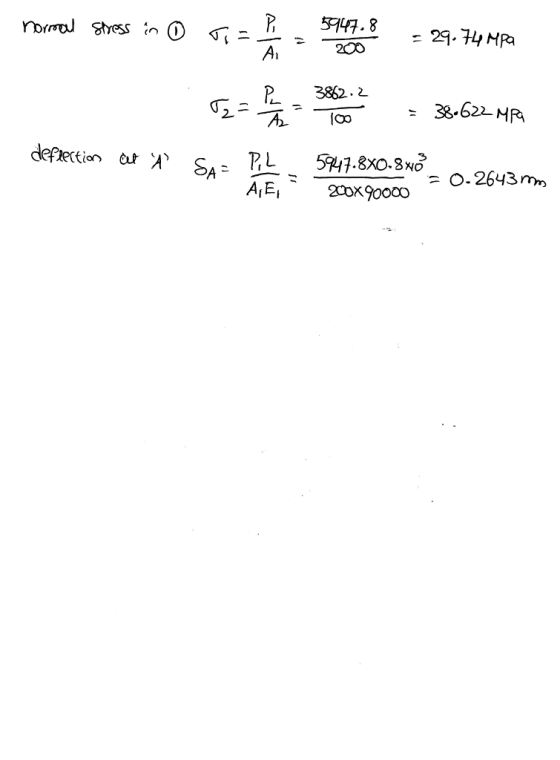

Ai MA 2643 m
