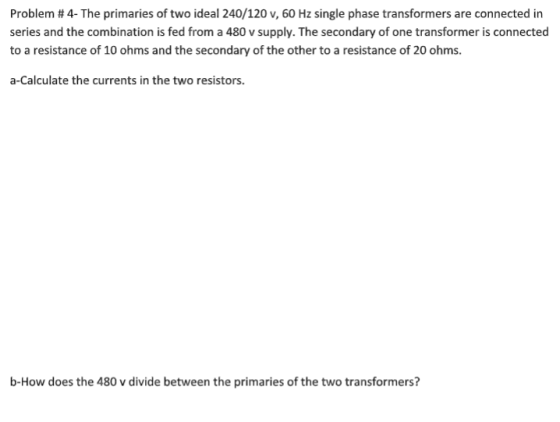

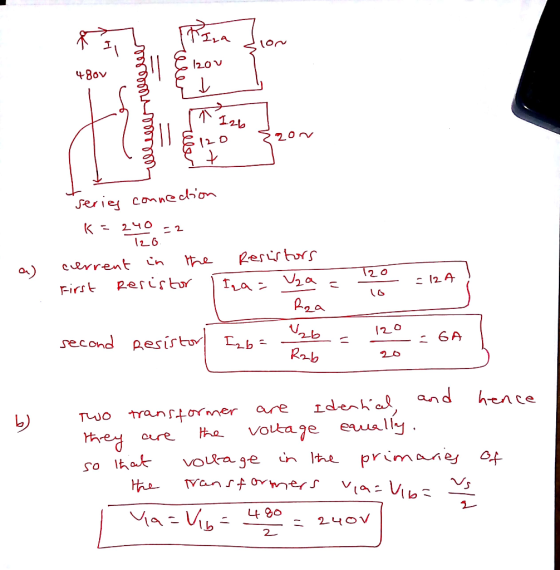

Problem #4-The primaries of two ideal 240/120 v, 60 Hz single phase transformers are connected in...
3. Three single-phase, 10 kVA, 460/120 V, 60 Hz transformers are connected to form a three-phase...
3. Three single-phase, 10 kVA, 460/120 V, 60 Hz transformers are connected to form a three-phase 460/208 V transformer bank. The equivalent impedance of each transformer referred to HV side is 1.0 + j2.0 Ω. The transformer delivers 25 kW at 0.9 pf lagging at rated voltage. Answer the following questions: (a) Draw a schematic diagram showing the transformer connection. Draw three separate single-phase transformers and complete their primary and secondary connections. (b) Determine the magnitude of transformer primary and...
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz...
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA at 0.8 p.f. lagging Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA...
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the...
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the three-phase transformer rated at 120 kV and the secondary side rated at 13.8 kV. The rated power of the transformer bank is 20 MVA. One side of the transformer bank is connected to a 120 kV transmission line, and the other side is connected to a three-phase load of 15 MVA at 0.85 lagging power factor. Compute the following: a) The turns...
An ideal transformer has the next nominal values: 20 kVA, 480/120 v, 60 Hz. The primary...
An ideal transformer has the next nominal values: 20 kVA, 480/120 v, 60 Hz. The primary winding has a power supply of 240 V connected. The secondary winding powers a 6 A charge with a power factor of 0.85 forward. Calculate: a) The voltage on the secondary winding expresed in per unit. b) The impedance of the charge in per unit. c) The impedance of the charge refered to the primary, in ohms. d) Active and reactive power, in W...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming a...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming and outgoing transmission lines b. The currents in the primary and secondary windings 1. sratod t 200 w 3o0 v/6oO V 60 Hz are used to raise the
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye-...
2. Three single-phase transformers rated at 300 KVA, 7200 V/600 V, 60 Hz, are used to...
2. Three single-phase transformers rated at 300 KVA, 7200 V/600 V, 60 Hz, are used to raise the voltage of a 3-phase, 600 V line to 7.2 kv. a. How must they be connected? b. Calculate the line currents for a load of 750 kVA. C. Calculate the corresponding primary and secondary currents.
10. In order to meet an emergency, three single-phase transformers with 12.4707.200 Vrms are connected in...
10. In order to meet an emergency, three single-phase transformers with 12.4707.200 Vrms are connected in A-Y to form a three-płuase transformer wluch is fed by a 12,470-V transmission line. If the transformer supplies 60 MVA to a lood, find (a) the tum ratio for each transformer, (b) the currents in the primary and secondary windings of the transformer, (c) the incoming and outgoing transmission line cuarents
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in...
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
3.10 A 240/120 V, 4.8 kVA, 60 Hz, single-phase transformer is used to supply a 4.8...
3.10 A 240/120 V, 4.8 kVA, 60 Hz, single-phase transformer is used to supply a 4.8 kVA resistive load (i.e., the load has a power factor of 1.0) at rated voltage of 120 V a) If you assume the transformer is ideal, what would be the magni- tude of the expected primary side (240 V side) current? b) Again, if you assume the transformer is ideal, what is the apparent impedance of the load viewed from the high-voltage side of...
4. Three ideal single-phase transformers are connected as shown below. The turns ratio of each single-phase...
4. Three ideal single-phase transformers are connected as shown below. The turns ratio of each single-phase transformer is 2400/480. Assume a perfectly balanced three- phase system (with ABC sequence) and that the delta side is the high-voltage side. (a) If IA is 8 amperes at 20 degrees, determine the phasor current Ix. (b) If the three-phase load is 100 kW at 0.87 lagging power factor and 465 V, determine how much current is flowing in the primary winding of T3....
Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA at 0.8 p.f. lagging Ideal, single-phase two-winding transformer A single-phase two-winding transformer is rated 20 kVA, 480/120 V, 60 Hz A source connected to the 480-V winding supplies an impedance load con- nected to the 120-V winding. The load absorbs 15 kVA...
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the three-phase transformer rated at 120 kV and the secondary side rated at 13.8 kV. The rated power of the transformer bank is 20 MVA. One side of the transformer bank is connected to a 120 kV transmission line, and the other side is connected to a three-phase load of 15 MVA at 0.85 lagging power factor. Compute the following: a) The turns...
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye- delta on a 12.47 kv, 3-phase line. If the load is 450 kVA, calculate: a. The currents in the incoming and outgoing transmission lines b. The currents in the primary and secondary windings 1. sratod t 200 w 3o0 v/6oO V 60 Hz are used to raise the
Three single-phase transformers rated at 250 kVA, 7200 V/600 V, 60 Hz, are connected in wye-...
2. Three single-phase transformers rated at 300 KVA, 7200 V/600 V, 60 Hz, are used to raise the voltage of a 3-phase, 600 V line to 7.2 kv. a. How must they be connected? b. Calculate the line currents for a load of 750 kVA. C. Calculate the corresponding primary and secondary currents.
10. In order to meet an emergency, three single-phase transformers with 12.4707.200 Vrms are connected in A-Y to form a three-płuase transformer wluch is fed by a 12,470-V transmission line. If the transformer supplies 60 MVA to a lood, find (a) the tum ratio for each transformer, (b) the currents in the primary and secondary windings of the transformer, (c) the incoming and outgoing transmission line cuarents
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
3.10 A 240/120 V, 4.8 kVA, 60 Hz, single-phase transformer is used to supply a 4.8 kVA resistive load (i.e., the load has a power factor of 1.0) at rated voltage of 120 V a) If you assume the transformer is ideal, what would be the magni- tude of the expected primary side (240 V side) current? b) Again, if you assume the transformer is ideal, what is the apparent impedance of the load viewed from the high-voltage side of...
4. Three ideal single-phase transformers are connected as shown below. The turns ratio of each single-phase transformer is 2400/480. Assume a perfectly balanced three- phase system (with ABC sequence) and that the delta side is the high-voltage side. (a) If IA is 8 amperes at 20 degrees, determine the phasor current Ix. (b) If the three-phase load is 100 kW at 0.87 lagging power factor and 465 V, determine how much current is flowing in the primary winding of T3....
