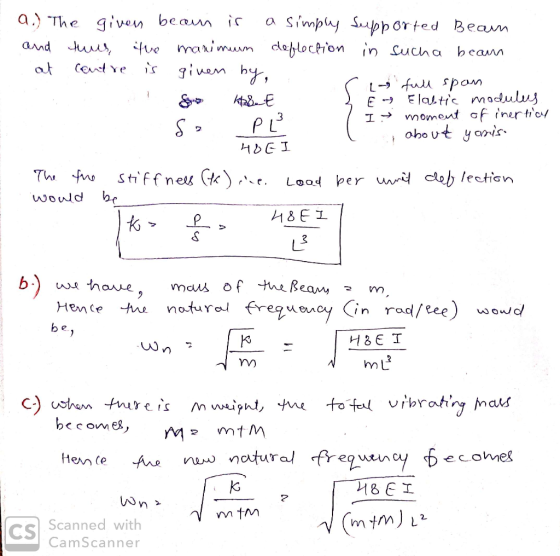

Homework Answers
In this solution some basic concepts and formulas of Vibration Mechanics are used. For more information, refer to any standard textbook or drop a comment below. Please give a Thumbs Up, if solution is helpful.
Solution :
NOTE : Feel free to ask further queries. Your positive rating would be appreciated and motivate me !
Add Answer to:

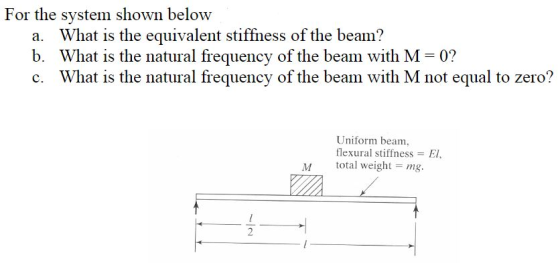

For the system shown below a. What is the equivalent stiffness of the beam? b. What...
QUESTION 1:(15 points) Determine the natural frequency of the system corsisting of a cantilever beam and...
QUESTION 1:(15 points) Determine the natural frequency of the system corsisting of a cantilever beam and a spring in Fig.1. Assuming the beam and the spring to be massless, the system has the single DOF defined as the vertical deflection under a weight W 1.2kN .The beam has a length L=4m and the flexural rigidity EI = 2400 kM㎡. The spring has the stiffness 60 kN/m . EI t L Fig.1
Q1. For the system shown in Figure 1 where the beam with mass m and length...
Q1. For the system shown in Figure 1 where the beam with mass m and length L is connected to the fixed surfaces through three springs with same stiffness k, (i) Calculate the total kinetic energy and total potential energy of the system; (ii) Derive the equation of motion in terms of rotation angle 0; (iii) Find the natural frequency of the system; (iv) Calculate the natural period if the stiffness k of all springs is doubled; (v) If the...
By stiffness method : determine the displacements at Joint B and at Joint C in the three-span beam shown in the figure below. The flexural rigidity of the beam is EI and is constant along the length o...
By stiffness method : determine the displacements at Joint B and
at Joint C in the three-span beam shown in the figure below. The
flexural rigidity of the beam is EI and is constant along the
length of the beam. Note that L1 = L2 = L3 = L P1 = P2 = P3 = P
M = PL
wL = P Also, find the reactions at Joint A.
い12 8
い12 8
determine the equivalent mass(meq)and equivalent spring stiffness of the system shown in the figure below using...
determine the equivalent mass(meq)and equivalent
spring stiffness of the system shown in the figure below using x as
the generalized coordinate
neral MES 382: Vibration & Noise Control Determine the equivalent mass (megl and equivalent spring stiffness (kea) of the syslem shown in the figure below using x as the generalized coordinate. b. ko Jo k2 k1
Determine the natural frequencies and eigenvectors of a beam system with negligible mass shown below, and EI is the flexural rigidity of the beam.
Determine the natural frequencies and eigenvectors of a beam system with negligible mass shown below, and EI is the flexural rigidity of the beam.
I. (20%) A frame structure with lumped mass is shown below: 3m L/2 m El El It can be shown that t...
Please provide a clear step by step solution.
I. (20%) A frame structure with lumped mass is shown below: 3m L/2 m El El It can be shown that the stiffness and mass matrices of the framed structure with respect to the coordinates u and u2 can be obtained as: 4 01 [A]=7713 41 [M-m and L424J (a) Determine the natural frequencies and modal vectors of the structural system. (b) Assume the first modal vector is estimated as迪 . Use...
Q1- For the system shown below, with small mass of value (m) and lever of mass...
Q1- For the system shown below, with small mass of value (m) and lever of mass moment of inertia (J). • find equivalent mass, equivalent stiffness, and equivalent damping, all these interms of (x) displacement . Get equation of motion Interms of these equivalent quantities. • Find natural frequency (Wn) and damping ratio (zeta). • Find X(t) when the system condition is critically damping ,,X(0)=M and v(0)=0. tinfring
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displ...
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam Note that there is a hinge at B. Take E = 250 GPa, 1-2000 cm 10 kN 2 kN/m 5 kN-m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below....
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute di...
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam. Note that there is a hinge at B. Take E= 250 G Pa, 1 = 2000 cm- 10 kN 5 kN-m 2 kN/m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam...
Consider a cantilever beam under a concentrated force and moment as shown below. The deflections ofthe...
Consider a cantilever beam under a concentrated force and moment as shown below. The deflections ofthe beam under the force F (y) and moment M (y) are given by: 2. y' Mo L-x) , and y2 Me , where EI is the beam's flexural rigidity. The slope of the beam, 0, is the derivative of the deflection. Write a program that asks the user to input beam's length L, flexural rigidity EI (you may consider this as a single parameter,...
QUESTION 1:(15 points) Determine the natural frequency of the system corsisting of a cantilever beam and a spring in Fig.1. Assuming the beam and the spring to be massless, the system has the single DOF defined as the vertical deflection under a weight W 1.2kN .The beam has a length L=4m and the flexural rigidity EI = 2400 kM㎡. The spring has the stiffness 60 kN/m . EI t L Fig.1
Q1. For the system shown in Figure 1 where the beam with mass m and length L is connected to the fixed surfaces through three springs with same stiffness k, (i) Calculate the total kinetic energy and total potential energy of the system; (ii) Derive the equation of motion in terms of rotation angle 0; (iii) Find the natural frequency of the system; (iv) Calculate the natural period if the stiffness k of all springs is doubled; (v) If the...
By stiffness method : determine the displacements at Joint B and
at Joint C in the three-span beam shown in the figure below. The
flexural rigidity of the beam is EI and is constant along the
length of the beam. Note that L1 = L2 = L3 = L P1 = P2 = P3 = P
M = PL
wL = P Also, find the reactions at Joint A.
い12 8
い12 8
determine the equivalent mass(meq)and equivalent
spring stiffness of the system shown in the figure below using x as
the generalized coordinate
neral MES 382: Vibration & Noise Control Determine the equivalent mass (megl and equivalent spring stiffness (kea) of the syslem shown in the figure below using x as the generalized coordinate. b. ko Jo k2 k1
Please provide a clear step by step solution.
I. (20%) A frame structure with lumped mass is shown below: 3m L/2 m El El It can be shown that the stiffness and mass matrices of the framed structure with respect to the coordinates u and u2 can be obtained as: 4 01 [A]=7713 41 [M-m and L424J (a) Determine the natural frequencies and modal vectors of the structural system. (b) Assume the first modal vector is estimated as迪 . Use...
Q1- For the system shown below, with small mass of value (m) and lever of mass moment of inertia (J). • find equivalent mass, equivalent stiffness, and equivalent damping, all these interms of (x) displacement . Get equation of motion Interms of these equivalent quantities. • Find natural frequency (Wn) and damping ratio (zeta). • Find X(t) when the system condition is critically damping ,,X(0)=M and v(0)=0. tinfring
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam Note that there is a hinge at B. Take E = 250 GPa, 1-2000 cm 10 kN 2 kN/m 5 kN-m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below....
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam shown below. Form member and structure stiffness matrices and compute displacements, reactions and internal forces developed in the beam. Note that there is a hinge at B. Take E= 250 G Pa, 1 = 2000 cm- 10 kN 5 kN-m 2 kN/m 10 m
Using the Stiffness Method procedure identify nodes, elements and degrees of freedom (neglect axial stiffness) for the beam...
Consider a cantilever beam under a concentrated force and moment as shown below. The deflections ofthe beam under the force F (y) and moment M (y) are given by: 2. y' Mo L-x) , and y2 Me , where EI is the beam's flexural rigidity. The slope of the beam, 0, is the derivative of the deflection. Write a program that asks the user to input beam's length L, flexural rigidity EI (you may consider this as a single parameter,...
