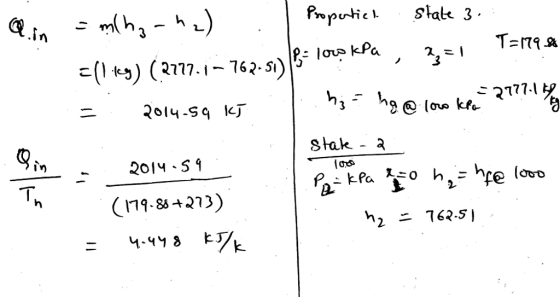

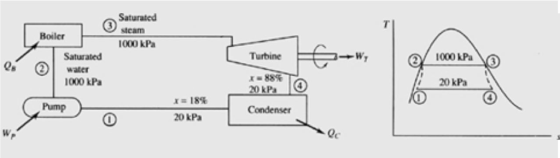

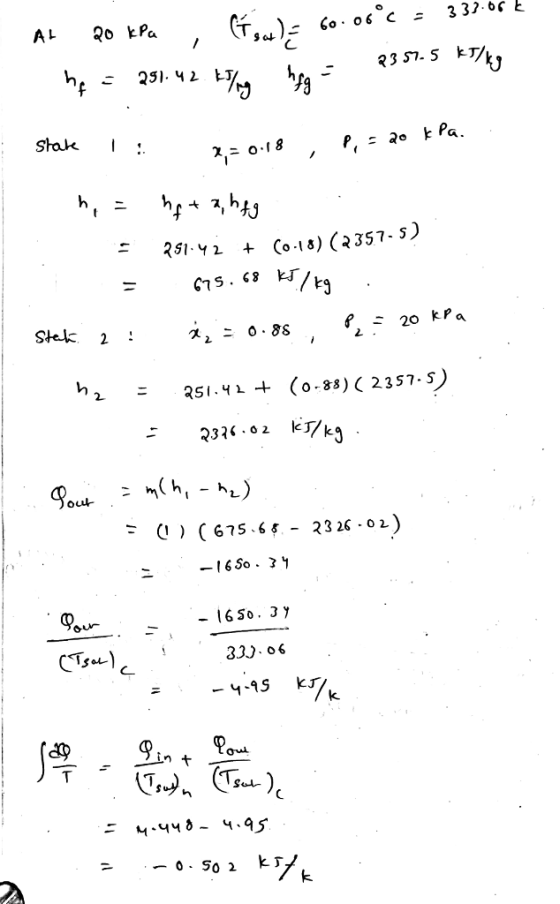

It is proposed to operate a simple steam power plant as shown in
the figure. The water is completely vaporized in the boiler so that
the heat transfer QB takes place at constant temperature. Assume no
heat transfer occurs from the pump or the turbine. Calculate
integral of delta Q over T for the process. (make sure you find the
correct sign, and units of kJ/K.
Homework Answers
Add Answer to:
It is proposed to operate a simple steam power plant as shown in
the figure. The...
You are to analyze a simple steam power plant. At the boiler exit, the pressure is...
You are to analyze a simple steam power plant. At the boiler exit, the pressure is 8 MPa and the temperature is 1000 °C. The turbine isentropic efficiency is 85%. The condenser pressure is 15 kPa and the water is a saturated liquid at the condenser exit. The pump isentropic efficiency is 80%. Answer the following: a) What is the quality at the exit in %, if the turbine is assumed isentropic? b) What is the work output of the...
Steam generated in a power plant at a pressure of 8,600 kPa and temperature of 600°C...
Steam generated in a power plant at a pressure of 8,600 kPa and
temperature of
600°C is fed to a turbine. Exhaust from the turbine enters a
condenser at 10 kPa, where it is
condensed to saturated liquid, which is then pumped to the boiler.
The turbine and the pump in the Rankine cycle operate at 80% and
75% efficiency, respectively.
a. Determine the rates of heat transfer in the boiler
b.Determine the rate of heat transfer in the condenser...
Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed...
Consider a steam power plant that operates on the ideal
regenerative Rankine cycle with a closed feedwater heater as shown
in the figure. The plant maintains the turbine inlet at 3000 kPa
and 3508C; and operates the condenser at 20 kPa. Steam is extracted
at 1000 kPa to serve the closed feedwater heater, which discharges
into the condenser after being throttled to condenser pressure.
Calculate the work produced by the turbine, the work consumed by
the pump, and the heat...
10-48 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a...
10-48 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at 3000 kPa and 350°C; and operates the condenser at 20 kPa. Steam is extracted at 1000 kPa to serve the closed feedwater heater, which discharges into the condenser after being throttled to condenser pressure. Calculate the work pro- duced by the turbine, the work consumed by the pump, and...
A steam power plant is based on the Rankine cycle with reheat (refer to the figure below). Steam ...
A steam power plant is based on the Rankine cycle with reheat (refer to the figure below). Steam is produced by the boiler/superheater (H-1) at 100 bar and 600 C at a rate of 2.5 kgs. This is expanded to 10 bar in the turbine T-1 and then reheated to 600 °C in heater H-2. The steam is then expanded in turbine T-2 to a pressure of 0.1 bar. The steam is then condensed in condenser (C-1) which operates at...
10-55 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a...
10-55 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at 3000 kPa and 350°C and operates the condenser at 20 kPa. Steam is extracted at 1000 kPa to serve the closed feedwater heater, which discharges into the condenser after being throt- tled to condenser pressure. Calculate the work produced by the turbine, the work consumed by the pump, and...
Consider a steam power plant that operates on a simple ideal Rankine cycle and has a...
Consider a steam power plant that operates on a simple ideal Rankine cycle and has a net power output of 45 MW (Wnetout - Wtout - Wpin). Steam enters the isentropic turbine at 7 MPa and 500-C and is cooled in the condenser at a pressure of 10 kPa by running cooling water through the condenser (heat exchanger). Determine the following: (Note: Show the procedure of your solution for all parts) Boiler P3 7 MPa 3 T,-500 °C 2 Pump...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a c...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser at 100 kPa pumped into a boiler operating at 1.0 MPa. The steam leaves the boiler at 350 °C and is expanded through a turbine with the exit stream having a quality between 0 and 1. If the turbine is 80% efficient and the pump is 90% efficient in this Rankine cycle, what is the overall efficiency of the power cycle?
Problem 5-Irreversible Power...
A Rankine Cycle based steam power plant produces 200 MW of power. Steam exits the boiler...
A Rankine Cycle based steam power plant produces 200 MW of power. Steam exits the boiler at 3 MPa and 500° C. The turbine exit is at 40 kPa. Isentropic efficiencies of the turbine and pump are 75% and 70% respectively. Show the cycle on a T-s diagram Calculate the mass flow rate of steam Determine the heat transfer rates in the boiler and condenser in MW Determine the cycle efficiency Determine the mass flow rate of the condenser cooling...
Consider a steam power plant which operates on the simple ideal Rankine cycle (shown in the...
Consider a steam power plant which operates on the simple ideal
Rankine cycle (shown in the next page), where the boiler pressure
is 3 MPa and the condenser saturation temperature is 50°C. The
temperature at the exit of the boiler is 500°C. Water leaves the
condenser as a saturated liquid. The mass flow rate through each
component is 15 kg/s. Calculate:
1. The power output of the steam power plant
2. The thermal efficiency of the steam power plant
Now,...
Steam generated in a power plant at a pressure of 8,600 kPa and
temperature of
600°C is fed to a turbine. Exhaust from the turbine enters a
condenser at 10 kPa, where it is
condensed to saturated liquid, which is then pumped to the boiler.
The turbine and the pump in the Rankine cycle operate at 80% and
75% efficiency, respectively.
a. Determine the rates of heat transfer in the boiler
b.Determine the rate of heat transfer in the condenser...
Consider a steam power plant that operates on the ideal
regenerative Rankine cycle with a closed feedwater heater as shown
in the figure. The plant maintains the turbine inlet at 3000 kPa
and 3508C; and operates the condenser at 20 kPa. Steam is extracted
at 1000 kPa to serve the closed feedwater heater, which discharges
into the condenser after being throttled to condenser pressure.
Calculate the work produced by the turbine, the work consumed by
the pump, and the heat...
10-48 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at 3000 kPa and 350°C; and operates the condenser at 20 kPa. Steam is extracted at 1000 kPa to serve the closed feedwater heater, which discharges into the condenser after being throttled to condenser pressure. Calculate the work pro- duced by the turbine, the work consumed by the pump, and...
A steam power plant is based on the Rankine cycle with reheat (refer to the figure below). Steam is produced by the boiler/superheater (H-1) at 100 bar and 600 C at a rate of 2.5 kgs. This is expanded to 10 bar in the turbine T-1 and then reheated to 600 °C in heater H-2. The steam is then expanded in turbine T-2 to a pressure of 0.1 bar. The steam is then condensed in condenser (C-1) which operates at...
10-55 Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at 3000 kPa and 350°C and operates the condenser at 20 kPa. Steam is extracted at 1000 kPa to serve the closed feedwater heater, which discharges into the condenser after being throt- tled to condenser pressure. Calculate the work produced by the turbine, the work consumed by the pump, and...
Consider a steam power plant that operates on a simple ideal Rankine cycle and has a net power output of 45 MW (Wnetout - Wtout - Wpin). Steam enters the isentropic turbine at 7 MPa and 500-C and is cooled in the condenser at a pressure of 10 kPa by running cooling water through the condenser (heat exchanger). Determine the following: (Note: Show the procedure of your solution for all parts) Boiler P3 7 MPa 3 T,-500 °C 2 Pump...
Problem 5-Irreversible Power cycle A simple power plant cycle has saturated liquid water from a condenser at 100 kPa pumped into a boiler operating at 1.0 MPa. The steam leaves the boiler at 350 °C and is expanded through a turbine with the exit stream having a quality between 0 and 1. If the turbine is 80% efficient and the pump is 90% efficient in this Rankine cycle, what is the overall efficiency of the power cycle?
Problem 5-Irreversible Power...
Consider a steam power plant which operates on the simple ideal
Rankine cycle (shown in the next page), where the boiler pressure
is 3 MPa and the condenser saturation temperature is 50°C. The
temperature at the exit of the boiler is 500°C. Water leaves the
condenser as a saturated liquid. The mass flow rate through each
component is 15 kg/s. Calculate:
1. The power output of the steam power plant
2. The thermal efficiency of the steam power plant
Now,...
