Question

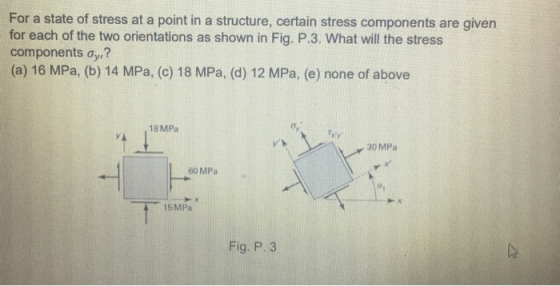

For a state of stress at a point in a structure, certain stress components are given for each of the two orientations as show
0 0
Add a comment Improve this question Transcribed image text
Answer #1

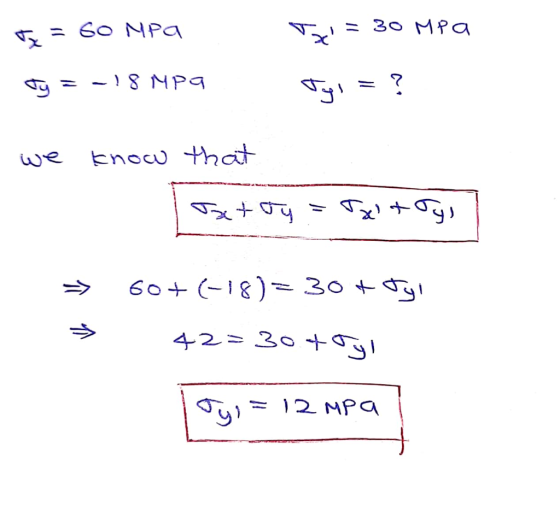

= GO MPa = 30 MPa Ty = -18 MPa Tyl = we know that Tatty = Txitys 60+ (-18) = 30 + tyl 42=304 by Dyla - 12 MPa

Add a comment
