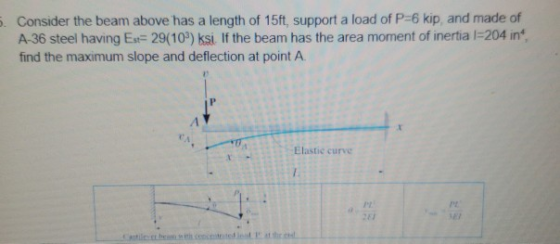

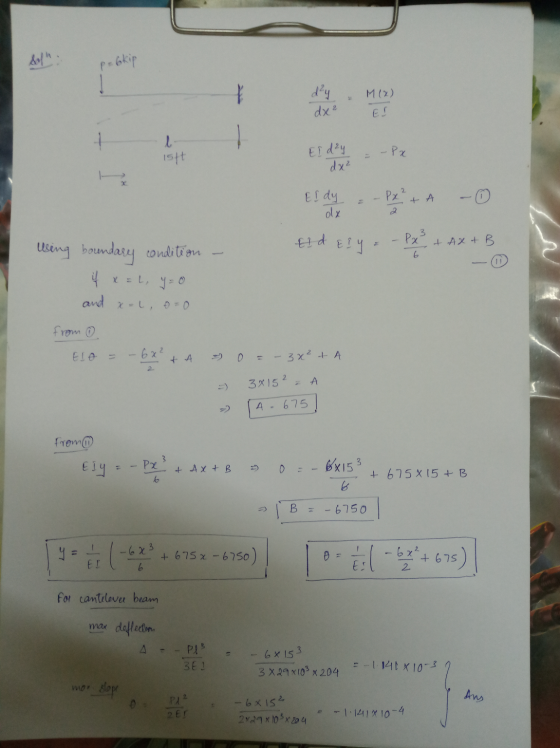

Consider the beam above has a length of 15ft, support a load of P=6 kip, and...
5.2 kip-ft 9.5 kip/ft I. PROBLEMS 3) (25 points) The cantilivered W16x45 beam is made of...
5.2 kip-ft 9.5 kip/ft I. PROBLEMS 3) (25 points) The cantilivered W16x45 beam is made of A-36 steel and is subjected to the loading shown. Determine: a) the shear and bending moment diagrams. b) the maximum deflection (in in) at the point B and maximum slope (in rad) of point B using superposition, and c) if a roller support is introduced at B, determine, the force on this additional roller. 1 1 1 1 1 1 1 WW 18 ft
Beam Deflection--Superposition Method The W8x48 cantilevered beam is 10 kip made of A-36 steel. Determine the...
Beam Deflection--Superposition Method The W8x48 cantilevered beam is 10 kip made of A-36 steel. Determine the deflection at its end A. 15 kipi 60 PEARSON Speed 00:39 / 13.00 info CC For the beam deflection problem given in the video, the method of superposition is used to: determine the maximum deflection determine the maximum slope of the elastic deflection curve determine both the maximum deflection and the maximum slope of the elastic deflection curve none of the above Submit Request...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
А w18 x 40 steel spandrel (edge) beam spans 20'. The beam supports a uniform floor live load of 1 kip/ft and a uniform floor dead load of 0.5 kip/ft. The beam also supports brick veneer weigh...
А w18 x 40 steel spandrel (edge) beam spans 20'. The beam supports a uniform floor live load of 1 kip/ft and a uniform floor dead load of 0.5 kip/ft. The beam also supports brick veneer weighing .6 kip/ft as a uniform dead load. The maximum allowable total load deflection for beams supporting masonry (brick or block) is L/640. Calculate the live load and total load deflections. Do the live load and total load deflections exceed the allowable deflections for...
The frame below has wind load and dead as shown. Use w(Dead) = 6 kip/ft and...
The frame below has wind load and dead as shown. Use w(Dead) = 6
kip/ft and w(Live) = 3 kip/ft, L = 30 ft and H = 15 ft. The beams
and columns have modulus of elasticity E of 29000 ksi and moment of
inertias I(beam) = 2000 in4 and I(column) = 800
in4. Similarly they have cross-sectional areas A(beam) =
20 in2 and A(column) = 25 in2. Consider that
the wind can act in both horizontal directions.
Determine:
The...
The queen-post trussed beam is used to support a uniform load of 4 k/ft. Determine the...
The queen-post trussed beam is used to support a uniform load of 4 k/ft. Determine the force developed in each of the five struts. Neglect the thickness of the beam and assume the truss members are pin connected to the beam. Also, neglect the effect of axial compression and shear in the beam. The cross-sectional area of each strut is 3 in2, and the moment of inertia for the beam is 600 in4. Also, E 29(103) ksi. Prob. 9-36 4...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting th...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
. Design a beam for a 30-ft simple span to support the working uniform loads of...
. Design a beam for a 30-ft simple span to support the working uniform loads of wo 1.25 k/ft (includes beam self-weight) and wi-1.75 k/ft. The maximum permissible total load deflection under working loads is 1/360 of the span. Use 50 ksi steel and consider moment, shear and deflection. The beam is to be braced laterally at its ends and the mid-span only. (25-POINTS)
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
5.2 kip-ft 9.5 kip/ft I. PROBLEMS 3) (25 points) The cantilivered W16x45 beam is made of A-36 steel and is subjected to the loading shown. Determine: a) the shear and bending moment diagrams. b) the maximum deflection (in in) at the point B and maximum slope (in rad) of point B using superposition, and c) if a roller support is introduced at B, determine, the force on this additional roller. 1 1 1 1 1 1 1 WW 18 ft
Beam Deflection--Superposition Method The W8x48 cantilevered beam is 10 kip made of A-36 steel. Determine the deflection at its end A. 15 kipi 60 PEARSON Speed 00:39 / 13.00 info CC For the beam deflection problem given in the video, the method of superposition is used to: determine the maximum deflection determine the maximum slope of the elastic deflection curve determine both the maximum deflection and the maximum slope of the elastic deflection curve none of the above Submit Request...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
А w18 x 40 steel spandrel (edge) beam spans 20'. The beam supports a uniform floor live load of 1 kip/ft and a uniform floor dead load of 0.5 kip/ft. The beam also supports brick veneer weighing .6 kip/ft as a uniform dead load. The maximum allowable total load deflection for beams supporting masonry (brick or block) is L/640. Calculate the live load and total load deflections. Do the live load and total load deflections exceed the allowable deflections for...
The frame below has wind load and dead as shown. Use w(Dead) = 6
kip/ft and w(Live) = 3 kip/ft, L = 30 ft and H = 15 ft. The beams
and columns have modulus of elasticity E of 29000 ksi and moment of
inertias I(beam) = 2000 in4 and I(column) = 800
in4. Similarly they have cross-sectional areas A(beam) =
20 in2 and A(column) = 25 in2. Consider that
the wind can act in both horizontal directions.
Determine:
The...
The queen-post trussed beam is used to support a uniform load of 4 k/ft. Determine the force developed in each of the five struts. Neglect the thickness of the beam and assume the truss members are pin connected to the beam. Also, neglect the effect of axial compression and shear in the beam. The cross-sectional area of each strut is 3 in2, and the moment of inertia for the beam is 600 in4. Also, E 29(103) ksi. Prob. 9-36 4...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
. Design a beam for a 30-ft simple span to support the working uniform loads of wo 1.25 k/ft (includes beam self-weight) and wi-1.75 k/ft. The maximum permissible total load deflection under working loads is 1/360 of the span. Use 50 ksi steel and consider moment, shear and deflection. The beam is to be braced laterally at its ends and the mid-span only. (25-POINTS)
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
