A 70.0 kg person stands on a 135 kg board. The board is supported at both...

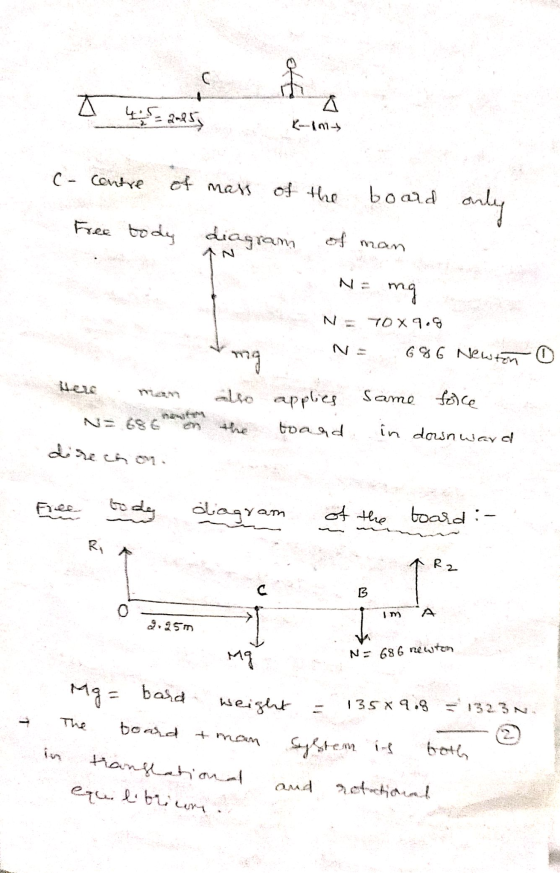

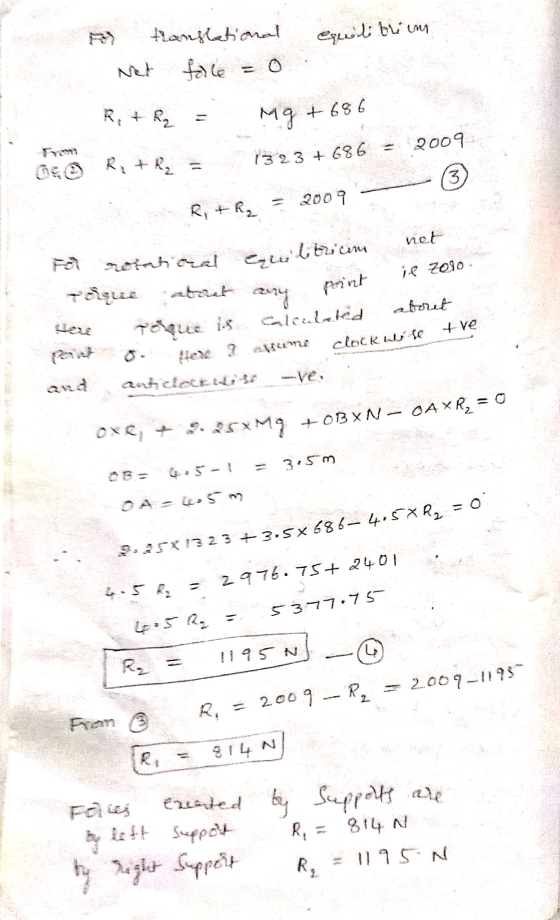

A 70.0 kg person stands on a 135 kg board. The board is supported at both ends and is 4.50 m long. The person stands 1.00 m from the right end. Find the forces exerted by the supports at each end.
Please show all formulas and work. If possible a diagram as well. thank you
Homework Answers
Add Answer to:
A 70.0 kg person stands on a 135 kg board. The board is
supported at both...
81. . . A 67.0-kg person stands on a lightweight diving board supported by two pillars...
81. . . A 67.0-kg person stands on a lightweight diving board supported by two pillars one at the end of the board, the other 1.10 m away. The pillar at the end of the board exerts a downward force of 828 N. (a) How far from that pillar is the person standing? (b) Find the force exerted by the second pillar.
In the system below, a board is supported by two supports. The 12.0 kg mass is...
In
the system below, a board is supported by two supports. The 12.0 kg
mass is 1.0m from the the left end of the board, and the 20.0 kg
mass is 2.0m from the right end of the board. The mass of the board
is 15.0 kg and the length is 5.0 m. Find F1 and F2, the forces of
the support.
. In the system below, a board is supported by two supports. The 12.0 kg mass is 1.0...
A homogenous board of 5.0 m in length and 260 N in weight is lied horizontally...
A homogenous board of 5.0 m in length and 260 N in weight is
lied horizontally on two supports. The left support is located at
the left end of the board and the right support is located at 1 m
from the right end of the board. A person with a mass of 50 kg
stand on the board at a distance of 0.9 m from the right end of the
board. a) Draw the free body diagram of the...
A nervous diver stands at rest at the end of a 31 kg diving board as...
A nervous diver stands at rest at the end of a 31 kg diving
board as shown in the figure. If the mass of the diver is 135 kg
and the board is 4.7 m long, what is the net torque exerted on the
diving board due to gravity about the fixed end of the board?
Assume the mass of the board is uniformly distributed, and be sure
to include the proper sign for the torque.
A diving board length L = 5.40 m that weighs 220 N is supported by two...
A diving board length L = 5.40 m that weighs 220 N is supported by two pillars. One pillar is at the left end of the diving board, as shown below; the other is distance d = 1.60 m away 1. Find the magnitude of the force exerted by the left pillar when a 90.0 kg diver stands at the far end of the board. 2. Find the direction of the force exerted by the right pillar when a 90.0...
An 82.0 kg-diver stands at the edge of a light 5.00-m diving board, which is supported...
An 82.0 kg-diver stands at the edge of a light 5.00-m diving
board, which is supported by two pillars 1.60 m apart, as shown in
Fig. 12-3.
(a) Find the force exerted by pillar
A.
(b) Find the force exerted by pillar
B.
1.60 m 5.00 m
3.3 A person is lying on a board, which is supported at both ends. A vertical...
3.3 A person is lying on a board, which is supported at both ends. A vertical reaction force VA is acting on the board at point A and passes through the origin of the coordinate system. A vertical reaction force VB is acting at the point located in iB -le I is known that the weight of the person is F and the weight of the board is P. The vector that determines the centroid C of the person is...
A 77.7 kg diver stands at the end of a 25.9 kg springboard. The board is...
A 77.7 kg diver stands at the end of a 25.9 kg springboard. The board is attached to a hinge at the left end but simply rests on a middle right support. The left end hinge, middle support, and diver are 1.5m and 1.5m (total length 3m) from each other, respectively. 1. What is the magnitude of the vertical force exerted by the right support (at center of diving board) on the board? 2. What is the magnitude of the...
A uniform diving board of mass 100kg and length 4m is supported at its left end...
A uniform diving board of mass 100kg and length 4m is supported at its left end and its center by two seperate supports. A 50kg child walks to the right end of the board and stands there. Assuming that the board does not bend or break find the necessary support forces on the left end support and the center support.
1. a 75kg gymnast stands on a horizontal board 4.5m from one end. The board is...
1. a 75kg gymnast stands on a horizontal board 4.5m from one end. The board is 15kg and 7m long, supported at each end. What is the total force provided by both supports of the board. With what force does the support that is closest to the gymnast push up? 2. Car A weighs 1420 kg and is traveling North at a speed of 30m/s. Car B weighs 1500kg and is traveling East at a speed of 45ms. What is...
81. . . A 67.0-kg person stands on a lightweight diving board supported by two pillars one at the end of the board, the other 1.10 m away. The pillar at the end of the board exerts a downward force of 828 N. (a) How far from that pillar is the person standing? (b) Find the force exerted by the second pillar.
In
the system below, a board is supported by two supports. The 12.0 kg
mass is 1.0m from the the left end of the board, and the 20.0 kg
mass is 2.0m from the right end of the board. The mass of the board
is 15.0 kg and the length is 5.0 m. Find F1 and F2, the forces of
the support.
. In the system below, a board is supported by two supports. The 12.0 kg mass is 1.0...
A homogenous board of 5.0 m in length and 260 N in weight is
lied horizontally on two supports. The left support is located at
the left end of the board and the right support is located at 1 m
from the right end of the board. A person with a mass of 50 kg
stand on the board at a distance of 0.9 m from the right end of the
board. a) Draw the free body diagram of the...
A nervous diver stands at rest at the end of a 31 kg diving
board as shown in the figure. If the mass of the diver is 135 kg
and the board is 4.7 m long, what is the net torque exerted on the
diving board due to gravity about the fixed end of the board?
Assume the mass of the board is uniformly distributed, and be sure
to include the proper sign for the torque.
An 82.0 kg-diver stands at the edge of a light 5.00-m diving
board, which is supported by two pillars 1.60 m apart, as shown in
Fig. 12-3.
(a) Find the force exerted by pillar
A.
(b) Find the force exerted by pillar
B.
1.60 m 5.00 m
3.3 A person is lying on a board, which is supported at both ends. A vertical reaction force VA is acting on the board at point A and passes through the origin of the coordinate system. A vertical reaction force VB is acting at the point located in iB -le I is known that the weight of the person is F and the weight of the board is P. The vector that determines the centroid C of the person is...
