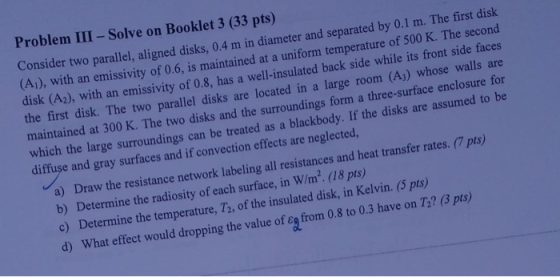

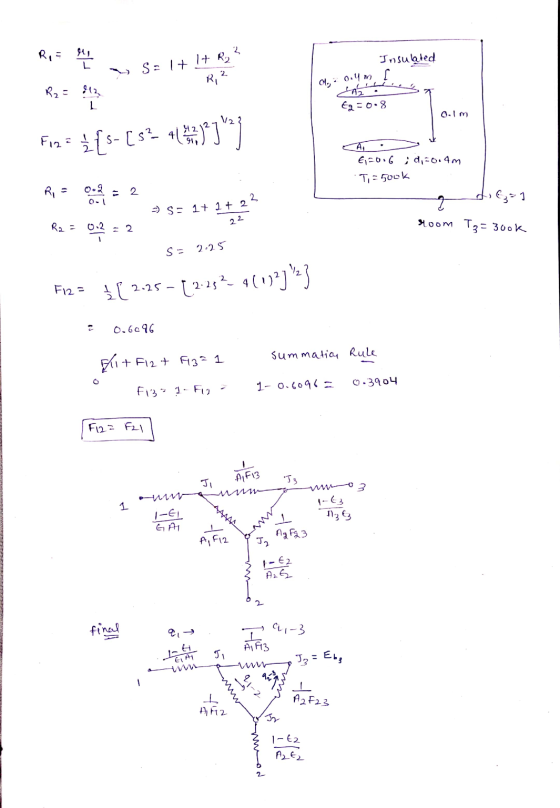

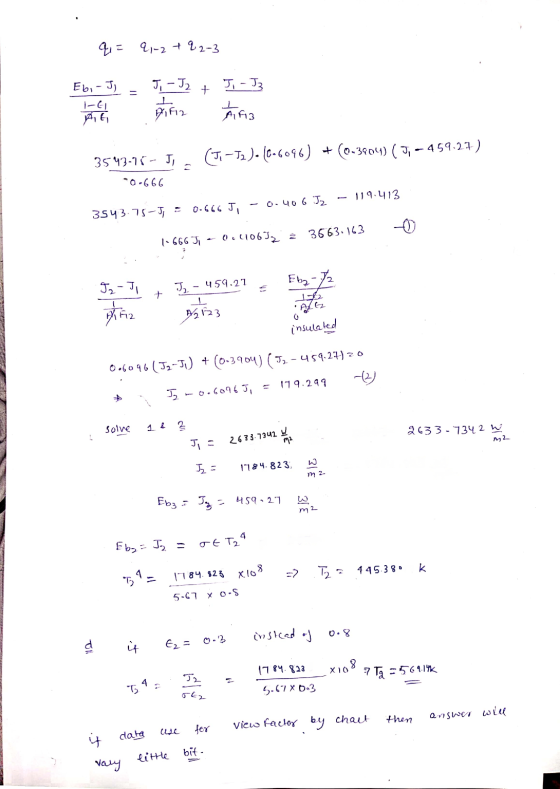

Problem III - Solve on Booklet 3 (33 pts) Consider two parallel, aligned disks, 0.4 m...
(a) Schematically draw the spectral emissive power of two blackbodies with the temperature of 2400 K...
(a) Schematically draw the spectral emissive power of two blackbodies with the temperature of 2400 K and 300 K (ie. EBA versus λ). What are the wavelengths at the maximum spectral emissive power? (5 pts) (b) A thin-walled plate separates the interior of a large furnace from surroundings at 300 K. The plate is fabricated from a ceramic material for which diffuse surface behavior may be assumed and the exterior surface is air-cooled. With the furnace operating at 2400 K...
Problem 7: A special surface coating on a square panel that is 5m x5 m on...
Problem 7: A special surface coating on a square panel that is 5m x5 m on a side is cured by placing the panel directly under a radiant heat source having the same dimensions. The heat source is diffuse and gray and operates with a power input of 75 kW. The top surface of the heater, as well as the bottom surface of the panel, may be assumed to be well insulated, and the arrangement exists in a large room...
Done Expert Q&A Consider the perpendicular rectangles shows ieally. -04 0 03 -0.2m r-0.5m Determine the shape factor F 02 A drying oven consists of a long semicincular dact of diameter D 1m....
Done Expert Q&A Consider the perpendicular rectangles shows ieally. -04 0 03 -0.2m r-0.5m Determine the shape factor F 02 A drying oven consists of a long semicincular dact of diameter D 1m. T-1200 -325K D-1 Materials to be dried cover the base of the oven while the wall is maintained at 1200 K. What is the drying rate per unit length of the oven Okpls-m) if a water coted layer of material is maintained at 323 K doring the...
Homework 7 heat transfer 2018-20 1) A horizontal tube of 12.5-mm dimeter with an outer srface temperature of 240°C is placed in a room with an air temperature of 20°C. Estimate the heat transfer rate...
Homework 7 heat transfer 2018-20 1) A horizontal tube of 12.5-mm dimeter with an outer srface temperature of 240°C is placed in a room with an air temperature of 20°C. Estimate the heat transfer rate per unit length of the tube due to free convection. 2) Air at -10°C flows at 10 m/s over the roof plate of two 5m length rooms whose air is at Too-200C. The roof plate is 0.20-m thick concrete (k = 0.6 w/ m. K)....
3. (40pts) A furnace is shaped like a long equilateral triangular duct where the width of...
3. (40pts) A furnace is shaped like a long equilateral triangular duct where the width of each side is 2 m. Heat is supplied from the base surface, whose emissivity is £1 = 0.8, at a rate of 800 W/m² while the side surfaces, whose emissivities are 0.5, are maintained at 500 K. Neglecting the end effects, determine the temperature of the base surface. Can you treat this geometry as a two-surface enclosure? Ta = 500 K Ez = 0.5...
Consider a circular furnace that is 0.5 m long and 0.5 m in diameter. The two...
Consider a circular furnace that is 0.5 m long and 0.5 m in diameter. The two ends have diffuse, gray surfaces that are maintained at 400 and 500 K with emissivities of 0.4 and 0.5, respectively. The lateral surface is also diffuse and gray with an emissivity of 0.7 and a temperature of 800 K. Determine the net radiative heat transfer rate from each of the surfaces.
8. Consider two square parallel vertical Plate 2 (on the right) is insulated and its tem...
8. Consider two square parallel vertical Plate 2 (on the right) is insulated and its tem are surrounded by its temperature is T. = 300 K. parallel vertical plates of 1 m side. Plate 1 (on the left) is kept at T. - 700 K and is insulated and its temperature is T2 = 300 K. The plates are placed 0.5 m apart and 3) with walls at Tw=270 K. The air in the room is stagnant and a. Find...
a 0.4 m diameter, thin walled steel pipe is used to transport saturated steam Problem 3.049...
a 0.4 m diameter, thin walled steel pipe is used to transport
saturated steam
Problem 3.049 A 0.4-m-diameter, thin-walled steel pipe is used to transport saturated steam at a pressure of 20 bars in a room for which the air temperature is 25°C and the convection heat transfer coefficient at the outer surface of the pipe is 20 W/m2-K. (a) What is the heat loss per unit length from the bare pipe (no insulation)? (b) Estimate the heat loss per...
Problem 4 [25 pts] Grader & Score Consider two circular disks centered on the origin so...
Problem 4 [25 pts] Grader & Score Consider two circular disks centered on the origin so that when viewed from the side (i.e. the negative y-axis) they appear as bars in the diagram. Each disk has an area R2 and a positive charge Q. The disks are separated by a small distance s R so that the center of the top disk is located at<0,Q,s/2 > and the center of the bottom disk is at < 0,0, -s/2 >. Point...
solve this problem and the answer most be same as the second pic Figure 8.35: View...
solve this problem and the answer most be same as the second
pic
Figure 8.35: View factor equation for parallel plates with midlines connected by per- pendicular Solar radiation Glass roof semi-circular cross-section Leaf surface 30 m 10 m Figure 8.36: Schematic of a greenhouse. 8.16 Greerhouse Energy Balance A greenhouse that has its bottom surface (floor) covered with leafy plants is shown as a schematic in Figure 8.36. The glass dome of the roof is semi-circular and the green-...
(a) Schematically draw the spectral emissive power of two blackbodies with the temperature of 2400 K and 300 K (ie. EBA versus λ). What are the wavelengths at the maximum spectral emissive power? (5 pts) (b) A thin-walled plate separates the interior of a large furnace from surroundings at 300 K. The plate is fabricated from a ceramic material for which diffuse surface behavior may be assumed and the exterior surface is air-cooled. With the furnace operating at 2400 K...
Problem 7: A special surface coating on a square panel that is 5m x5 m on a side is cured by placing the panel directly under a radiant heat source having the same dimensions. The heat source is diffuse and gray and operates with a power input of 75 kW. The top surface of the heater, as well as the bottom surface of the panel, may be assumed to be well insulated, and the arrangement exists in a large room...
Done Expert Q&A Consider the perpendicular rectangles shows ieally. -04 0 03 -0.2m r-0.5m Determine the shape factor F 02 A drying oven consists of a long semicincular dact of diameter D 1m. T-1200 -325K D-1 Materials to be dried cover the base of the oven while the wall is maintained at 1200 K. What is the drying rate per unit length of the oven Okpls-m) if a water coted layer of material is maintained at 323 K doring the...
Homework 7 heat transfer 2018-20 1) A horizontal tube of 12.5-mm dimeter with an outer srface temperature of 240°C is placed in a room with an air temperature of 20°C. Estimate the heat transfer rate per unit length of the tube due to free convection. 2) Air at -10°C flows at 10 m/s over the roof plate of two 5m length rooms whose air is at Too-200C. The roof plate is 0.20-m thick concrete (k = 0.6 w/ m. K)....
3. (40pts) A furnace is shaped like a long equilateral triangular duct where the width of each side is 2 m. Heat is supplied from the base surface, whose emissivity is £1 = 0.8, at a rate of 800 W/m² while the side surfaces, whose emissivities are 0.5, are maintained at 500 K. Neglecting the end effects, determine the temperature of the base surface. Can you treat this geometry as a two-surface enclosure? Ta = 500 K Ez = 0.5...
8. Consider two square parallel vertical Plate 2 (on the right) is insulated and its tem are surrounded by its temperature is T. = 300 K. parallel vertical plates of 1 m side. Plate 1 (on the left) is kept at T. - 700 K and is insulated and its temperature is T2 = 300 K. The plates are placed 0.5 m apart and 3) with walls at Tw=270 K. The air in the room is stagnant and a. Find...
a 0.4 m diameter, thin walled steel pipe is used to transport
saturated steam
Problem 3.049 A 0.4-m-diameter, thin-walled steel pipe is used to transport saturated steam at a pressure of 20 bars in a room for which the air temperature is 25°C and the convection heat transfer coefficient at the outer surface of the pipe is 20 W/m2-K. (a) What is the heat loss per unit length from the bare pipe (no insulation)? (b) Estimate the heat loss per...
Problem 4 [25 pts] Grader & Score Consider two circular disks centered on the origin so that when viewed from the side (i.e. the negative y-axis) they appear as bars in the diagram. Each disk has an area R2 and a positive charge Q. The disks are separated by a small distance s R so that the center of the top disk is located at<0,Q,s/2 > and the center of the bottom disk is at < 0,0, -s/2 >. Point...
solve this problem and the answer most be same as the second
pic
Figure 8.35: View factor equation for parallel plates with midlines connected by per- pendicular Solar radiation Glass roof semi-circular cross-section Leaf surface 30 m 10 m Figure 8.36: Schematic of a greenhouse. 8.16 Greerhouse Energy Balance A greenhouse that has its bottom surface (floor) covered with leafy plants is shown as a schematic in Figure 8.36. The glass dome of the roof is semi-circular and the green-...
