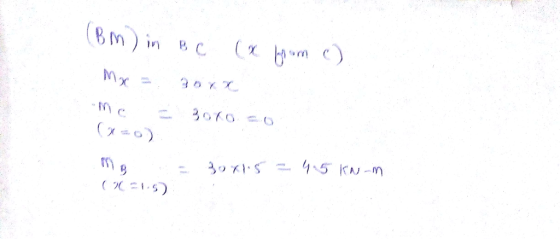

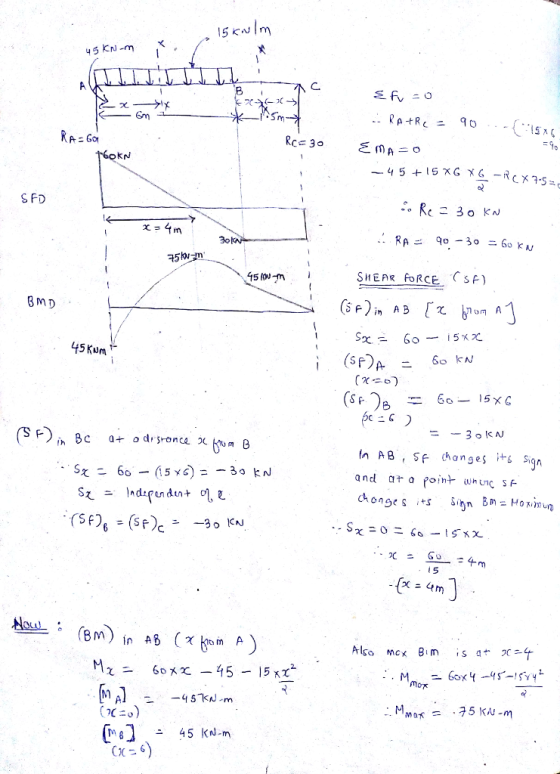

![KN SFD 3o SHEAR FORCE CSF) 45 Kum 6o KN にN - 一3 tn AB, SF hanges s Sig 叱こ 1 5 (BM) in AB Also MCK Bim is aャ @..].므 45 kN_n](http://img.homeworklib.com/questions/638212e0-8f6c-11ec-9727-95e06d2f2ee9.png?x-oss-process=image/resize,w_560)
Add Answer to:
Draw the Sheer and Momennt diagrams of the beam
15kN/m 5 kN-m Problem 3. 6 m...
Part II: Problem 5 (15 points) Draw the shear and moment diagrams for the beam and...
Part II: Problem 5 (15 points) Draw the shear and moment
diagrams for the beam and determine the maximum shear and the
maximum moment.
Part II: Problem 5 (15 points) Draw the shear and moment diagrams for the beam and determine the maximum shear and the maximum moment. 15 kN 5 kN/m 80 kNm B (a)
Test #3 (Chapter 6) Draw all necessary free body diagrams for each problem. The compound beam...
Test #3 (Chapter 6) Draw all necessary free body diagrams for each problem. The compound beam is fixed at A and supported by rockers at B and C. There are pins at D and E. Determine the support reactions at A, B, and C. 1. 15 kN 30 kN m 6 m 6 m 2 m 2 m 2 m
7–53. Draw the shear and moment diagrams for the beam. 1.5 kN/m - 3 m Prob....
7–53. Draw the shear and moment diagrams for the beam. 1.5 kN/m - 3 m Prob. 7–53
Chapter 5, Problem 5/120 Draw the shear and moment diagrams for the loaded beam. After you...
Chapter 5, Problem 5/120 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work 4 kN/m 18 kN m 6 m 10 91 kN Questions: kN m kN m KN·m kN m When x-4.3 m, V hen x = 8.9 m, V = When x = 17.7 m, V= When x = 22.2 m, v = kN M The maximum (absolute value) shear force in the...
Draw the shear and moment diagrams for the cantilever beam in Fig. 6-15a. 2 kN 1.5...
Draw the shear and moment diagrams for the cantilever beam in Fig. 6-15a. 2 kN 1.5 kN/m 2 m 2 m
4. Draw the shear and moment diagrams for the compound beam. ((Lec/Tute a half) 5 kN/m...
4. Draw the shear and moment diagrams for the compound beam. ((Lec/Tute a half) 5 kN/m ID ІВ 2 m 1 m
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5...
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5 m
Problem 3 Draw the shear and moment diagrams for the following beams. 20 kN 40 kN/m 150 kN m 8 m 8 kN 8 KN 15 kN/m 20 k...
Problem 3 Draw the shear and moment diagrams for the following beams. 20 kN 40 kN/m 150 kN m 8 m 8 kN 8 KN 15 kN/m 20 kN .m .75 m1 m I m0 0.25 m 1 m
Draw the shear and bending moment diagrams 10 kN 8 kN 15 kN m 3 m
Draw the shear and bending moment diagrams
10 kN 8 kN 15 kN m 3 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN...
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
Part II: Problem 5 (15 points) Draw the shear and moment
diagrams for the beam and determine the maximum shear and the
maximum moment.
Part II: Problem 5 (15 points) Draw the shear and moment diagrams for the beam and determine the maximum shear and the maximum moment. 15 kN 5 kN/m 80 kNm B (a)
Test #3 (Chapter 6) Draw all necessary free body diagrams for each problem. The compound beam is fixed at A and supported by rockers at B and C. There are pins at D and E. Determine the support reactions at A, B, and C. 1. 15 kN 30 kN m 6 m 6 m 2 m 2 m 2 m
7–53. Draw the shear and moment diagrams for the beam. 1.5 kN/m - 3 m Prob. 7–53
Chapter 5, Problem 5/120 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work 4 kN/m 18 kN m 6 m 10 91 kN Questions: kN m kN m KN·m kN m When x-4.3 m, V hen x = 8.9 m, V = When x = 17.7 m, V= When x = 22.2 m, v = kN M The maximum (absolute value) shear force in the...
Draw the shear and moment diagrams for the cantilever beam in Fig. 6-15a. 2 kN 1.5 kN/m 2 m 2 m
4. Draw the shear and moment diagrams for the compound beam. ((Lec/Tute a half) 5 kN/m ID ІВ 2 m 1 m
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5 m
Problem 3 Draw the shear and moment diagrams for the following beams. 20 kN 40 kN/m 150 kN m 8 m 8 kN 8 KN 15 kN/m 20 kN .m .75 m1 m I m0 0.25 m 1 m
Draw the shear and bending moment diagrams
10 kN 8 kN 15 kN m 3 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
Example Draw complete shear and moment diagrams for the beam shown in Fig y 36 kN 18 kN/m kN*m AB A 2m 4 m 2 m 4 m
