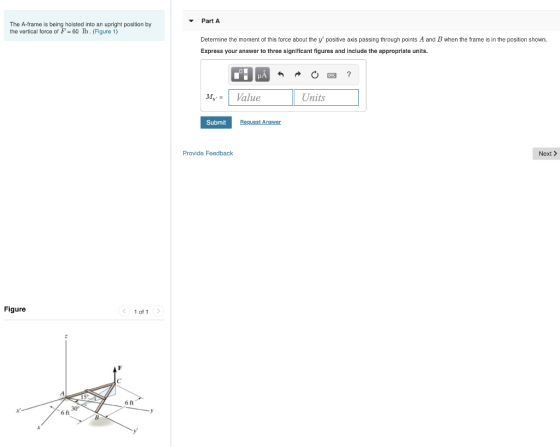

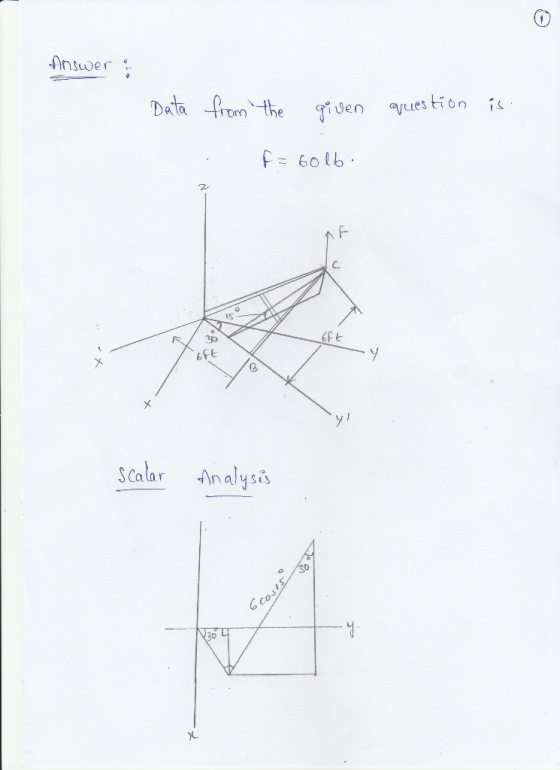

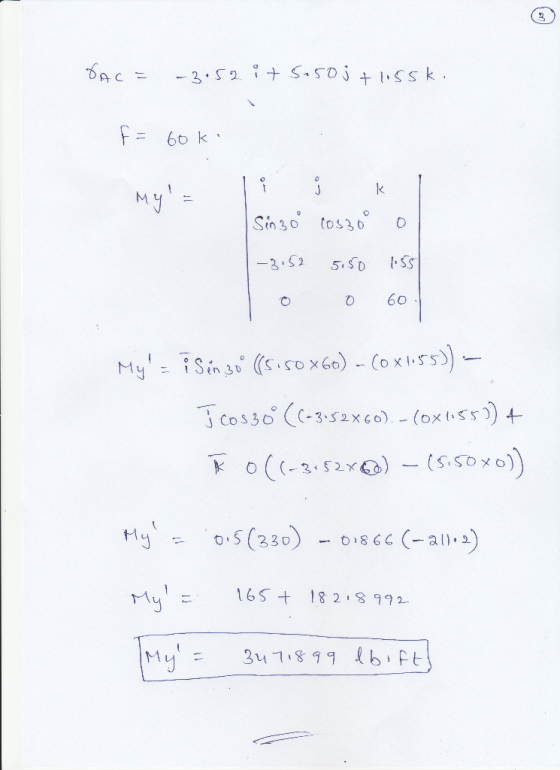

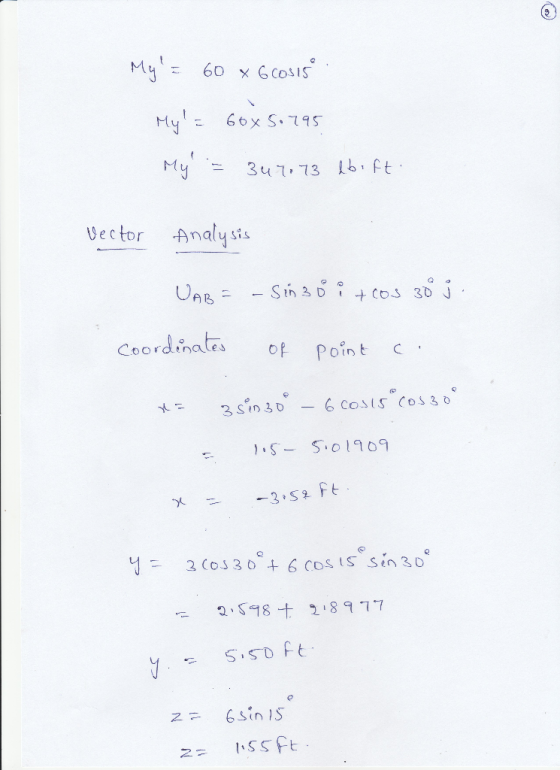

Part A The A-frame is being hoisted into an upright position by the vertical force of...
Problem 4.60 The A-frame is being holsted into an upright position by the vertical force of...
Problem 4.60 The A-frame is being holsted into an upright position by the vertical force of 60 lb. (Figure 1) Part A Determine the moment of this force about they axis when the frame is in the position shown Express your answer to three significant figures and include the appropriate units. M. 216.5 Ib Figure < 1 of 1 Submit Previous Answers Request Answer * Incorrect; Try Again < Return to Assignment Provide Feedback 6 The A-frame is being hoisted...
Problem 4.60 The A-frame is being hoisted into an upright position by the vertical force of...
Problem 4.60 The A-frame is being hoisted into an upright position by the vertical force of 78 lb (Figure 1) - Part A Determine the moment of this force about the yaxis when the frame is in the position shown Express your answer to three significant figures and include the appropriate units. THA RO? M, Value Units Submit Request Answ Figure 10t1 Provide Feedback
The A-frame is being hoisted into an upright position by the vertical force of F-80 lb....
The A-frame is being hoisted into an upright position by the vertical force of F-80 lb. Determine the moment of this force about the y axis passing through points A and B when the frame is in the position shown. 52 6 ft 309 6 ft
The A-frame is being hoisted into an upright position by the vertical force of F =...
The A-frame is being hoisted into an upright position by the vertical force of F = 799 lb. Determine the moment of this force about the y axis when the frame is in the position shown. Used= 3 ft, α = 270, and β = 170. d ft .r d ft My=
Part A The vertical force F acts downward at A on the two-membered frame (Figure 1)...
Part A The vertical force F acts downward at A on the two-membered frame (Figure 1) Determine the magnitude of the component of F directed along the axis of AB. Set F 300 N Express your answer to two significant figures and include the appropriate units. ABalue Units Figure 1of 1> Submit Request Answer Part B Determine the magnitude of the component of F directed along the axis of AC. Express your answer to two significant figures and include the...
Rod AB is fixed to a smooth collar D, which slides freely along the vertical guide....
Rod AB is fixed to a smooth collar D, which slides freely along the vertical guide. (Figure 1) Figure (1 of 1 > 60 lb -15 lb/ft B D 130° С 3 ft - 1.5 ft- Part A Determine the internal normal force at point C, which is located just to the left of the 60-lb concentrated load. Express your answer to three significant figures and include the appropriate units. НА ? No = Value Units Submit Request Answer Part...
Part A Determine the magnitude of the component of force F = 98 lb acting parallel...
Part A Determine the magnitude of the component of force F = 98 lb acting parallel to diagonal AB of the crate (Figure 1) Express your answer to two significant figures and include the appropriate units. ? (FAB), 1160 lib Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine the magnitude of the component of force F = 98 lb acting perpendicular to diagonal AB of the crate Express your answer to two significant...
Part A F1 30 lb and F2 40 lb. The resultant force is directed along the...
Part A F1 30 lb and F2 40 lb. The resultant force is directed along the positive axis and has a magnitude of FR 60 lb Figure 1) 9. Determine the angle θ Express your answer using three significant figures Submit Request Answer Part B Determine the angle ф Express your answer using three significant figures. Figure 1 of 1 Submit ue Provide Feedback F2
Determine the horizontal and vertical components of force that pins A and B exert on the...
Determine the horizontal and vertical components of force that pins
A and B exert on the two-member frame. Set F = 545 N
Determine the horizontal and veral components of force that is A and Besort on the two member frame Set 545 N. 1) Part A Determine the horizontal and vertical components of force that in een on the frame Express your answers using three significant figures separated by a cona Assume that the positive respectively Submit Figure 1...
10 of 10> Problem 4.26 Part A If the 1700-lb boom AB, the 205-lb cage BCD,...
10 of 10> Problem 4.26 Part A If the 1700-lb boom AB, the 205-lb cage BCD, and the 163-lb man have centers of gravity located at points Gi, G2 and G3, respectively, determine the resultant moment produced by all the weights about point A. (Figure 1) Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is counterclockwise and negative value if the moment is clockwise Figure 1 of 1> MAValueUnits 2.5...
Problem 4.60 The A-frame is being holsted into an upright position by the vertical force of 60 lb. (Figure 1) Part A Determine the moment of this force about they axis when the frame is in the position shown Express your answer to three significant figures and include the appropriate units. M. 216.5 Ib Figure < 1 of 1 Submit Previous Answers Request Answer * Incorrect; Try Again < Return to Assignment Provide Feedback 6 The A-frame is being hoisted...
Problem 4.60 The A-frame is being hoisted into an upright position by the vertical force of 78 lb (Figure 1) - Part A Determine the moment of this force about the yaxis when the frame is in the position shown Express your answer to three significant figures and include the appropriate units. THA RO? M, Value Units Submit Request Answ Figure 10t1 Provide Feedback
The A-frame is being hoisted into an upright position by the vertical force of F-80 lb. Determine the moment of this force about the y axis passing through points A and B when the frame is in the position shown. 52 6 ft 309 6 ft
The A-frame is being hoisted into an upright position by the vertical force of F = 799 lb. Determine the moment of this force about the y axis when the frame is in the position shown. Used= 3 ft, α = 270, and β = 170. d ft .r d ft My=
Part A The vertical force F acts downward at A on the two-membered frame (Figure 1) Determine the magnitude of the component of F directed along the axis of AB. Set F 300 N Express your answer to two significant figures and include the appropriate units. ABalue Units Figure 1of 1> Submit Request Answer Part B Determine the magnitude of the component of F directed along the axis of AC. Express your answer to two significant figures and include the...
Rod AB is fixed to a smooth collar D, which slides freely along the vertical guide. (Figure 1) Figure (1 of 1 > 60 lb -15 lb/ft B D 130° С 3 ft - 1.5 ft- Part A Determine the internal normal force at point C, which is located just to the left of the 60-lb concentrated load. Express your answer to three significant figures and include the appropriate units. НА ? No = Value Units Submit Request Answer Part...
Part A Determine the magnitude of the component of force F = 98 lb acting parallel to diagonal AB of the crate (Figure 1) Express your answer to two significant figures and include the appropriate units. ? (FAB), 1160 lib Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Part B Determine the magnitude of the component of force F = 98 lb acting perpendicular to diagonal AB of the crate Express your answer to two significant...
Part A F1 30 lb and F2 40 lb. The resultant force is directed along the positive axis and has a magnitude of FR 60 lb Figure 1) 9. Determine the angle θ Express your answer using three significant figures Submit Request Answer Part B Determine the angle ф Express your answer using three significant figures. Figure 1 of 1 Submit ue Provide Feedback F2
Determine the horizontal and vertical components of force that pins
A and B exert on the two-member frame. Set F = 545 N
Determine the horizontal and veral components of force that is A and Besort on the two member frame Set 545 N. 1) Part A Determine the horizontal and vertical components of force that in een on the frame Express your answers using three significant figures separated by a cona Assume that the positive respectively Submit Figure 1...
10 of 10> Problem 4.26 Part A If the 1700-lb boom AB, the 205-lb cage BCD, and the 163-lb man have centers of gravity located at points Gi, G2 and G3, respectively, determine the resultant moment produced by all the weights about point A. (Figure 1) Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is counterclockwise and negative value if the moment is clockwise Figure 1 of 1> MAValueUnits 2.5...
