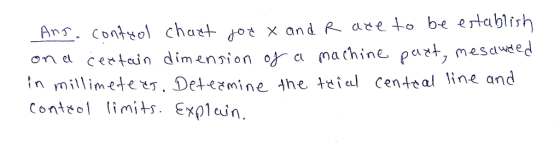

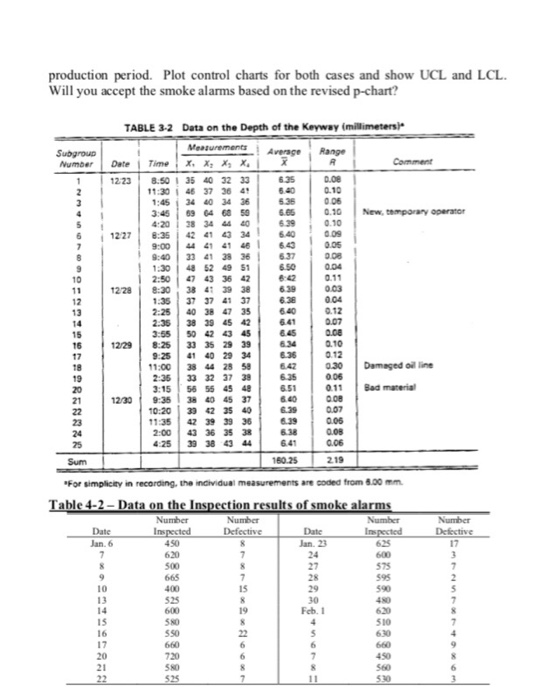

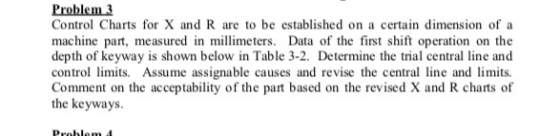

Problem 3 Control Charts for X and R are to be established on a certain dimension...
Problem no.3 The thickness of a metal part is the quality characteristic that statistical process control...
Problem no.3 The thickness of a metal part is the quality characteristic that statistical process control is being applied to. Measurements are taken from 25 subgroups of subgroup size 5. The sum of the X-bar values 1.5735. The sum of the R-values .0231. Xbar/R Chart for x 0636 06396 Subgroup 10 15 20 25 001 0011 a.) Calculate the trial control limits and centerlines for the X-bar and R charts above b.) Calculate the revised control limits and centerlines for...
Problem 6 [Pencil version] X-bar and R charts with n= 4 were established with the centerlines...
Problem 6 [Pencil version] X-bar and R charts with n= 4 were established with the centerlines of 10 and 2, respectively. Both charts didn't show any out-of-control signals. In other words, both process mean and variability were in statistical control. You just noticed an hour ago, however, that the process mean shifted to 14 and the process mean ended up being in out of control, while the process variability remains the same. In summary, Mo = 10, Mshifted = 14,...
04)- 244+3-15 marás) Control charts for X and R are mairnt S marks) Contr ol charts for X and R are maintained for quality characteristic. The and R are computed for each sample. After 30 samples,...
04)- 244+3-15 marás) Control charts for X and R are mairnt S marks) Contr ol charts for X and R are maintained for quality characteristic. The and R are computed for each sample. After 30 samples, the following a computed: 6690 R-1030 a- What are the tria Ilimits for the R chart ? tb) Assuming that the R chart is in control, what are the trial limits for the X char? Estimate the process mean and standard devintion. (d- Ifthe...
Problem 3 20 points A bank has compiled the data in the following table showing the...
Problem 3 20 points A bank has compiled the data in the following table showing the count of nonconformities for 80.000 accounting transactions per day during December and January. Determine the trial c line and control limits and the revised central line and control limits, assuming that out-of. control points have assignable causes. (use c chart) Subgroup 13 Subgroup 14 Subgroup 15 Subgroup 16 Subgroup 17 Subgroup 18 19 Subgroup Subgroup 2 Subgroup 3 19 20 Sub 18 2. Subgroup...
Solve Part 2 First Name Last Name Please put your name on this test and every...
Solve Part 2
First Name Last Name Please put your name on this test and every page that you submit. Please answer the questions and solve the problem in the proper order [1, 2, 3...] 20 points each. tely precisely, and completely as possible 1. Explain Deming's Funnel Experiment. What did he use it for? 2. Differentiate between Pareto Chart and Cause-and-Effect Diagram. Which one should be used first? 3. Explain "The Central Limit Theorem." Why is it so important...
1. Design X-bar and R charts a control chart with "standards given" as an aimed-at mean...
1. Design X-bar and R charts a control chart with "standards given" as an aimed-at mean of Xo 4.0, Sigma 0033, and Subgroup size 5. It is not necessary to sketch the control-chart since we have no points to put on it. Just specify, CL, UCL and LCL. That is the design. 2. Then find the probability of in-control nonconformance given, USL 4.00995 and LSL = 3.99005 3. Also, by theory, what is the Probability of an out-of-control point when...
part b Problem 4 (20 points) a) Samples of four bolts are taken every hour, and their and recorded. This data is Determine or the associated ž and R charts if only these five samples strength is m...
part b
Problem 4 (20 points) a) Samples of four bolts are taken every hour, and their and recorded. This data is Determine or the associated ž and R charts if only these five samples strength is measure in newsons s shown below. Determine the upper and lower coetrol limits were used Time 8:00 10:00 11:00 12:00 b) Every hour 80 transistors are taken at random from a production run. If the number of defects found in each sample over...
Statics help needed urgently ! part 1 part 2 Design X-bar and R charts a control...
Statics help needed urgently !
part 1
part 2
Design X-bar and R charts a control chart with "standards given" as an aimed-at mean of Xo 4.0, Sigma.0033, and Subgroup size 5. It is not necessary to sketch the control-chart since we have no points to put on it. Just specify, CL, UCL and LCL. That is the design. Then find the probability of in-control nonconformance given, USL 4.00995 and LSL 3.99005 Also, by theory, what is the Probability of...
Problem no.3 The thickness of a metal part is the quality characteristic that statistical process control is being applied to. Measurements are taken from 25 subgroups of subgroup size 5. The sum of the X-bar values 1.5735. The sum of the R-values .0231. Xbar/R Chart for x 0636 06396 Subgroup 10 15 20 25 001 0011 a.) Calculate the trial control limits and centerlines for the X-bar and R charts above b.) Calculate the revised control limits and centerlines for...
Problem 6 [Pencil version] X-bar and R charts with n= 4 were established with the centerlines of 10 and 2, respectively. Both charts didn't show any out-of-control signals. In other words, both process mean and variability were in statistical control. You just noticed an hour ago, however, that the process mean shifted to 14 and the process mean ended up being in out of control, while the process variability remains the same. In summary, Mo = 10, Mshifted = 14,...
04)- 244+3-15 marás) Control charts for X and R are mairnt S marks) Contr ol charts for X and R are maintained for quality characteristic. The and R are computed for each sample. After 30 samples, the following a computed: 6690 R-1030 a- What are the tria Ilimits for the R chart ? tb) Assuming that the R chart is in control, what are the trial limits for the X char? Estimate the process mean and standard devintion. (d- Ifthe...
Problem 3 20 points A bank has compiled the data in the following table showing the count of nonconformities for 80.000 accounting transactions per day during December and January. Determine the trial c line and control limits and the revised central line and control limits, assuming that out-of. control points have assignable causes. (use c chart) Subgroup 13 Subgroup 14 Subgroup 15 Subgroup 16 Subgroup 17 Subgroup 18 19 Subgroup Subgroup 2 Subgroup 3 19 20 Sub 18 2. Subgroup...
Solve Part 2
First Name Last Name Please put your name on this test and every page that you submit. Please answer the questions and solve the problem in the proper order [1, 2, 3...] 20 points each. tely precisely, and completely as possible 1. Explain Deming's Funnel Experiment. What did he use it for? 2. Differentiate between Pareto Chart and Cause-and-Effect Diagram. Which one should be used first? 3. Explain "The Central Limit Theorem." Why is it so important...
1. Design X-bar and R charts a control chart with "standards given" as an aimed-at mean of Xo 4.0, Sigma 0033, and Subgroup size 5. It is not necessary to sketch the control-chart since we have no points to put on it. Just specify, CL, UCL and LCL. That is the design. 2. Then find the probability of in-control nonconformance given, USL 4.00995 and LSL = 3.99005 3. Also, by theory, what is the Probability of an out-of-control point when...
part b
Problem 4 (20 points) a) Samples of four bolts are taken every hour, and their and recorded. This data is Determine or the associated ž and R charts if only these five samples strength is measure in newsons s shown below. Determine the upper and lower coetrol limits were used Time 8:00 10:00 11:00 12:00 b) Every hour 80 transistors are taken at random from a production run. If the number of defects found in each sample over...
Statics help needed urgently !
part 1
part 2
Design X-bar and R charts a control chart with "standards given" as an aimed-at mean of Xo 4.0, Sigma.0033, and Subgroup size 5. It is not necessary to sketch the control-chart since we have no points to put on it. Just specify, CL, UCL and LCL. That is the design. Then find the probability of in-control nonconformance given, USL 4.00995 and LSL 3.99005 Also, by theory, what is the Probability of...
