Question

As part of designing a robot, you have been asked to perform a number of programming tasks in MATLAB. In Part A, your programming tasks relate to the analysis of the electrical properties of the robot. When the robot is turned on, the voltage and current being used by the robot are recorded in 5 ms time intervals. This data is stored in a matrix where the first column contains time (t), the second column contains voltage (v) and the third column contains current (i). Q1 Description Create a function that accepts the data matrix as an input. The function should output an electrical power column vector and display a plot of electrical power vs. time (Note: ) .

Answer 1

%save the function as calculate_electric_power.m

function p=calculate_electric_power(matrix)
t=matrix(:,1);
%power =v*i;
p=matrix(:,2).*matrix(:,3);
plot(t,p)
xlabel('time');ylabel('Power');
end

%now execute below code from new file.m

t=0:5:100;
v=0:1:20;
i=0:2:40;
matrix=[t;v;i]';
calculate_electric_power(matrix)

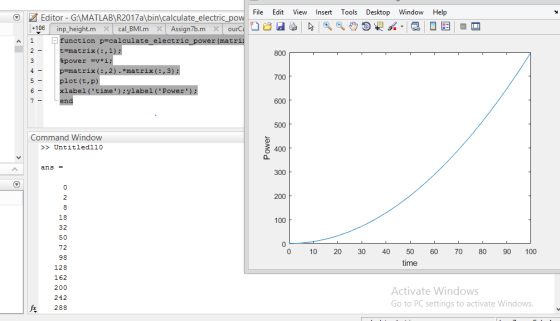

Edit View k Insert a Tools Desktop Window DVA Help DE Editor - G:\MATLAB\R2017a\bin\calculate_electric pow File +106 inp_height.m x cal_BMI.m x Assign7b.m x our O 1 function p=calculate electric power (matri t=matrix (:,1); power =v*i; pematrix(:,2). *matrix(:,3); plot(t,p) xlabel('time');ylabel('Power'); end 800 - JOUWN Command Window >> Untitled110 Power ans 0 10 20 30 40 60 70 80 90 100 50 time 162 200 242 288 Activate Windows Go to PC settings to activate Windows.

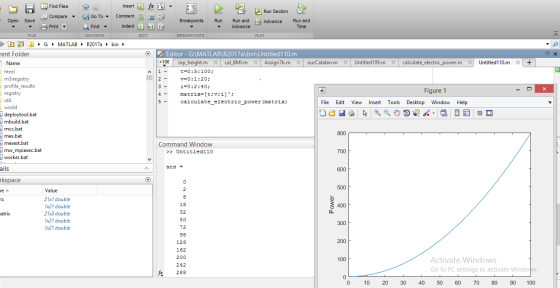

2 - Go To - Find, 1 NAVIGATE R2017a Insert Efx - 3 D Run Section 0 Comment % %%% Breakpoints Run Run and El Advance Run and Indent ) & Advance Time EDIT BREAKPOINTS RUN bin 7 Editor - G: MATLAB\R2017a\bin\Untitled 110.m +106 inp_height.m x cal_BMI.m x Assign7b. m x ourCatalan.m X Untitled109.m x calculate_electric power.m x Untitled110. m t=0:5:100; v=0:1:20; i=0:2:40; Figure 1 matrix=[t;v;i]'; calculate_electric power (matrix) File Edit View Insert Tools Desktop Window Help Ou SADE - O x Et Find Files Compare - - Open Save Print FILE ►ua G: MATLAB rent Folder Name html m3iregistry profile_results registry util win64 deploytool.bat mbuild.bat mcc.bat mex.bat mexext.bat mw_mpiexec.bat worker.bat + | ITTI - O X 800 - Command Window >> Untitled110 ails ans rkspace ne Value Power natrix 21x1 double 1x21 double 21x3 double 1x21 double 1x21 double Activate Windows Go to PC settings to activate Windo vs. 50 60 70 80 90 100 0 10 20 30 40
