.Which of the following Fourier transform spectra was collected from an organ pipe with one end...

Question

Question

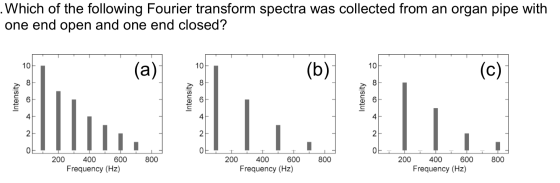

.Which of the following Fourier transform spectra was collected from an organ pipe with one end open and one end closed? (a)

science physics

Answer 1

Answer #1

Intensity of sound is maximum at resonance frequency.resonance frequency of closed organ pipe is given by. f = (2n + 1) v

Resonance frequency is odd multiple of fundamental frequency

Option b is correct

Explanation

Fundamental frequency is 100 hz

Next resonance frequency is 300hz = 3× 100hz

Next resonance frequency is 500 hz = 5 × 100hz

As we can see resonance frequency is odd multiple of fundamental frequency.so option b is correct.
