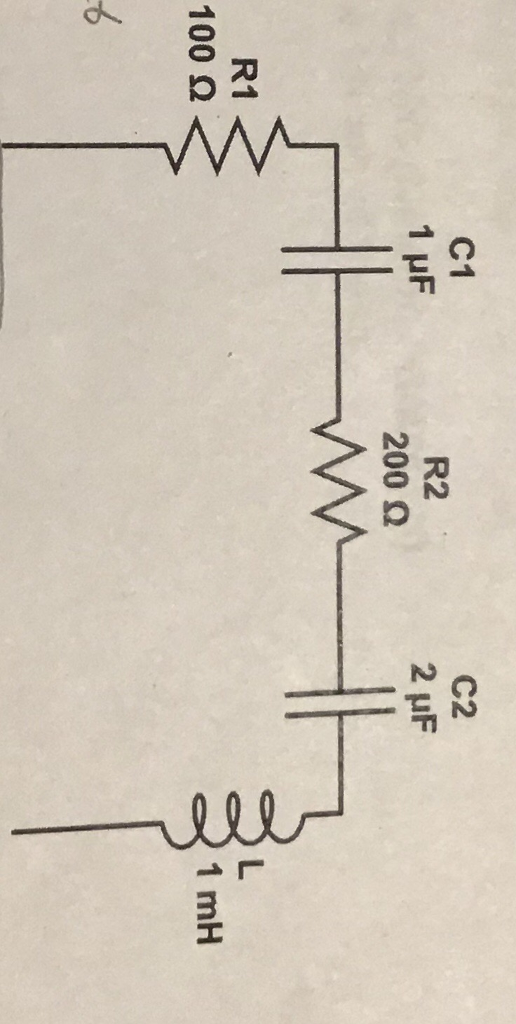

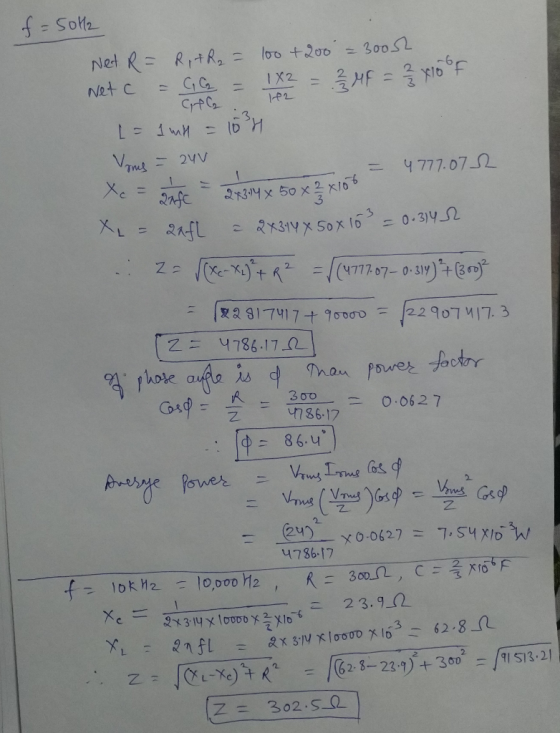

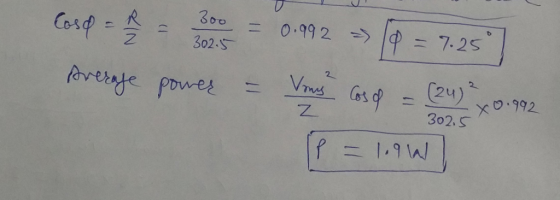

Calculate the following at two frequencies 50hz and 10kHz
voltage 24 Vrms. Z? Phase angle ? Average power?
Calculate the following at two frequencies 50hz and 10kHz voltage 24 Vrms. Z? Phase angle ?...
A three-phase generator connected in star generates a phase
voltage of Vθ = 220 Vrms and supplies a three-phase load also
connected in star. The three phases of the generator are connected
to the three loads shown Remember that the return of the current of
each charge is through the Neutral.
a) Calculate the phase, line, load and neutral currents
b) Calculate the phase, line and load voltages
c) Calculate the powers of Apparent (S), Real (P) and Reactive (Q)...
clear handwrite and step by step solution please
thank you in advance
Q2. For the single-phase voltage controller of Fig. 2, the source is 120 Vrms at 60 Hz, andthe load is a series Rしcombination with R-20 Ω and L-50 mH. The delay angle α is 90°. Determine (a) an expression for load current for the first half-period, b) the rms loadcurrent, (c) the rms SCR current, (d) the average SCR current, (e) the power delivered tothe load, and (f)...
Problem: (1) For the single phase AC circuit shown below, calculate voltage phasor across the load showing amplitude and phase angle for a (reference) source voltage of 220 V and 0 degree. Also, attach your MultiSIM simulation showing the voltage amplitude across the load. Compare simulated and calculated values. Load Bus of an Industrial Facility (equivalent of Electrical Motors and power factor correction Cap in parallel). R1 L1 Vload-? 1 3.0ohm 2 10mH 3 4.7mH 4 20ohm R2 +220V, 60...
1.) Calculate the RMS current and phase angle of an AC circuit with voltage supply of 14.5V at 50Hz, 10 ohm resistor and a 200uF capacitor joined in series. b.) Calculate the RMS current and phase angle of an AC circuit with voltage supply of 13.5V at 50Hz, 10 ohm resistor and a 50mH inductor joined in parellel. Please show all steps thank you!
1- need to tell the methods and explain then
calculate
2- for one and three-phase
1- can be a work about diodes
best regards
Electrotechnics Methods of solving linear DC circuits. Superposition method and Thevenini method. 1. Calculate the currents in the following circuit using the superposition and Thevenini method. Data: R1-200 Ω; R2-200 Ω,R3-100 Ω E1-200 V; E2-100 V; E3-200 V ind all the currents I1, 12 and 13. R1 R3 ЕЗ E1 R2 E2 Apparatus and methods for...
Exercise: Determine Direction of Power Flow in a Circuit Two ideal 50Hz three-phase voltage sources designed as machines E, and E, are connected, as shown in Fig. 1. If Ej = 40020°KV, Ez = 400230° kV and line impedance parameters of Z (where Z=Z=Z=Zc), determine the following tasks. Ocej lpg 3 Ocej lpg 4 G U?R-S U?RSA Fig.1 Two ideal three phase voltage sources connected through impedance Z Task: Case 1: The line impedance, Z=0+j10 S2 (purely inductive) a) Calculate...
4. A single phase inverter shown below is using a 1:10 step up transformer which supplies the power to 20W load lamps. If the secondary voltage has rms value of 120Vac and the transformer total winding resistance is 0.8W. Determine the rms input voltage [15 Marks) i. Determine the period and frequency of oscillation for an inverter if the components have the following values: R1=2K, R2=20K, C1=0.04m F & C2=0.05mF [15 Marks) ii. Determine the value of capacitors to be...
4) Calculate load voltage, phase, load current, phase and load power for the tables below. (fill the tables for figure4 circuit) For table 1, use calculated maximum power CL and for table2 use calculated maximum power RL VoadPhaseVload lload (mA) RL PL (mW) 100Ω 3900 560Ω 8200 1000Ω 12000 1800Ω 3300Ω 1 0000Ω Table 1: Load Power with respect to RL (use maximum power CL for this table) LoadPower PL (mW) CL Vload (V)PhaseVload() Iload (mA) Phaselload() 1 nF 3.3...
(a) Two three-phase, 400kV (rms), 50Hz, AC networks are connected together via a current-source HVDC link made up of a three-phase, 12-pulse full-wave thyristor rectifier and a three-phase, 12-pulse full-wave thyristor inverter. (i) Draw the circuit diagram for this system and explain, for the rectifier stage, how the firing delay angle may be used to control the average DC voltage. (ii) Explain the main advantages of HVDC transmission compared to AC transmission. (b) An H-Bridge converter is to be used...
IN OUT LM317 R1 Ci ADJ 240V 121 0.1u LOAD Vac 50Hz R2 Bridge Rectifier Let Ci = 2200uF, R LOAD = 100, R1-120, R2-820 Calculate the output voltage of the power supply (acrosS RLOAD), in Volts. [Do not enter units in your answer.] Answer: By considering this circuitincluding a zener diode, and by determining the minimum and maximum currents associated with the zener, calculate a maximum value for R. Assuming the units are in ohms, provide only the numerical...
