Homework Answers
Add Answer to:

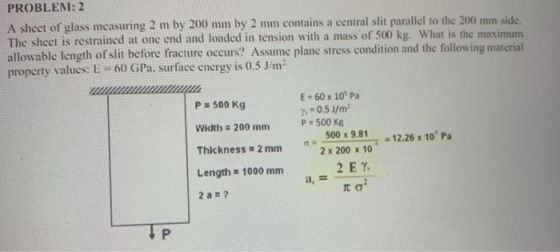

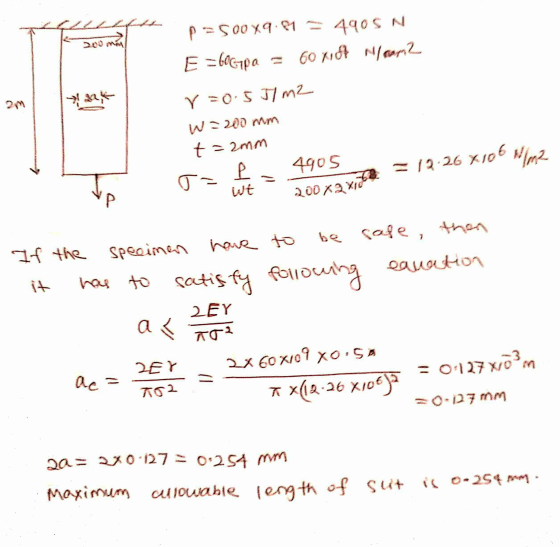

PROBLEM: 2 A sheet of glass measuring 2 m by 200 mm by 2 mm contains...
i only need help with Q3 CEE 216 Civil Engineering Materials Steel 1. A 32-mm rebar...
i only need help with Q3
CEE 216 Civil Engineering Materials Steel 1. A 32-mm rebar with a gauge length of 200 mm was subjected to tension to fracture according to ASTM E-8 method. The load and deformation data collected are shown in Table 1. Create a spreadsheet to complete the following. Table 1. Load and displacement data for a 32-mm rebar sample subjected to an increasing tensile load a. Create a plot of stress-strain. Label the axes and show...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The an...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
3. Power transmission is an important engineering application and relies on the integrity of the shaft designs. Assume a solid, circular steel shaft with a uniform diameter d 50 mm and a total le...
3. Power transmission is an important engineering application and relies on the integrity of the shaft designs. Assume a solid, circular steel shaft with a uniform diameter d 50 mm and a total length I3 m. At its midpoint, a belt passes over a pulley and delivers 50 kW power to the shaft. This power is used to drive two machines at either end of the shaft. Machine 1 consumes P1 20 kW and machine 2 uses P230 KW. The...
Question 35 300 mm 18 in 4.5 ft 60 mm 40 mm Fig. P2.33 2.34 For...
Question 35
300 mm 18 in 4.5 ft 60 mm 40 mm Fig. P2.33 2.34 For the composite block shown in Prob. 2.33, determine (a) the value of h if the portion of the load carried by the aluminum plates is half the portion of the load carried by the brass core, (b) the total load if the stress in the brass is 80 MPa Fig. P2.35 2.35 The 4.5-ft concrete post is reinforced with six steel bars, each with...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requi...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, Ơalkw-168 MPa and allowable shear stress. llo 110 MPa, choose the lightest wide flange beam from Appendix. Given data E-225 GPa, p 7850 kg/m3. Assume A is a pin and B a roller support Rasuk yang dsokong mudah Disebabkan sebuah keperluan tertentu,...
Problem 3 The length of the 2 mm diameter steel wire CD has been adjusted so...
Problem 3 The length of the 2 mm diameter steel wire CD has been adjusted so that with no load applied, a gap of 1.5 mm exists between the end B of the rigid beam ACB and a contact point E. Knowing that E= 200 GPa, determine the distance x where a 20 kg block should be placed on the beam in order to cause contact between B and E. 250 mm 20 kg B 1.5 mm 80 mm
A gold wire is 4.5 m long and 0.45 mm in diameter. What is its resistance?...
A gold wire is 4.5 m long and 0.45 mm in diameter. What is its
resistance?
(The sheet from my professor.)
TABLE 21-1 Resistivities Substance Insulators Quartz (fused) Rubber Glass Semiconductors Silicon* Germanium* Conductors Lead Iron Tungsten Aluminum Gold Copper Copper, annealed Silver Resistivity, p (2 m) 7.5 × 1017 1 to 100 x 1013 1 to 10,000 x 109 0.10 to 60 0.001 to 0.5 22 × 10-8 9.71 × 10-8 5.6 x 10-8 2.65 × 10-8 2.20 x...
H based carbon fiber containing a known amount of single walled 5. Consider a pitc Sartbon nanotu...
h based carbon fiber containing a known amount of single walled 5. Consider a pitc Sartbon nanotubes (SWNT), By adding small amounts of single walled carbon nanotubes SWNT) to the pitch prior to fiber pulling, the elastic fibers can be i the following questions a. (10 points) Estimate the elastic modulus for both the 1% and 5% SWNT loaded carbon fibers. modulus of the pitch based carbon ncreased. Use the figure below and the other information (given) to answer 700...
Problem 2 10 pts A cylindrical pressure vessel with wall thickness t-5 mm and inside radius r 150...
solid mechanics plz show yhe correct steps to the answers plz
Problem 2 10 pts A cylindrical pressure vessel with wall thickness t-5 mm and inside radius r 150 mm is design to hold high pressure. The vessel design requires a safety factor against yielding Xo -2, and leak-before-break with a safety factor X-5 on the critical crack length; that is, the critical crack length ce must be at least Xt. Calculate the maximum pressure, p, if the vessel is...
if the beam is needed to be redesign as cantilevered at A.Proposed a suitable paramater A simply supported beam ca...
if the beam is needed to be redesign as cantilevered at
A.Proposed a suitable paramater
A simply supported beam carries multiple point load is shown in Figure 2. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, ơallow 168 MPa and allowable shear stress, allo.-110 MPa. Rasuk yang disokong mudah membawa beban seragam. 30 kN/m diturjukkan dalam Gambarajah 3. Disebabkan sebuah keperluan terientu, pesongan maksimum harus tidak...
i only need help with Q3
CEE 216 Civil Engineering Materials Steel 1. A 32-mm rebar with a gauge length of 200 mm was subjected to tension to fracture according to ASTM E-8 method. The load and deformation data collected are shown in Table 1. Create a spreadsheet to complete the following. Table 1. Load and displacement data for a 32-mm rebar sample subjected to an increasing tensile load a. Create a plot of stress-strain. Label the axes and show...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
3. Power transmission is an important engineering application and relies on the integrity of the shaft designs. Assume a solid, circular steel shaft with a uniform diameter d 50 mm and a total length I3 m. At its midpoint, a belt passes over a pulley and delivers 50 kW power to the shaft. This power is used to drive two machines at either end of the shaft. Machine 1 consumes P1 20 kW and machine 2 uses P230 KW. The...
Question 35
300 mm 18 in 4.5 ft 60 mm 40 mm Fig. P2.33 2.34 For the composite block shown in Prob. 2.33, determine (a) the value of h if the portion of the load carried by the aluminum plates is half the portion of the load carried by the brass core, (b) the total load if the stress in the brass is 80 MPa Fig. P2.35 2.35 The 4.5-ft concrete post is reinforced with six steel bars, each with...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, Ơalkw-168 MPa and allowable shear stress. llo 110 MPa, choose the lightest wide flange beam from Appendix. Given data E-225 GPa, p 7850 kg/m3. Assume A is a pin and B a roller support Rasuk yang dsokong mudah Disebabkan sebuah keperluan tertentu,...
Problem 3 The length of the 2 mm diameter steel wire CD has been adjusted so that with no load applied, a gap of 1.5 mm exists between the end B of the rigid beam ACB and a contact point E. Knowing that E= 200 GPa, determine the distance x where a 20 kg block should be placed on the beam in order to cause contact between B and E. 250 mm 20 kg B 1.5 mm 80 mm
A gold wire is 4.5 m long and 0.45 mm in diameter. What is its
resistance?
(The sheet from my professor.)
TABLE 21-1 Resistivities Substance Insulators Quartz (fused) Rubber Glass Semiconductors Silicon* Germanium* Conductors Lead Iron Tungsten Aluminum Gold Copper Copper, annealed Silver Resistivity, p (2 m) 7.5 × 1017 1 to 100 x 1013 1 to 10,000 x 109 0.10 to 60 0.001 to 0.5 22 × 10-8 9.71 × 10-8 5.6 x 10-8 2.65 × 10-8 2.20 x...
h based carbon fiber containing a known amount of single walled 5. Consider a pitc Sartbon nanotubes (SWNT), By adding small amounts of single walled carbon nanotubes SWNT) to the pitch prior to fiber pulling, the elastic fibers can be i the following questions a. (10 points) Estimate the elastic modulus for both the 1% and 5% SWNT loaded carbon fibers. modulus of the pitch based carbon ncreased. Use the figure below and the other information (given) to answer 700...
solid mechanics plz show yhe correct steps to the answers plz
Problem 2 10 pts A cylindrical pressure vessel with wall thickness t-5 mm and inside radius r 150 mm is design to hold high pressure. The vessel design requires a safety factor against yielding Xo -2, and leak-before-break with a safety factor X-5 on the critical crack length; that is, the critical crack length ce must be at least Xt. Calculate the maximum pressure, p, if the vessel is...
if the beam is needed to be redesign as cantilevered at
A.Proposed a suitable paramater
A simply supported beam carries multiple point load is shown in Figure 2. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, ơallow 168 MPa and allowable shear stress, allo.-110 MPa. Rasuk yang disokong mudah membawa beban seragam. 30 kN/m diturjukkan dalam Gambarajah 3. Disebabkan sebuah keperluan terientu, pesongan maksimum harus tidak...
