Question

How to find the mean and standard deviations from the below control chart and calculate defect rate

Subgroup	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24
1	3.757	3.753	3.744	3.755	3.757	3.741	3.746	3.746	3.760	3.741	3.749	3.746	3.743	3.755	3.745	3.748	3.757	3.740	3.756	3.742	3.752	3.746	3.745	3.752
2	3.749	3.739	3.745	3.753	3.760	3.749	3.743	3.753	3.755	3.745	3.751	3.749	3.751	3.744	3.751	3.746	3.747	3.739	3.757	3.753	3.751	3.753	3.762	3.755
3	3.751	3.747	3.740	3.753	3.751	3.745	3.753	3.747	3.757	3.751	3.757	3.744	3.745	3.753	3.747	3.755	3.756	3.752	3.749	3.754	3.749	3.741	3.753	3.753
4	3.755	3.751	3.741	3.749	3.754	3.742	3.751	3.755	3.757	3.741	3.754	3.757	3.739	3.755	3.751	3.755	3.759	3.744	3.755	3.743	3.753	3.746	3.750	3.749
5	3.749	3.751	3.742	3.739	3.750	3.743	3.747	3.758	3.749	3.740	3.755	3.737	3.750	3.754	3.744	3.749	3.751	3.745	3.744	3.741	3.755	3.743	3.744	3.754
6	3.759	3.744	3.743	3.747	3.753	3.742	3.751	3.756	3.741	3.741	3.753	3.749	3.747	3.766	3.745	3.749	3.756	3.757	3.741	3.748	3.750	3.744	3.750	3.756
n	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6
A2	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483	0.483
D3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
D4	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004	2.004
X-bar	3.753	3.748	3.743	3.749	3.754	3.744	3.749	3.753	3.753	3.743	3.753	3.747	3.746	3.755	3.747	3.750	3.754	3.746	3.750	3.747	3.752	3.746	3.751	3.753
X-bar-bar	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749	3.749
UCL	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755
LCL	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743	3.743
R	0.010	0.014	0.005	0.016	0.010	0.008	0.010	0.012	0.019	0.011	0.008	0.020	0.012	0.022	0.007	0.009	0.012	0.018	0.016	0.013	0.006	0.012	0.018	0.007
R-bar	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012	0.012
UCL	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.025
LCL	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000

Mean
Standard Deviation
Target	3.75
Tolerance	0.005		Lower	Upper	Total
		Spec
		Delta
		Z
		P

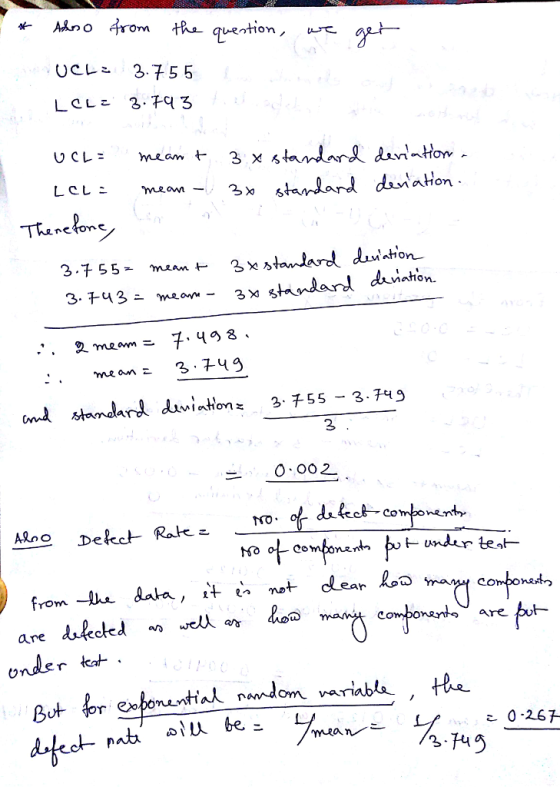

Answer 1

rOrm Ucua 3.7 55 ation stindard daviaton. 3.zug me anこ O 002 are dukcted well vnder mean 3 F43
