Homework Answers

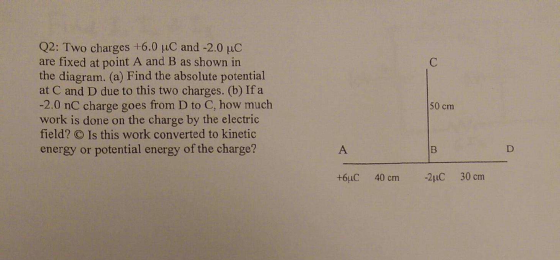

a) electric potential at point C = kq1/r1 + kq2/r2
= 9*10^9 *10^-6 * (6 / sqrt(0.5^2 + 0.4^2) - 2 /0.5 )
= 48333.83 V
electric potential at D = 9*10^9 *10^-6 * (6 / 0.7 - 2 /0.3 ) = 17142..85 V
b) work done in moving a charge from D to C
= q (Vc - Vd)
= 2*10^-9*(48333.83 - 17142.85)
= 6.24*10^-5 J
c) the work is converted to potential energy of the charge
