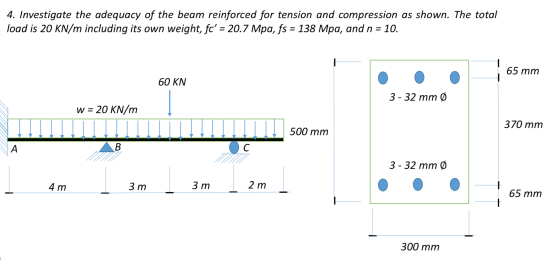

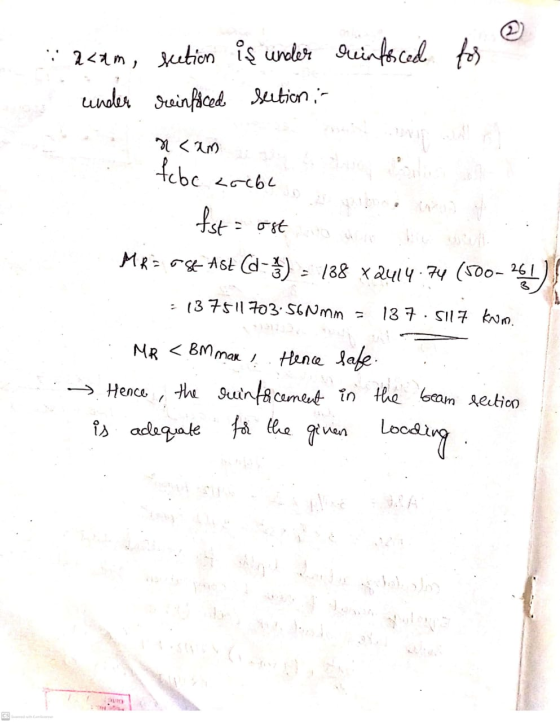

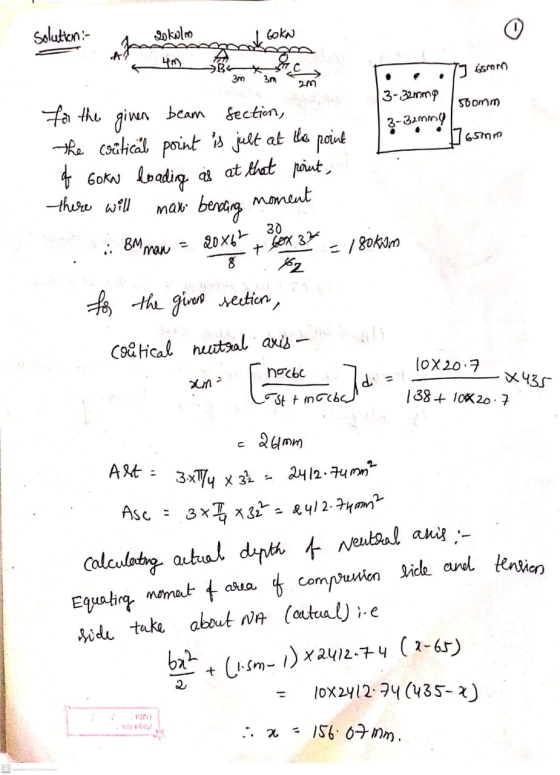

4. Investigate the adequacy of the beam reinforced for tension and compression as shown. The total...
Investigate the adequacy of the beam shown if it has a simple span of 6 m....
Investigate the adequacy of the beam shown if it has a simple span of 6 m. It carries a live load of 8 KN/m, fc' = 20 Mpa, fs = 138 Mpa, and n =10. 60 mm 60 mm 250 mm 6 - 25 mm Ø 380 mm 250 mm 60 mm 125 mm 250 mm 125 mm
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead l...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
A reinforced concrete beam with dimensions (300 mm * 800 mm) subjected to a service dead...
A reinforced concrete beam with dimensions (300 mm * 800 mm) subjected to a service dead load moment (MD= 500 kN.m) and a service live load moment (ML = 400 kN.m). Design the section as a double reinforced section (the dimensions can't be increased). Place the compression reinforcement at 65 mm from the compression face. Compressive strength of concrete; fc = 28 MPa, yielding stress of reinforcement; fy= 420 MPa. Assume 30 mm to be used in the tension (two...
A reinforced concrete cantilevered beam with a span of 5 m extends from the wall, as shown in the...
A reinforced concrete cantilevered beam with a span of 5 m extends from the wall, as shown in the figure below. The beam has a rectangular cross-section and supports a uniform dead load (DL) of 15 kN/m (excluding the self-weight) and a uniform live load (LL) of 25 kN/m. The beam width is restricted to 400 mm. Use 10M stirrups and 25M bars for tension steel. The maximum aggregate size is 20 mm. 1ie 5.5. beam is located in the...
The reinforced concrete beam shown in Figure-2 is to be subjected to the following uniformly distributed...
The reinforced concrete beam shown in Figure-2 is to be subjected to the following uniformly distributed loads over the entire length: DL = 14 kn/m (including self-weight) and LL = 20kN/m, fc = 32 MPa. For architectural reasons the beam width is set at 500 mm. Determine the effective depth required if ku = 0.25 for the section of maximum positive bending moment. Then design the reinforcement required. zin Figure-2
A reinforced concrete beam with dimensions (300 mm * 800 mm) subjected to a service dead...
A reinforced concrete beam with dimensions (300 mm * 800 mm) subjected to a service dead load moment (MD=500 kN.m) and a service live load moment (ML = 400 kN.m). Design the section as a double reinforced section (the dimensions can't be increased). Place the compression reinforcement at 65 mm from the compression face. Compressive strength of concrete; fe 28 MPa, yielding stress of reinforcement; fy= 420 MPa. Assume 30 mm to be used in the tension (two layers), 26...
7.26 Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam...
7.26
Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam at rectangular cross section, 75 mm x 150 mm. Determine the magnitude and location of the peak bending ress. Also, find the magnitude of the bending stress at a point 25 mm below the upper surface at the section midway betwcen supports....
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
A plain concrete footing is to be designed for a 400 mm reinforced concrete wall that...
A plain concrete footing is to be designed for a 400 mm reinforced concrete wall that supports a dead load of 187 KN/m including the wall weight and a live load of 79 KN/m. The base of the footing is to be 1.4 m below the final grade. The allowable bearing capacity is 189 Kpa, weight of soil is 15.82 KN/m3, fc’ is 28 Mpa, and concrete to be 23.5 KN/m3. Determine the: width of the plain concrete footing (c)...
Compute the safe uniform load that the channel section shown could carry. Neglect the weight of...
Compute the safe uniform load that the channel section shown could carry. Neglect the weight of the beam. The beam has a simple span of 6 m. The two top bars are 16 mm Ø, the four bottom bars are 20 mm, fc = 8MPa, fs = 124 MPa, and n = 10. 450 mm 60 mm 300 mm 50 mm 60 mm 100 mm 250 mm 100 mm
Investigate the adequacy of the beam shown if it has a simple span of 6 m. It carries a live load of 8 KN/m, fc' = 20 Mpa, fs = 138 Mpa, and n =10. 60 mm 60 mm 250 mm 6 - 25 mm Ø 380 mm 250 mm 60 mm 125 mm 250 mm 125 mm
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
A reinforced concrete beam with dimensions (300 mm * 800 mm) subjected to a service dead load moment (MD= 500 kN.m) and a service live load moment (ML = 400 kN.m). Design the section as a double reinforced section (the dimensions can't be increased). Place the compression reinforcement at 65 mm from the compression face. Compressive strength of concrete; fc = 28 MPa, yielding stress of reinforcement; fy= 420 MPa. Assume 30 mm to be used in the tension (two...
A reinforced concrete cantilevered beam with a span of 5 m extends from the wall, as shown in the figure below. The beam has a rectangular cross-section and supports a uniform dead load (DL) of 15 kN/m (excluding the self-weight) and a uniform live load (LL) of 25 kN/m. The beam width is restricted to 400 mm. Use 10M stirrups and 25M bars for tension steel. The maximum aggregate size is 20 mm. 1ie 5.5. beam is located in the...
The reinforced concrete beam shown in Figure-2 is to be subjected to the following uniformly distributed loads over the entire length: DL = 14 kn/m (including self-weight) and LL = 20kN/m, fc = 32 MPa. For architectural reasons the beam width is set at 500 mm. Determine the effective depth required if ku = 0.25 for the section of maximum positive bending moment. Then design the reinforcement required. zin Figure-2
A reinforced concrete beam with dimensions (300 mm * 800 mm) subjected to a service dead load moment (MD=500 kN.m) and a service live load moment (ML = 400 kN.m). Design the section as a double reinforced section (the dimensions can't be increased). Place the compression reinforcement at 65 mm from the compression face. Compressive strength of concrete; fe 28 MPa, yielding stress of reinforcement; fy= 420 MPa. Assume 30 mm to be used in the tension (two layers), 26...
7.26
Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam at rectangular cross section, 75 mm x 150 mm. Determine the magnitude and location of the peak bending ress. Also, find the magnitude of the bending stress at a point 25 mm below the upper surface at the section midway betwcen supports....
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
Compute the safe uniform load that the channel section shown could carry. Neglect the weight of the beam. The beam has a simple span of 6 m. The two top bars are 16 mm Ø, the four bottom bars are 20 mm, fc = 8MPa, fs = 124 MPa, and n = 10. 450 mm 60 mm 300 mm 50 mm 60 mm 100 mm 250 mm 100 mm
