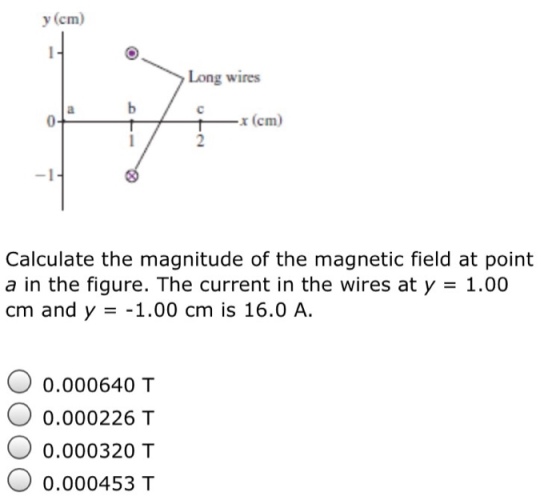

Calculate the magnitude of the magnetic field at point a in the figure. The current in...

Question

Question

science physics

Answer 1

Answer #1

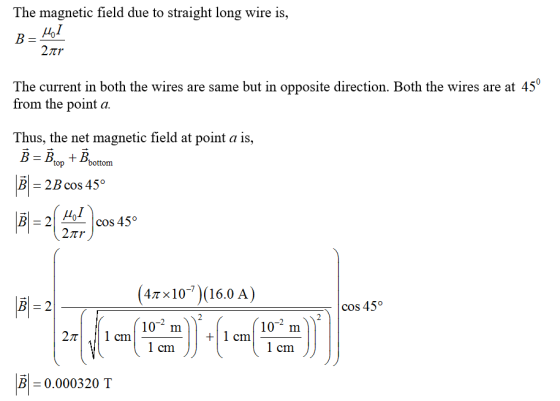

The magnetic field due to straight long wire is, The current in both the wires are same but in opposite direction. Both the w

Answer 2
