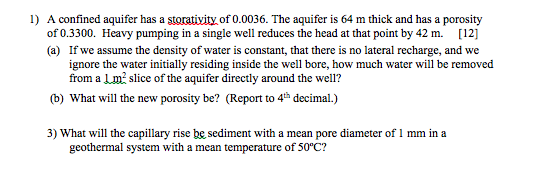

![1) A confined aquifer has a storativity of 0.0036. The aquifer is 64 m thick and has a porosity of 0.3300. Heavy pumping in a single well reduces the head at that point by 42 m. [12] (a) If we assume the density of water is constant, that there is no lateral recharge, and we ignore the water initially residing inside the well bore, how much water will be removed from a Lm2 slice of the aquifer directly around the well? (b) What will the new porosity be? (Report to 4th decimal.) 3) What will the capillary rise be sediment with a mean pore diameter of 1 mm in a geothermal system with a mean temperature of 50°c?](http://img.homeworklib.com/questions/ec645c80-a197-11ec-b3b1-b1e9c9ff43ed.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
1) A confined aquifer has a storativity of 0.0036. The aquifer is 64 m thick and...
Question 5: (25 marks) A fully penetrating pumping well is located in a confined aquifer that can be considered to have an infinite extent in all directions. There is no recharge to the aquifer a...
Question 5: (25 marks) A fully penetrating pumping well is located in a confined aquifer that can be considered to have an infinite extent in all directions. There is no recharge to the aquifer and no other pumping wells in the area. There are two observation wells located at 100 and 500 m, respectively, from the pumping wells. The aquifer and the pumping well have the following properties: Depth to top of aquifer: 50 m Aquifer thickness: 5 m Aquifer...
1. (2 points) A well in a uniform, homogeneous, isotropic confined aquifer is pumped at a...
1. (2 points) A well in a uniform, homogeneous, isotropic confined aquifer is pumped at a rate of 815 L/min. After 3 days it looks as if the water levels have stabilized in observation wells at distances of 20 m and 200 m from the pumping well. The drawdown in the well at 20 m is 6.5 m and the drawdown in the well at 200 m is 3.5 m. a) Use the Thiem solution to determine the aquifer transmissivity....
1) In a leaky confined aquifer, estimate how far from a well pumping at 175 m3/day...
1) In a leaky confined aquifer, estimate how far from a well pumping at 175 m3/day a steady state drawdown of 0.4 m will be observed. Assume the aquifer is 10 m thick with a horizontal hydraulic conductivity of 7 m/day, the K' is 1 m/day and the b' is 1 m thick, the storativity of the aquifer, S, is 0.02. 2) For the conditions in problem 1, estimate the drawdown at this location after 15 minutes. 3) At the...
A well is pumping near a barrier boundary at a rate of 0.05 m3/s from a confined aquifer 20 m thi...
A well is pumping near a barrier boundary at a rate of 0.05 m3/s
from a confined aquifer 20 m thick. The hydraulic conductivity of
the aquifer is 5 x 10-4 m/s, and its storativity is 4 x 10-5.
Determine the drawdown in the observation well after 30 hours of
continuous pumping. What is the fraction of the drawdown
attributable to the barrier boundary?
River fi Гр-240 m 30° 300 m 300 m
River fi Гр-240 m 30° 300 m...
1) In a leaky confined aquifer, estimate how far from a well pumping at 175 m3/day...
1) In a leaky confined aquifer, estimate how far from a well pumping at 175 m3/day a steady state drawdown of 0.4 m will be observed. Assume the aquifer is 10 m thick with a horizontal hydraulic conductivity of 7 m/day, the K' is 1 m/day and the b' is 1 m thick, the storativity of the aquifer, S, is 0.02. 2) For the conditions in problem 1, estimate the drawdown at this location after 15 minutes. 3) At the...
A confined aquifer is 3 m thick. The potentiometric surface drops 17 cm between two wells...
A confined aquifer is 3 m thick. The potentiometric surface drops 17 cm between two wells that are 240 m apart. If the hydraulic conductivity of the aquifer is 6.4 m/day and the effective porosity is 0.17, (a) determine the volume of water flowing per day through a strip of the aquifer that is 3 m wide; (b) determine the groundwater flow velocity; (c) calculate the velocity of a contaminant in this aquifer if dry bulk density of aquifer material...
Question. A 50 m thick homogeneous confined aquifer is shortened length wide by two parallel impermeable...
Question. A 50 m thick homogeneous confined aquifer is shortened length wide by two parallel impermeable boundaries as shown below. The well is pumped at 0.3 mº/s for 3 days. Before pumping started, the real well (R) and observation well (A) are positioned at 300 m and 200 m from the barrier of the right hand side aquifer. Calculate the drawdown at a point A at the end of the last day (t = 3 days). Assume T = 0.01...
Watch your significant figures! Example 2. A confined aquifer 32.0 m thick has two monitoring wells...
Watch your significant figures! Example 2. A confined aquifer 32.0 m thick has two monitoring wells spaced 420.0 m apart along the direction of groundwater flow. The difference in water level in the wells is 3.5 m (the difference in piezometric head). The hydraulic conductivity is 22.0 m/day. Estimate the rate of flow per meter of distance perpendicular to the flow (i.e., Q in m'/day per meter of aquifer width). 420.0 m 3.5 m Flow 32.0 m Confined aquifer 22.0...
Question 5: (25 marks) A fully penetrating pumping well is located in a confined aquifer that can be considered to have an infinite extent in all directions. There is no recharge to the aquifer and no other pumping wells in the area. There are two observation wells located at 100 and 500 m, respectively, from the pumping wells. The aquifer and the pumping well have the following properties: Depth to top of aquifer: 50 m Aquifer thickness: 5 m Aquifer...
A well is pumping near a barrier boundary at a rate of 0.05 m3/s
from a confined aquifer 20 m thick. The hydraulic conductivity of
the aquifer is 5 x 10-4 m/s, and its storativity is 4 x 10-5.
Determine the drawdown in the observation well after 30 hours of
continuous pumping. What is the fraction of the drawdown
attributable to the barrier boundary?
River fi Гр-240 m 30° 300 m 300 m
River fi Гр-240 m 30° 300 m...
Question. A 50 m thick homogeneous confined aquifer is shortened length wide by two parallel impermeable boundaries as shown below. The well is pumped at 0.3 mº/s for 3 days. Before pumping started, the real well (R) and observation well (A) are positioned at 300 m and 200 m from the barrier of the right hand side aquifer. Calculate the drawdown at a point A at the end of the last day (t = 3 days). Assume T = 0.01...
Watch your significant figures! Example 2. A confined aquifer 32.0 m thick has two monitoring wells spaced 420.0 m apart along the direction of groundwater flow. The difference in water level in the wells is 3.5 m (the difference in piezometric head). The hydraulic conductivity is 22.0 m/day. Estimate the rate of flow per meter of distance perpendicular to the flow (i.e., Q in m'/day per meter of aquifer width). 420.0 m 3.5 m Flow 32.0 m Confined aquifer 22.0...
