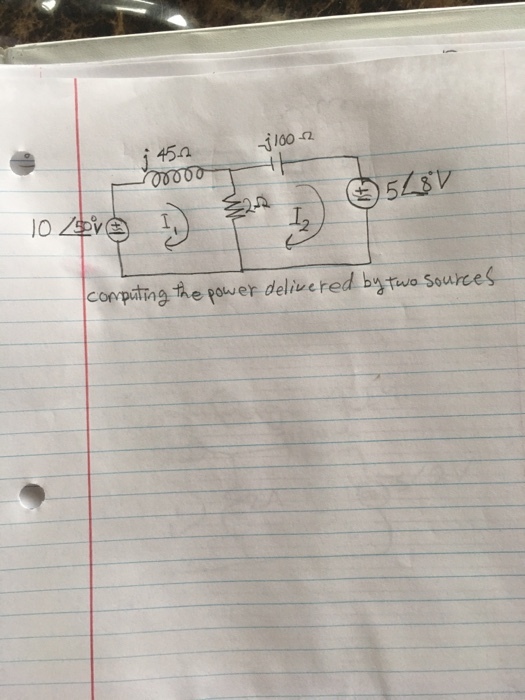

Please show all the steps to this problem 450 2 corpiating the power delivered bytwe Sources

Question

Question

Please show all the steps to this problem

engineering Electrical-Engineering

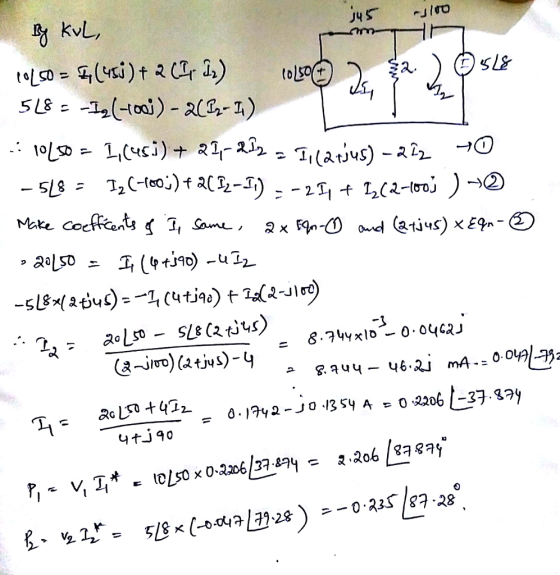

Answer 1

Answer #1

Answer 2
