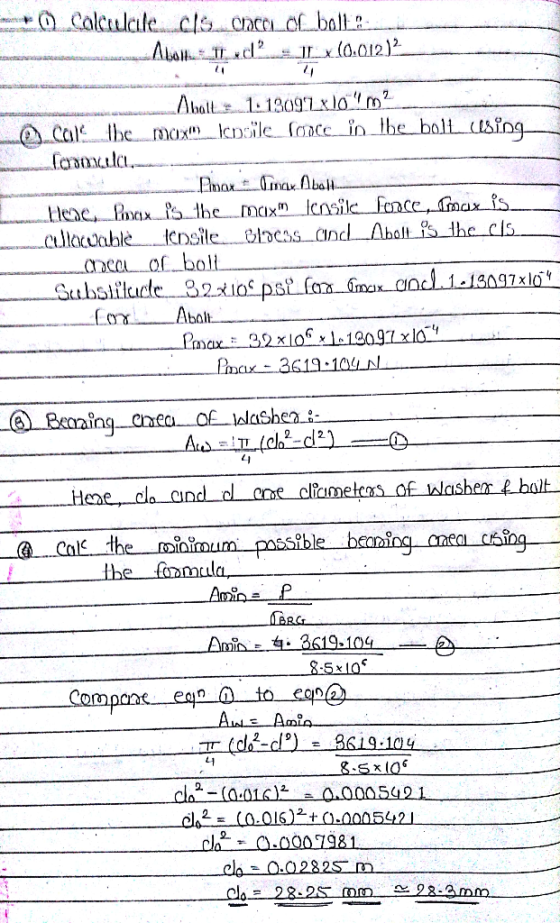

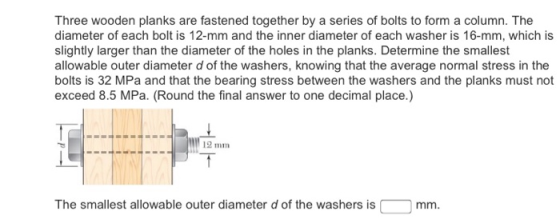

Three wooden planks are fastened together by a series of bolts to form a column. The...
4- The joint is fastened together using two bolts. Determine the required diameter of the bolts...
4- The joint is fastened together using two bolts. Determine the required diameter of the bolts if the failure shear stress for the bolts is fail = 350 MPa. Use a factor of safety for shear of F.S. = 2.5. 30 mm 80 KN 30 mm 40 KN 40 KN
I can't figure this one out. The tension member is faster is fastened together using two bolts, one on each side of t...
I can't figure this one out.
The tension member is faster is fastened together using two bolts, one on each side of the member as shown. Each bolt has a diameter of 0.3 in. Determine the maximum load P that can be applied to the member if the allowable shear stress for the bolts is tau allow = 12 ksi and the allowable average normal stress id sigma allow = 20 ksi.
Problem 1.72 Copy The tension member is fastened together using TWO bolts, one on each side...
Problem 1.72 Copy The tension member is fastened together using TWO bolts, one on each side of the member as shown. 60 Each bolt has a diameter of 0.3 in. The allowable shear stress for the bots is Tallow-12 ksi and the allowable average normal stress is ơallow-17 ksi. Part A Determine the maximum load P that can be applied to the member. Express your answer to three significant figures and include appropriate units. xValue Units Submit Request Answer
A steel rod whose diameter is equal to 15 mm is held between rigid walls with...
A steel rod whose diameter is equal to 15 mm is held between
rigid walls with no initial stress, see 2(a). The steel properties are ? = 12 × 10?6/ oC
and E = 200 GPa.
(a) What is the temperature drop
?T (in degrees Celsius) at which the average shear stress in the
12-mm diameter bolt becomes 55 MPa.
(b) At the temperature that you defined in (a), what is the
normal stress in the rod?
(c) What are...
The built-up beam shown is made by gluing together five wooden planks. Knowing that the allowable...
The built-up beam shown is made by gluing together five wooden planks. Knowing that the allowable average shearing stress in the glued joints is 82 psi, determine the largest permissible vertical shear in the beam. 2 in. 4 in. 12 in བདག་ 5 in. 2 in. 5 in. The largest permissible vertical shear in the beam is Ib.
A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The...
A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 8-mm-diameter bolts are spaced at intervals of s = 290 mm along the x axis of the beam. If the internal shear force in the beam is V = 9.4 kN, determine the shear stress t in each bolt. Assume b1 = 49 mm, b2 = 49 mm, d1 = 104 mm, d2 = 270 mm. bib2 bi di d2 X Answer: t =...
A wooden beam is fabricated from three boards, which are fastened together with screws, as shown....
A wooden beam is fabricated from three boards, which are fastened together with screws, as shown. The screws are uniformly spaced along the span of the beam at intervals of 260 mm. In service, the beam will be positioned so that bending occurs about the z axis. The maximum bending moment in the beam is Mz =ー3.54 kN-m, and the maximum shear force in the beam is vy =-3.67 kN. Assume s=260 mm, b1 = 33 mm, b2 = 200...
1.8-18 A removable sign post on a hurricane evacu- ute (see figure part a) consists of...
1.8-18 A removable sign post on a hurricane evacu- ute (see figure part a) consists of an upper pole with a slotted base plate bolted to a short post anchored in the ground. The lower post is capped with a separate conventional base plate having four holes of diameter d, The upper base plate has slots at locations 1 to 4 and is bolted to the lower base plate at these four points (see figure part b). Each of the...
P9.049 A wooden beam is fabricated from three boards, which are fastened together with screws, as shown. The screws are uniformly spaced along the span of the beam at intervals of 240 mm. In service,...
P9.049 A wooden beam is fabricated from three boards, which are fastened together with screws, as shown. The screws are uniformly spaced along the span of the beam at intervals of 240 mm. In service, the beam will be positioned so that bending occurs about the z axis. The maximum bending moment in the beam is Mz--4.99 kN-m, and the maximum shear force in the beam is Vy -3.25 kN. Assume s=240 mm, b,-37 mm, b2=240 mm, d1=190 mm, d2=...
using this page for the final answers of the following problems i need the right answer...
using this page for the final answers of the following
problems i need the right answer using these letters
problem 3
problem 4
problem 9
Your Answers will be graded based on this page only; any other solutions anywhere else will not be taken into consideration! Select the correct answer from all letters (a,b,c,d,e,f) and write the correct letter only in this column Question No. Select your answer from (a,b,c,d,e,f) and write your selection letter in the right column Write...
4- The joint is fastened together using two bolts. Determine the required diameter of the bolts if the failure shear stress for the bolts is fail = 350 MPa. Use a factor of safety for shear of F.S. = 2.5. 30 mm 80 KN 30 mm 40 KN 40 KN
I can't figure this one out.
The tension member is faster is fastened together using two bolts, one on each side of the member as shown. Each bolt has a diameter of 0.3 in. Determine the maximum load P that can be applied to the member if the allowable shear stress for the bolts is tau allow = 12 ksi and the allowable average normal stress id sigma allow = 20 ksi.
Problem 1.72 Copy The tension member is fastened together using TWO bolts, one on each side of the member as shown. 60 Each bolt has a diameter of 0.3 in. The allowable shear stress for the bots is Tallow-12 ksi and the allowable average normal stress is ơallow-17 ksi. Part A Determine the maximum load P that can be applied to the member. Express your answer to three significant figures and include appropriate units. xValue Units Submit Request Answer
A steel rod whose diameter is equal to 15 mm is held between
rigid walls with no initial stress, see 2(a). The steel properties are ? = 12 × 10?6/ oC
and E = 200 GPa.
(a) What is the temperature drop
?T (in degrees Celsius) at which the average shear stress in the
12-mm diameter bolt becomes 55 MPa.
(b) At the temperature that you defined in (a), what is the
normal stress in the rod?
(c) What are...
The built-up beam shown is made by gluing together five wooden planks. Knowing that the allowable average shearing stress in the glued joints is 82 psi, determine the largest permissible vertical shear in the beam. 2 in. 4 in. 12 in བདག་ 5 in. 2 in. 5 in. The largest permissible vertical shear in the beam is Ib.
A wooden beam is fabricated by bolting together three members. The cross-sectional dimensions are shown. The 8-mm-diameter bolts are spaced at intervals of s = 290 mm along the x axis of the beam. If the internal shear force in the beam is V = 9.4 kN, determine the shear stress t in each bolt. Assume b1 = 49 mm, b2 = 49 mm, d1 = 104 mm, d2 = 270 mm. bib2 bi di d2 X Answer: t =...
A wooden beam is fabricated from three boards, which are fastened together with screws, as shown. The screws are uniformly spaced along the span of the beam at intervals of 260 mm. In service, the beam will be positioned so that bending occurs about the z axis. The maximum bending moment in the beam is Mz =ー3.54 kN-m, and the maximum shear force in the beam is vy =-3.67 kN. Assume s=260 mm, b1 = 33 mm, b2 = 200...
1.8-18 A removable sign post on a hurricane evacu- ute (see figure part a) consists of an upper pole with a slotted base plate bolted to a short post anchored in the ground. The lower post is capped with a separate conventional base plate having four holes of diameter d, The upper base plate has slots at locations 1 to 4 and is bolted to the lower base plate at these four points (see figure part b). Each of the...
P9.049 A wooden beam is fabricated from three boards, which are fastened together with screws, as shown. The screws are uniformly spaced along the span of the beam at intervals of 240 mm. In service, the beam will be positioned so that bending occurs about the z axis. The maximum bending moment in the beam is Mz--4.99 kN-m, and the maximum shear force in the beam is Vy -3.25 kN. Assume s=240 mm, b,-37 mm, b2=240 mm, d1=190 mm, d2=...
using this page for the final answers of the following
problems i need the right answer using these letters
problem 3
problem 4
problem 9
Your Answers will be graded based on this page only; any other solutions anywhere else will not be taken into consideration! Select the correct answer from all letters (a,b,c,d,e,f) and write the correct letter only in this column Question No. Select your answer from (a,b,c,d,e,f) and write your selection letter in the right column Write...
