Add Answer to:

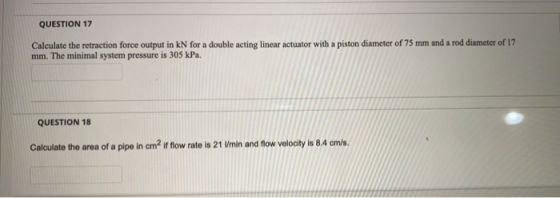

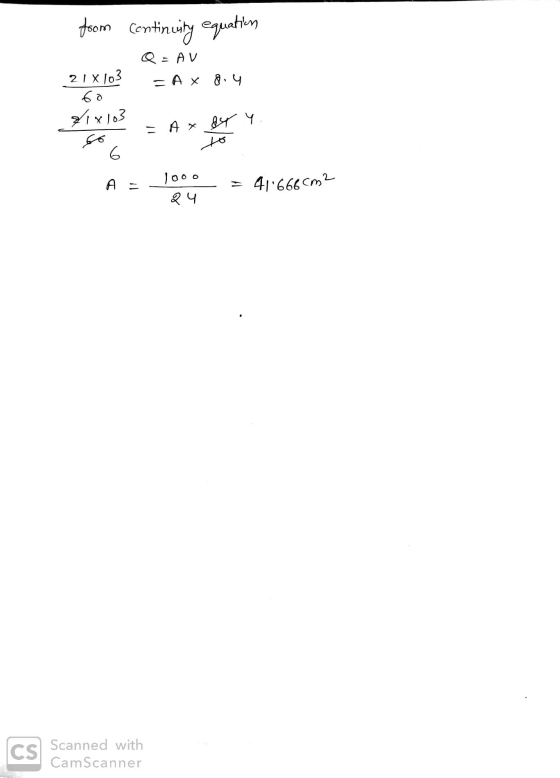

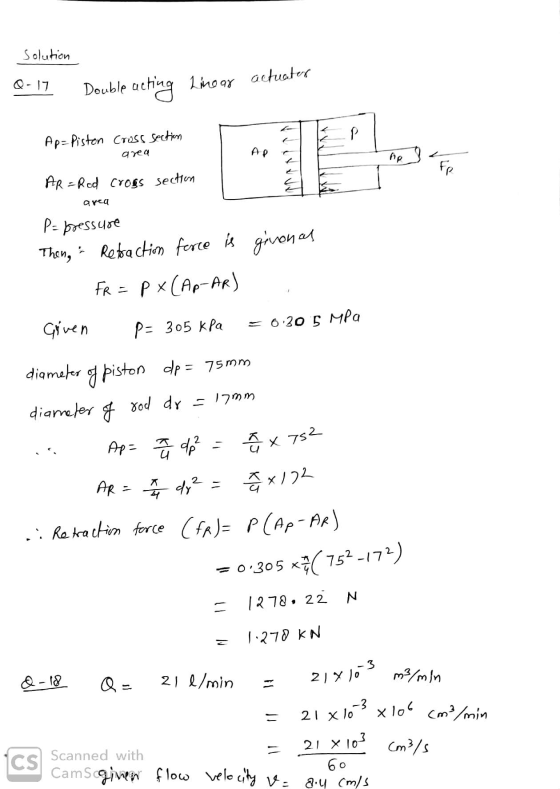

QUESTION 17 Calculate the retraction force output in kN for a double acting linear actuator with...
A cylinder is required to life a load of 120 kN in a system. Fluid pressure...
A cylinder is required to life a load of 120 kN in a system. Fluid pressure available is 15 Mpa. What cylinder size is required? A pump supplies oil at 0.0016 m3/s to a 40 mm diameter double acting hydraulic cylinder. If the load is 5000 N (extending and retracting) and the rod diameter is 20 mm, find the; (i) hydraulic pressure during the extending stroke; (ii) piston velocity during the extending stroke; (iii) cylinder kW power during the extending...
I need answer of this question please A pipe bends through 90 from its initial direction....
I need answer of this question please
A pipe bends through 90 from its initial direction. The pipe reduces in diameter such that the velocity at outlet is 1.5 times the velocity at inlet. The pipe diameter is 200 mm and static pressure is (100 10X) kPa at inlet. The volume flow rate is 0.2 m'/s. calculate the following: 1) Velocity at outlet 2) Pressure at outlet 3) The horizontal and vertical forces on the bend 4) The total resultant...
Answer Questions 1&2 Question -1 Inside diameters of a pipe at sections 1 and 2 are...
Answer Questions 1&2
Question -1 Inside diameters of a pipe at sections 1 and 2 are 50 mm and 100 mm, respectively. Water is flowing with an average velocity of 8 m/s at section 1. Calculate: (a) Velocity at section 2 (b) Discharge Q (C) Weight flow rate. Flow Reference level Question - 2 In Fig. (Given in Question -1) water is flowing from section 1 to section 2. At section 1, which is 25 mm in diameter, the gage...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
QUESTION 1 Water at 10 °C is flowing in a 90 bend pipe, with inner diameter...
QUESTION 1 Water at 10 °C is flowing in a 90 bend pipe, with inner diameter of 150 mm, at an average velocity of 3.0 m/s and gauge pressure of 300 kPa. The pipe is laid in the horizontal plane as shown in figure below. The magnitude of the resultant (horizontal) force required to hold the bend in place is: a 5.46 kN b.7.72 kN Oc 10.92 kN d.5.15 kN . None of the other answers QUESTION 2 A 25.0...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980 kJ/kg and the velocity is 80 m/s. At the exit of the nozzle, the specific enthalpy of the fluid drops to 2670 kJ/kg. The nozzle orientation is horizontal and the heat loss is negligible. Given that the nozzle inlet area is 0.25 m2 and the specific volume of the fluid is 0.2 m2/kg, calculate the velocity of the fluid at exit, the mass flow...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl...
Consider the pneumatic cylinder as shown in Figure 1 which is an illustration from the Starcyl space-saver range, as can be found in their Star2.pdf catalogue, www.starcyl.com. Some pneumatic cylinders can have a push/pull rod (item I in Figure 1) protruding from either head (item A in Figure 1), but this cylinder clearly has only one, making it a “single rod end” type of cylinder. This cylinder is however “double acting”, which means it can be pressurised on either side...
7. A solid sphere of copper ( 8940 kg/m') with a radius of 5.0 cm has...
7. A solid sphere of copper ( 8940 kg/m') with a radius of 5.0 cm has a mass of a) 45 9 kg b) 6.78 kg c) 25.7 kg d) 4.68 kg (10 pts) The pressure at the bottom of a 76-cm high column of mercury (p = 13,550 kg/m) is a) 0.010 kPa b) 101 kPa c) 10.1 kPa d) 0.101 kPa (10 pts) 9. Anaxial force of 20 kN acts on a 1.50-cm diameter rod. The axial stress...
L2 r. cunhinning moncones the spood of piston at the hepinning of the stonke in the...
L2 r. cunhinning moncones the spood of piston at the hepinning of the stonke in the cylinder cushimin decrees the speed of piston ot the beginning of the role in the und 2) Which Type of bydraulic finder has one piston connected to piston rud extended on both the a female clevis 1. Circular fans c. Trunnion all of the above Which of the following is used for mounting purpose in luydraulic cylinders? sides of the cylinder! 3. telescopic cylinder...
Question 1 Calculate the heat exchange surface area required in a heat exchanger comprised of tubes...
Question 1 Calculate the heat exchange surface area required in a heat exchanger comprised of tubes with an external diameter of 25 mm in order to cool a solution of ethyl alcohol (mass flow rate kg/h, heat capacity: 3.8 kJ/kg K) from 65 C to 40 °C using a water flow (mass flow rate: 22,680 kg/h, 24,948 , heat capacity: 4.18 kJ/kg K) entering at 5 °C. The overall heat transfer coefficient related to the outside tube surface is 566...
I need answer of this question please
A pipe bends through 90 from its initial direction. The pipe reduces in diameter such that the velocity at outlet is 1.5 times the velocity at inlet. The pipe diameter is 200 mm and static pressure is (100 10X) kPa at inlet. The volume flow rate is 0.2 m'/s. calculate the following: 1) Velocity at outlet 2) Pressure at outlet 3) The horizontal and vertical forces on the bend 4) The total resultant...
Answer Questions 1&2
Question -1 Inside diameters of a pipe at sections 1 and 2 are 50 mm and 100 mm, respectively. Water is flowing with an average velocity of 8 m/s at section 1. Calculate: (a) Velocity at section 2 (b) Discharge Q (C) Weight flow rate. Flow Reference level Question - 2 In Fig. (Given in Question -1) water is flowing from section 1 to section 2. At section 1, which is 25 mm in diameter, the gage...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
QUESTION 1 Water at 10 °C is flowing in a 90 bend pipe, with inner diameter of 150 mm, at an average velocity of 3.0 m/s and gauge pressure of 300 kPa. The pipe is laid in the horizontal plane as shown in figure below. The magnitude of the resultant (horizontal) force required to hold the bend in place is: a 5.46 kN b.7.72 kN Oc 10.92 kN d.5.15 kN . None of the other answers QUESTION 2 A 25.0...
Question 2 (30 marks) (a) A fluid flowing into a nozzle with specific enthalpy of 2980 kJ/kg and the velocity is 80 m/s. At the exit of the nozzle, the specific enthalpy of the fluid drops to 2670 kJ/kg. The nozzle orientation is horizontal and the heat loss is negligible. Given that the nozzle inlet area is 0.25 m2 and the specific volume of the fluid is 0.2 m2/kg, calculate the velocity of the fluid at exit, the mass flow...
7. A solid sphere of copper ( 8940 kg/m') with a radius of 5.0 cm has a mass of a) 45 9 kg b) 6.78 kg c) 25.7 kg d) 4.68 kg (10 pts) The pressure at the bottom of a 76-cm high column of mercury (p = 13,550 kg/m) is a) 0.010 kPa b) 101 kPa c) 10.1 kPa d) 0.101 kPa (10 pts) 9. Anaxial force of 20 kN acts on a 1.50-cm diameter rod. The axial stress...
L2 r. cunhinning moncones the spood of piston at the hepinning of the stonke in the cylinder cushimin decrees the speed of piston ot the beginning of the role in the und 2) Which Type of bydraulic finder has one piston connected to piston rud extended on both the a female clevis 1. Circular fans c. Trunnion all of the above Which of the following is used for mounting purpose in luydraulic cylinders? sides of the cylinder! 3. telescopic cylinder...
Question 1 Calculate the heat exchange surface area required in a heat exchanger comprised of tubes with an external diameter of 25 mm in order to cool a solution of ethyl alcohol (mass flow rate kg/h, heat capacity: 3.8 kJ/kg K) from 65 C to 40 °C using a water flow (mass flow rate: 22,680 kg/h, 24,948 , heat capacity: 4.18 kJ/kg K) entering at 5 °C. The overall heat transfer coefficient related to the outside tube surface is 566...
