Homework Answers

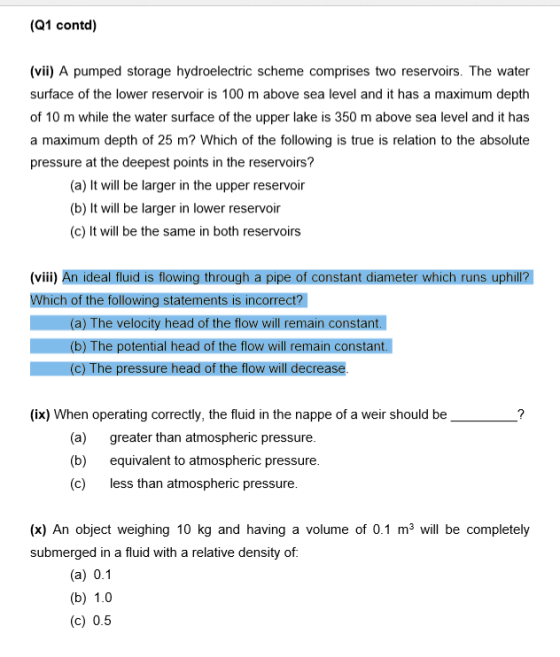

vii) a) it will be larger in upper reservoir
since the height of water in a upper reservoir is 25 m which greater than that of lower reservoir.
higher the depth , higher will be the absolute pressure , since absolute pressure = density of water x acceleration due to gravity x height of water
viii) c) pressure head of flow decreases is the wrong answer. unless there is increase in pressure head, flow cannot occur over the uphill
ix) a) greater than the atmoshperic pressure... flow only occurs if and only if, pressure is greater than the atmospheric pressure
x) relative density = weight of object in air / weight of water that displaced
weight of object in air = m g = 10 x 10 = 100 N
weight of water that displaced = volume displaced x unit weight of water
= 0.1 x 10x 103
= 1000 N
relative density = 100 N / 1000 N = 0.1
option a) 0.1
