C. Producing virtual images The eyepiece of a microscope produces a virtual image to be viewed...
C. Producing virtual images The eyepiece of a microscope produces a virtual image to be viewed by the eye, i.e. the rays of light that form the final image diverge from the lens and appear to come from a location behind the eyepiece lens (the image appears to be behind the lens).

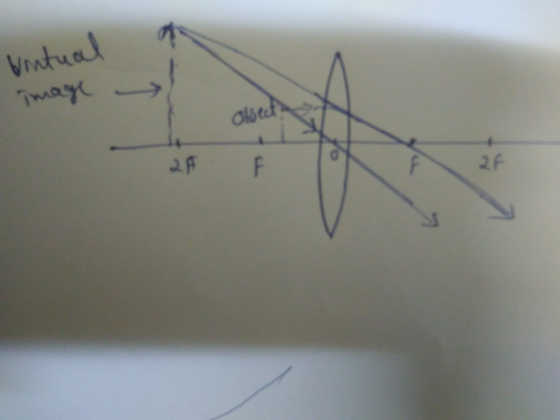

1. Make a ray diagram for a converging lens (focal length f) with the object at a distance s < f.
Homework Answers
Add Answer to:
C. Producing virtual images The eyepiece of a microscope
produces a virtual image to be viewed...
The compound microscope consists of two converging lenses: the objective and the eyepiece. Suppose the focal...
The compound microscope consists of two converging lenses: the objective and the eyepiece. Suppose the focal length f_1 of the objective is 20 cm, and the focal length f2 of the eyepiece is 20 cm. The separation between the objective and eyepiece is 66 cm. The object is located 30 cm in front of the objective. (These numbers are not realistic for a real microscope.) a. Calculate the location and magnification of the image, and state whether it is a...
A converging lens with a focal length of 12 cm produces a 3-cm high virtual image...
A converging lens with a focal length of 12 cm produces a 3-cm
high virtual image of a 1-cm high object. Which entry in the table
below is correct? Draw a neat ray diagram. PLEASE REMEMBER TO DRAW
THE RAY DIAGRAM.
Problem 13 A converging lens with a focal length of 12 cm produces a 3-cm high virtual image of a 1-cm high object. Which entry in the table below is correct? image distance location of image A) 8 cm...
Design a microscope with a 20X objective, 160 mm tube length and an eyepiece that produces...
Design a microscope with a 20X objective, 160 mm tube length and an eyepiece that produces another 1.5X of visual magnification. For simplicity, you may put the image for the eye at infinity. Begin your design with a drawing of the situation. Then graphically trace your rays through the system. You should be able to answer the following questions when your design is complete: What is the focal length of the objective lens in mm? For the previous question's microscope...
A compound microscope has an objective lens of focal length 10.0 mm with an eyepiece of...
A compound microscope has an objective lens of focal length 10.0 mm with an eyepiece of focal length 15.5 mm , and it produces its final image at infinity. The object to be viewed is placed 2.0 mm beyond the focal point of the objective lens. a. How far from the objective lens is the first image formed? b. What is the overall magnification of this microscope?
6. A compound microscope consists of two converging lenses (the objective and the eyepiece) placed 7.0...
6. A compound microscope consists of two converging lenses (the objective and the eyepiece) placed 7.0 cm apart. If the first lens (objective) has a focal length of 2.8 mm and the second lens (eyepiece) has a focal length of 3.3 cm, what would be the location of the final image of an object placed 3.0 mm from the objective lens? Describe the image
Which is true of a compound microscope? Question 1 options: Uses two converging lenses The optics...
Which is true of a compound microscope? Question 1 options: Uses two converging lenses The optics are reversed from those of a refracting telescope The object to be viewed to be enlarged is placed just outside the focal point of the lens All of the above An optical surface is converging if . . . Question 2 options: Parallel incident rays are bent so they intersect after interacting with the surface Parallel incident rays are bent so they intersect before...
A converging lens with a focal length of 12 cm produces a 3-cm high virtual image...
A converging lens with a focal length of 12 cm produces a 3-cm high virtual image of a 1-cm high object. Which entry in the table below is correct? image distance location of image A) 8 cm same side of lens as object B) 8 cm opposite side of lens from object C) 12 cm opposite side of lens from object D) 24 cm opposite side of lens from object E) 24 cm same side of lens as object (Draw...
Match the key terms with the definitions Diverging lens Focal length Angular magnification Real image Virtual...
Match the key terms with the definitions Diverging lens Focal length Angular magnification Real image Virtual image Where light rays from a point on an Draq arsiver nere Distance along the optical axis from the focal point to the lens or mirrorDrag answer here which is focusing the light inear magnification Ratio of image height to object height Drag answer here Point where light rays oppear to come Drag arsiwer ere Lens where rays of light that enter parallel will...
Which of the following statements are true about a compound microscope? (There may be more than...
Which of the following statements are true about a compound microscope? (There may be more than one correct choice.)A. The objective lens produces an inverted virtual image of the object.B. The image produced by the objective lens is just inside the focal point of the eyepiece.C. The final image is inverted compared with the original object.D. The object to be viewed is placed just inside the focal point of the objective lens.E. The final image is virtual.
1. How is a real image different from a virtual image? Why might it be difficult...
1. How is a real image different from a virtual image? Why might it be difficult to measure the location of the virtual image? (2 points) 2. The figure below shows an object to the left of a converging lens and the resulting image to the right. On the diagram draw the three principal rays. (3 points) object near f far image The figure Above shows an object to the left of a converging lens and the resulting image to...
The compound microscope consists of two converging lenses: the objective and the eyepiece. Suppose the focal length f_1 of the objective is 20 cm, and the focal length f2 of the eyepiece is 20 cm. The separation between the objective and eyepiece is 66 cm. The object is located 30 cm in front of the objective. (These numbers are not realistic for a real microscope.) a. Calculate the location and magnification of the image, and state whether it is a...
A converging lens with a focal length of 12 cm produces a 3-cm
high virtual image of a 1-cm high object. Which entry in the table
below is correct? Draw a neat ray diagram. PLEASE REMEMBER TO DRAW
THE RAY DIAGRAM.
Problem 13 A converging lens with a focal length of 12 cm produces a 3-cm high virtual image of a 1-cm high object. Which entry in the table below is correct? image distance location of image A) 8 cm...
6. A compound microscope consists of two converging lenses (the objective and the eyepiece) placed 7.0 cm apart. If the first lens (objective) has a focal length of 2.8 mm and the second lens (eyepiece) has a focal length of 3.3 cm, what would be the location of the final image of an object placed 3.0 mm from the objective lens? Describe the image
A converging lens with a focal length of 12 cm produces a 3-cm high virtual image of a 1-cm high object. Which entry in the table below is correct? image distance location of image A) 8 cm same side of lens as object B) 8 cm opposite side of lens from object C) 12 cm opposite side of lens from object D) 24 cm opposite side of lens from object E) 24 cm same side of lens as object (Draw...
Match the key terms with the definitions Diverging lens Focal length Angular magnification Real image Virtual image Where light rays from a point on an Draq arsiver nere Distance along the optical axis from the focal point to the lens or mirrorDrag answer here which is focusing the light inear magnification Ratio of image height to object height Drag answer here Point where light rays oppear to come Drag arsiwer ere Lens where rays of light that enter parallel will...
1. How is a real image different from a virtual image? Why might it be difficult to measure the location of the virtual image? (2 points) 2. The figure below shows an object to the left of a converging lens and the resulting image to the right. On the diagram draw the three principal rays. (3 points) object near f far image The figure Above shows an object to the left of a converging lens and the resulting image to...
