Problem 07.047 - Sequentially Switched Sources Determine v(t) for t> 0 in the circuit of the...

Question

Question

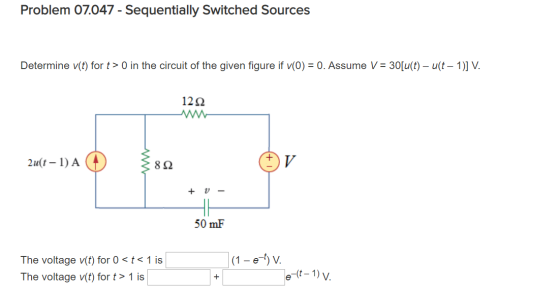

Problem 07.047 - Sequentially Switched Sources Determine v(t) for t> 0 in the circuit of the given figure if v(0) = 0. Assume

engineering Electrical-Engineering

Answer 1

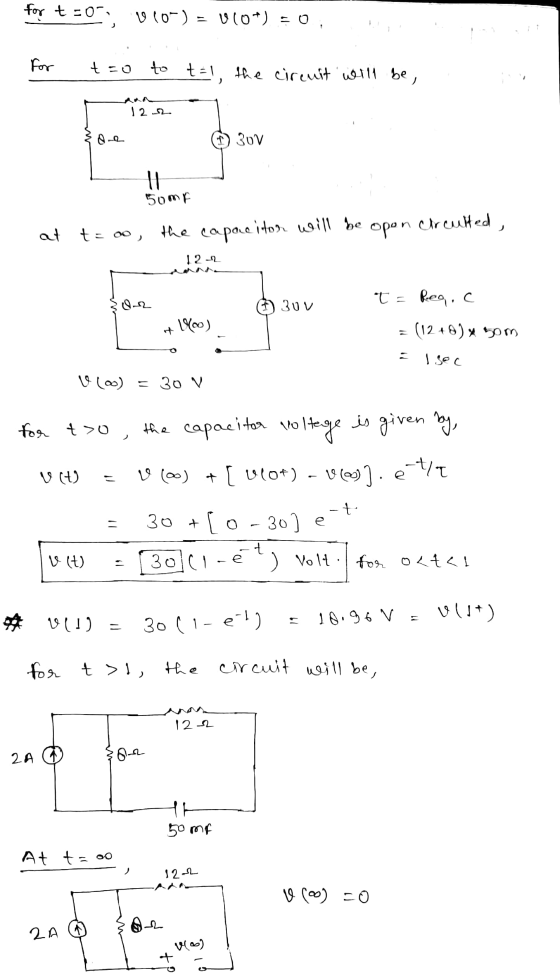

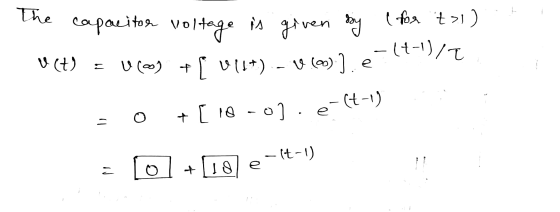

Answer #1

Answer 2
