Subject: Thermodynamics A steam power plant operates on a simple ideal Rankine cycle between the pressure...
Subject: Thermodynamics
A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 9 MPa and 10 kPa. The mass flow rate of the steam through the cycle is 60 kg/s. The quality of the steam at the turbine exit is 90 percent.

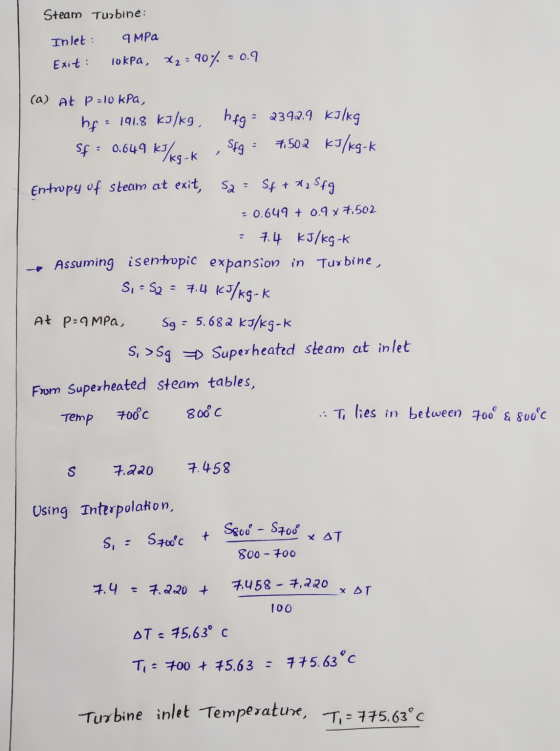

a)What is the turbine inlet temperature in C?

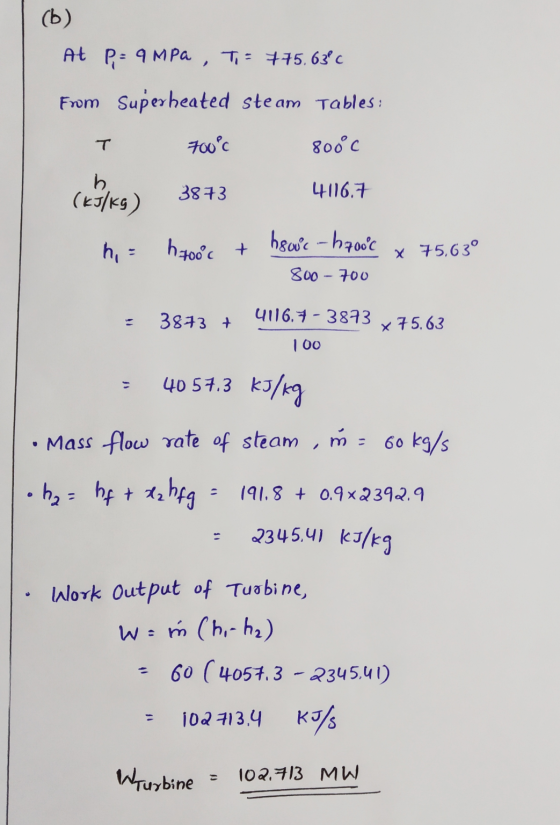

b)What is the work output of the turbine in kJ/s?
Homework Answers
Add Answer to:
Subject: Thermodynamics
A steam power plant operates on a simple ideal Rankine cycle
between the pressure...
Q1. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits...
Q1. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 4 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 300°C, and the mass flow rate of steam through the cycle is 35 kg/s. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the thermal efficiency of the cycle and (b) the net power output of the power plant. 02
10-12A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of...
10-12A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 3 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 300°C, and the mass flow rate of steam through the cycle is 35 kg/s. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the thermal efficiency of the cycle and (b) the net power output of the power plant. If it is actual...
Q2. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits...
Q2. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 3 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 350oC, and the mass flow rate of steam through the cycle is 25 kg/sec. Determine the net power output of the power plant in KW. Also, show the cycle on a T-s diagram with respect to saturation lines. (Note: Use and show the units throughout the solution. Work...
A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of...
A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 6 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 450◦C, and the mass flow rate of steam through the cycle is 50 kg/s. (a) Find the temperature, pressure and specific volume at states 1, 2, 3, and 4. (b) Find the heat supplied, heat rejected, work consumed by the pump, work produced by the turbine, net power generation,...
A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of...
A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of 5 MPa and 100 kPa. The temperature of the steam att the turbine is 500 C degree and the mass flow rate of steam through the cycle is 35 kg/s. a) Determine the thermal efficiency of the cycle. b) determine the net power output of the power plant ( Assume both the turbine and the pump have isentropic efficiency of 100%). c) Draw the...
2) Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam...
2) Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters...
Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Assume an isentropic efficiency of 85 percent for both the turbine and the pump. (a) the quality of the steam at the turbine exit (b) the thermal efficiency of the cycle (c) the mass flow rate of the steam.
Problem 10.3: Consider a 300-MW steam power plant that operates on a simple ideal Rankine cycle....
Problem 10.3: Consider a 300-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters...
Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 15 kPa. Determine the mass flow rate of the steam in kg/s.
A steam power plant operates on the basis of Rankine cycle between the pressure limits of...
A steam power plant operates on the basis of Rankine cycle between the pressure limits of 10 MPa in the boiler and 15 kPa in the condenser. The turbine inlet temperature is 425oC. The turbine isentropic efficiency is 90 percent, the pump losses are negligible, and the cycle is sized to produce 2500 kW of power. (a) Calculate the mass flow rate through the boiler, the power produced by the turbine, the rate of heat supply in the boiler, and...
Q1. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 4 MPa and 50 kPa. The temperature of the steam at the turbine inlet is 300°C, and the mass flow rate of steam through the cycle is 35 kg/s. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the thermal efficiency of the cycle and (b) the net power output of the power plant. 02
2) Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
Problem 10.3: Consider a 300-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
