Please show work for:

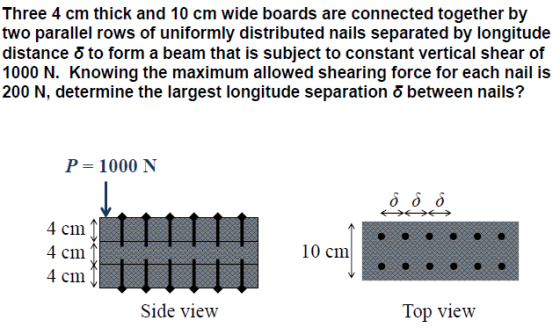

Three 4cm thick and 10 cm wide boards are connected together by two parallel rows of uniformly distributed nails separated...

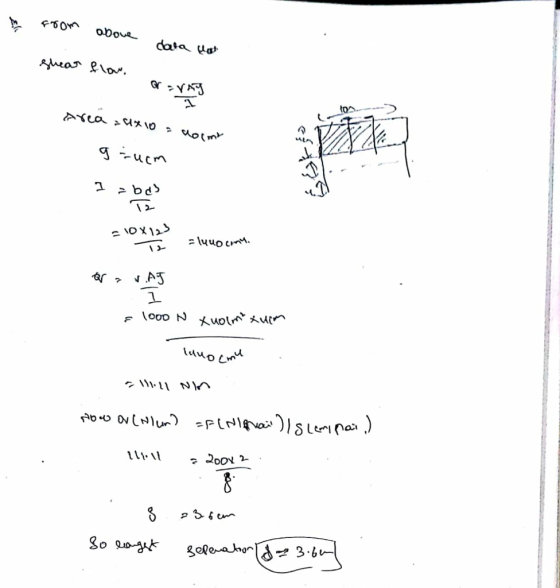

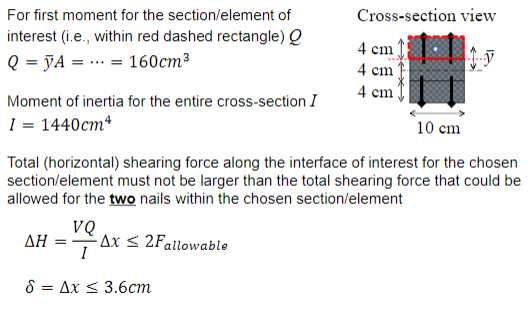

Answer:
Homework Answers
Add Answer to:
Please show work for:
Three 4cm thick and 10 cm wide boards are connected together by...
