Homework Answers
Add Answer to:

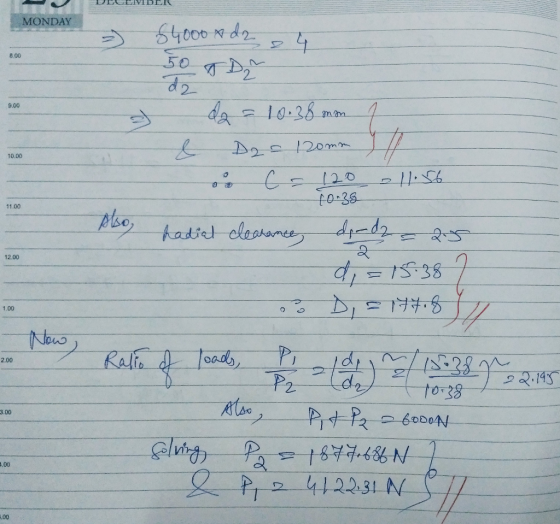

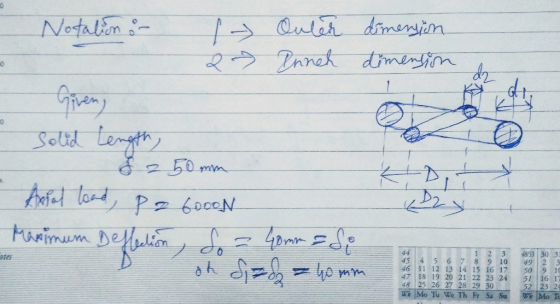

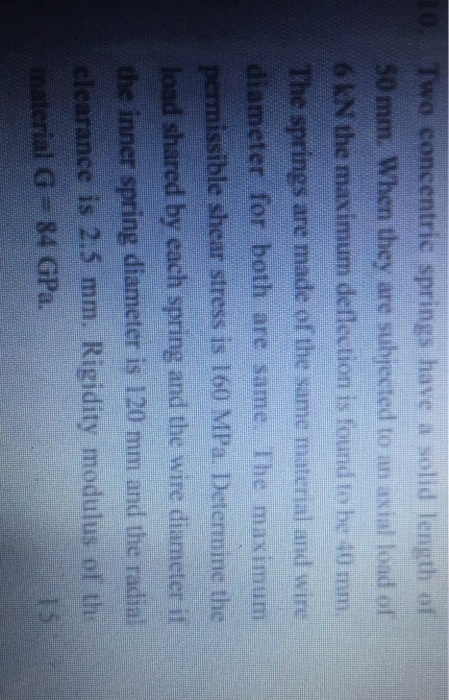

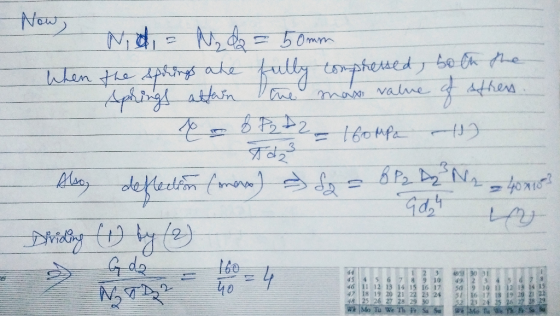

Two concentric springs have a solid length of 50 mm. When they are subjected to an...
Compute for maximum load P for concentric springs
A load P is supported by two concentric steel springs as shown. Spring 1 consists of 30 turns of 15 mm diameter
wire on a mean diameter of 80 mm. Spring 2 has 25 turns of 20 mm diameter wire on a mean diameter
of 40 mm. Compute the maximum load that will not exceed a shearing stress of 140 MPa in either spring. Use G =
76 GPa.Compute for the maximum load P in kN.
A close-coiled helical spring has a mean coil diameter 120 mm. A load of 4 kN...
A close-coiled helical spring has a mean coil diameter 120 mm. A load of 4 kN causes a deflection of 50 mm and a maximum stress of 500 MPa. Calculate 4.1. a) The wire diameter b) The number of coils c) The energy absorbed when subjected to the maximum load d) The spring stiffness 4.2. By use of a clearly labelled neat sketch, show that the deflection in a close-coiled 12] where Wis ; where W is the axial load...
15. The free end of a torsional spring deflects through 90° when subjected to a torque...
15. The free end of a torsional spring deflects through 90° when subjected to a torque of 4 N-m. The spring index is 6. Determine the coil wire diameter and number of turns with the following data: Modulus of rigidity 80 GPa ; Modulus of elasticity 200 GPa; Allowable stress = 500 MPa.
15. The free end of a torsional spring deflects through 90° when subjected to a torque of 4 N-m. The spring index is 6. Determine the coil...
1. A closely coiled helical spring made of 15 mm diameter steel wire has 15 coils...
1. A closely coiled helical spring made of 15 mm diameter steel
wire has 15 coils of 110 mm mean diameter. The spring is subjected
to an axial load of 180 N. Calculate the maximum shear stress
induced in the spring. Assume modulus of rigidity is 78 GPa.
2. A solid circular bar ABC consists of two segments, as shown
in the figure. One segment has diameter d1= 65 mm and
length L1 = 1.54 m; the other segment has...
6. It is desired to design a valve spring ofLC. engine for the following details (a)...
6. It is desired to design a valve spring ofLC. engine for the following details (a) Spring load when valve is closed 80N (b) Spring load when valve is open =100 N (c) Space constraints for the fitment of spring are Inside guide bush diameter 24 mm Outside recess diameter 36 mm (d) Valve lift 5 mm (e) Spring steel has the following properties Maximum permissible shear stress 350 MPa Modulus of rigidity =84 kN/mm Find 1. Wire diameter, 2....
Find the stress in central spring and plate displacement
Two concentric springs, the central spring being 5 mm shorter than the outer spring, are
to be loaded as shown. The outer spring consists of 40 turns of 15 mm diameter wire
coiled on a mean diameter of 100 mm. The central spring, on the other hand, has 80
turns of 20 mm diameter wire coiled on a mean diameter of 80 mm. Use 83 GPa and 76
GPa for the shear modulus of the outer and the central springs,...
Mechanical springs
It is required to design a valve spring of IC Engine with following details:Spring load = 80 N, When valve is closedSpring load = 100 N, When valve is openSpace constraints for spring fitment are :Inside guide bush diameter = 24 mmOutside recess diameter = 36 mmValve lift = 5mmSpring steel has following properties :Ultimate tensile strength = 700 N/mm2Modulus of rigidity = 8.4 × 10^4 N/mm2Spring ends are square and ground. Permissible shear stress for spring wire = 0.5 Sut. Determine:...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
QUESTION 1 A compression coil spring made of an alloy steel is having the following specifications:-...
QUESTION 1 A compression coil spring made of an alloy steel is having the following specifications:- Mean diameter of coil = 50 mm; Wire diameter = 5 mm; Number of active coils = 20; If the spring is subjected to an axial load of 164 N. Calculate the maximum shear stress (Neglect the curvature effect) to which the spring material is subjected. (units of MPa).
A 31-mm-diameter solid shaft is subjected to both a torque of T and show them on...
A 31-mm-diameter solid shaft is subjected to both a torque of T and show them on a stress element. 110 N m and an axial tension load of P 23 N as shown Determine the norma t and shear stresses at 2 Answers: MPa MPa ay MPa
A close-coiled helical spring has a mean coil diameter 120 mm. A load of 4 kN causes a deflection of 50 mm and a maximum stress of 500 MPa. Calculate 4.1. a) The wire diameter b) The number of coils c) The energy absorbed when subjected to the maximum load d) The spring stiffness 4.2. By use of a clearly labelled neat sketch, show that the deflection in a close-coiled 12] where Wis ; where W is the axial load...
15. The free end of a torsional spring deflects through 90° when subjected to a torque of 4 N-m. The spring index is 6. Determine the coil wire diameter and number of turns with the following data: Modulus of rigidity 80 GPa ; Modulus of elasticity 200 GPa; Allowable stress = 500 MPa.
15. The free end of a torsional spring deflects through 90° when subjected to a torque of 4 N-m. The spring index is 6. Determine the coil...
1. A closely coiled helical spring made of 15 mm diameter steel
wire has 15 coils of 110 mm mean diameter. The spring is subjected
to an axial load of 180 N. Calculate the maximum shear stress
induced in the spring. Assume modulus of rigidity is 78 GPa.
2. A solid circular bar ABC consists of two segments, as shown
in the figure. One segment has diameter d1= 65 mm and
length L1 = 1.54 m; the other segment has...
6. It is desired to design a valve spring ofLC. engine for the following details (a) Spring load when valve is closed 80N (b) Spring load when valve is open =100 N (c) Space constraints for the fitment of spring are Inside guide bush diameter 24 mm Outside recess diameter 36 mm (d) Valve lift 5 mm (e) Spring steel has the following properties Maximum permissible shear stress 350 MPa Modulus of rigidity =84 kN/mm Find 1. Wire diameter, 2....
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
QUESTION 1 A compression coil spring made of an alloy steel is having the following specifications:- Mean diameter of coil = 50 mm; Wire diameter = 5 mm; Number of active coils = 20; If the spring is subjected to an axial load of 164 N. Calculate the maximum shear stress (Neglect the curvature effect) to which the spring material is subjected. (units of MPa).
A 31-mm-diameter solid shaft is subjected to both a torque of T and show them on a stress element. 110 N m and an axial tension load of P 23 N as shown Determine the norma t and shear stresses at 2 Answers: MPa MPa ay MPa
